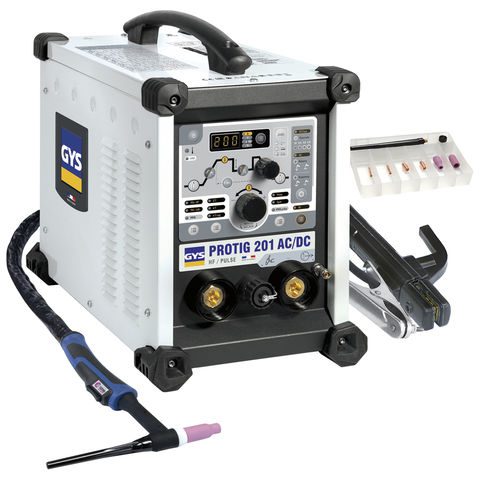

ProTIG 201 AC/DC HF FV has been designed with advanced inverter technology to provide advanced performance in both AC/DC TIG & MMA (arc welding) modes. Can be used on both 110v and 240v power supplies. Suitable for welding aluminium, mild steel, stainless, copper & titanium. Feature a Voltage Reduction Device.
- AC Easy automatically controls AC balance & fequency
- 2T, 4T & 4T LOG trigger modes (controls hot/cold current switching from torch)
- Welds standard rutile, basic (low hydrogen), stainless & cast iron electrodes
- Store up to 50 pre-set welding parameters
- Foot pedal compatible
- Delivered complete with Binzel TIG torch (4m)
- Weighs only 15kg
- Generator friendly (7.5kW)
- Protec 400 equipped provides overvoltage protection up to 400V.
In TIG mode HF start provides an easy & reliable non-contact way to create an arc removing the possibility of electrode contamination. Lift start option is available when the use of HF is prohibited. Advanced features include easy to use digital control panel allowing adjustment of all welding parameters e.g. pre- gas, upslope, pulse frequency, downslope & post-gas. Easy Pulse mode enables the user to adjust only the welding current & the machine automatically adjusts the pulse frequency (ideal for welding thinner materials). AC Easy mode provides fast set up when welding Aluminium just input electrode size & AC balance/frequency parameters are adjusted automatically.
Compatible for use with a foot pedal (sold separately). Delivered complete with professional Binzel TIG torch (4m), TIG consumables box, MMA electrode holder & earth lead.
Features of ProTIG 201 AC/DC
- 200Amp AC/DC TIG welder
- Advanced inverter technology
- Flexi Voltage works on any input 85volt – 240volt
- 10 – 200Amp welding range TIG AC
- 10 – 160Amp welding range in TIG DC
- Both HF & Lift start modes
- Adjustable pulse frequency (0.2 – 20Hz)
- Easy Pulse automatically selects ideal pulse frequency
The ProTIG 201 AC/DC HF FV also offers a fully functioning MMA (arc) machine with advanced features including adjustable; MMA pulse mode (ideal for vertical up welding), Hot Start (for easy arc striking), Arc Force (electronic assistance in maintaining a strong arc) as well as Anti-Sticking technology preventing electrodes sticking to the workpiece.
