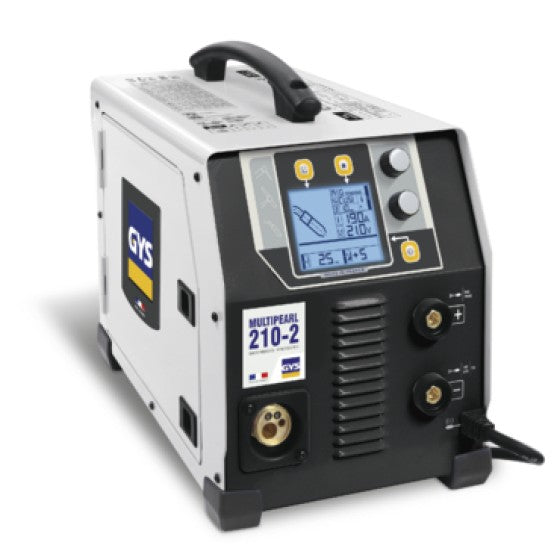

Discover the GYS Multi Pearl MIG 210-2 inverter, a top choice in the automotive sector for its versatile multi-process capabilities. With preset welding parameters for MIG/MAG, TIG DC, and MMA, achieving precise welds is effortless. Simply input material details and let the machine optimize settings for perfect results, or customize manually for ultimate control.
Benefit from advanced features like Power Factor Correction, ensuring stable welding current even on extended leads, and Protec 400 for resilience against voltage fluctuations, making it suitable for generator use. Its flexibility extends to voltage compatibility, working seamlessly with both 230V 16A and 110V 32A plugs, with auto-sensing capability for voltage drops up to 100m.
Compact and efficient, this machine is ideal for workshops and garages, accommodating 1 or 5kg wire spool sizes. Experience precision welding with ease and versatility, tailor-made for your automotive needs.
Package Includes
- MULTIPEARL 210-2
- 3 MTR Mig Torch
- Earth Cable
- Electrode Cable
Features
- Multi-process welder featuring advanced inverter technology, offering MIG/MAG, TIG, and MMA capabilities from a single machine
- MIG/MAG functionality compatible with 1kg and 5kg wire reels, with an industrial wire feed motor ensuring consistent wire feed speeds
- Choose between manual or Synergic mode for MIG-MAG welding, with automatic adjustment of wire speed and voltage
- TIG welding capability with lift start, easily activated by touching tungsten to the workpiece, and compatible with euro connecting TIG torch for automatic shielding gas system
- MMA (Stick welding) supported with included electrode holder lead, capable of welding various electrode types up to Ø5mm
- Hot start and arc force features for easier stick welding, adjustable from 0 to 100%
- Synergic MIG function automatically adjusts wire speed and voltage based on input settings such as wire type, diameter, metal thickness, gas used, and welding position
- LCD screen provides clear display of weld settings for easy adjustment
- Power Factor Correction (PFC) technology ensures machine efficiency, offering 30% energy savings
- Flexible voltage capability allows operation on power supplies ranging from 85V to 265V
- Combination of PFC and flexible voltage technologies enables usage with extension leads up to 100m in length
- Factory-tested against overvoltage up to 400V for reliability
- Generator-friendly operation when used with a generator of suitable size and specifications
- Suitable for wire sizes ranging from 0.6mm to 1.0mm and gasless wire sizes from 0.9mm to 1.2mm
Technical Spec
Input Supply: 110V
- Fuse Amps: 32A
- MMA Amperage Range: 20-130A
- TIG Amperage Range: 20-160A
- MIG Amperage Range: 20-150A
- 60% Duty Cycle: 110A
- Duty Cycle: 150A @22%
- Dimensions / Weight: 25 x 45 x 35 cm | 16Kg
- Generator Requirements (+/-15%): 7.5kW | 9kVA
Input Supply: 230V 1
- Fuse Amps: 16A
- MMA Amperage Range: 20-200A
- TIG Amperage Range: 20-200A
- MIG Amperage Range: 20-200A
- 60% Duty Cycle: 130A
- Duty Cycle: 200A @ 20%
