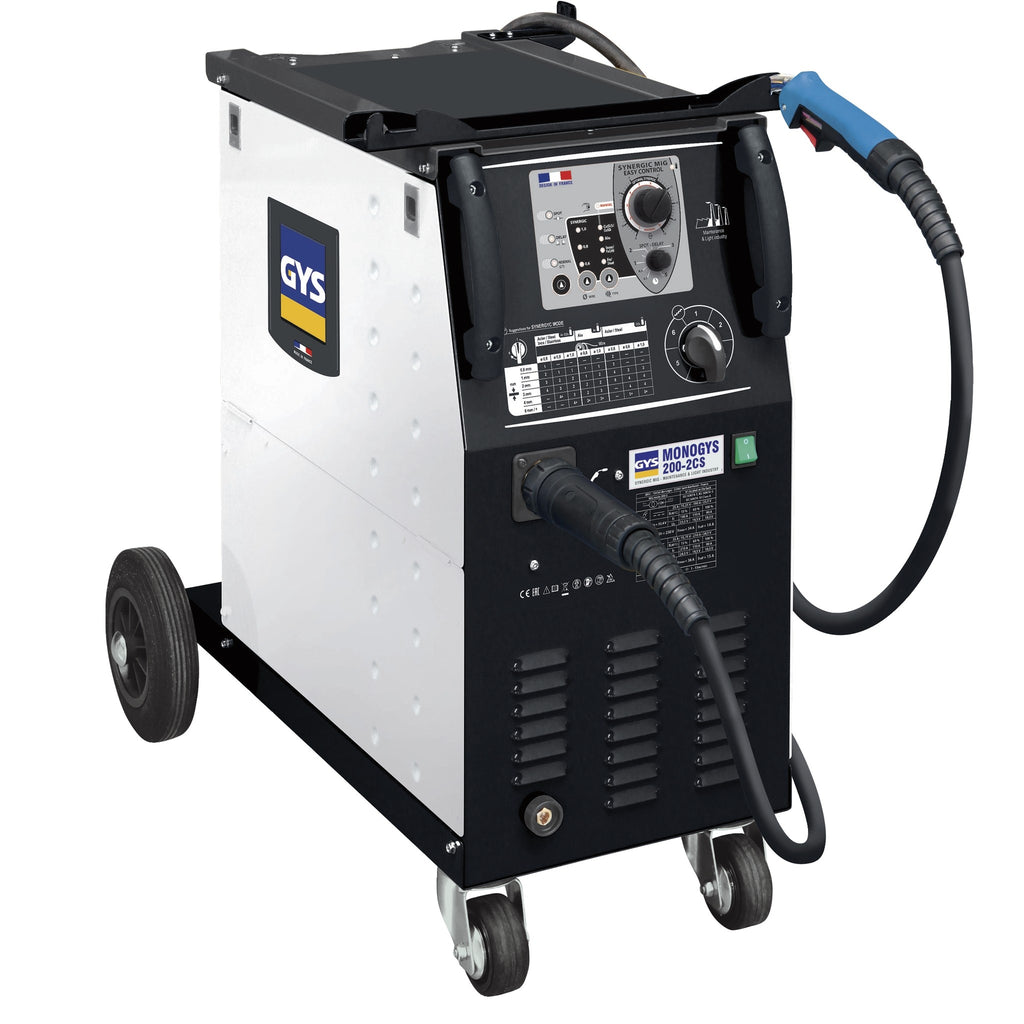

GYS Monogys 200-2CS welder is 200 Amp, single phase MIG welder with 4 roll wire feed system and semi-synergic control panel. Controlled by microprocessor, set up is quick and easy with the machine controlling wire speed, this function avoids complex set up and ensures optimum welding performance. The welder has a simple set up program with its semi-synergic interface programs for mild steel, stainless steel and aluminium.
Product
In « Synergic » mode, setting is fast and simple. The Micro processor controller will automatically set the optimum wire speed. This avoids complex set-up and ensures optimum welding parameters.
High Performance Single Phase
Rectified current smoothed by capacitors giving produces: • Optimum fusion • Reduced spatter
3 Functions Available
- Normal
- Spot: Spot welding with adjustable spot diameter
- Delay: « Chain spot » function (Spot welding with time adjustment between 2 spots).
Synergic Mode For Easy & Quick Settings
With this function, the wire speed setting is Automatic. Simply select: • the wire type • the wire ø • the power
Ideal for:
- Maintenance
- Agricultural Repair
- Automotive Repair & General Fabrication
Technical Specifications
Amp Range - 30A - 200A
Duty Cycle - 15% @ 200A / 40C
Generator Friendly? (kVA) - Yes / 7.5kVA
Wire Feed - 2 Roll
Weldable Materials - Mild Steel & Stainless Steel
Weight & Dimensions - 70KG / 470MM X 770MM X 790MM
Voltage Steps - Semi-Synergic Control with 6 Voltage Steps
Wire Reel Capacity - 5KG (200MM) & 15KG (300MM)
1 x 250A 3M Torch
2m Earth Clamp
