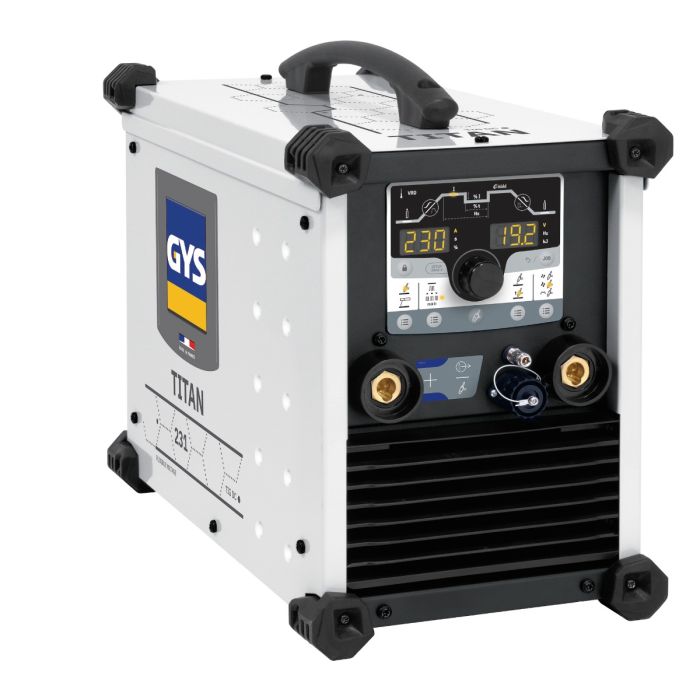

The TITAN 231 DC FV is a 230A single-phase TIG power source crafted for professional use, featuring IP23S protection to withstand challenging operating conditions. With advanced technology ensuring a consistently stable arc and superior weld quality, its high duty cycle makes it well-suited for industrial and robotic applications.
2 Welding Processes
• DC Standard: smooth current welding on most ferrous materials.
• DC Pulsed up to 2 kHz: controls the temperature of the molten bath, limits deformation and enables the assembly of thin sheet metal of thicknesses as low as 0.3 mm.
• Standard MMA: rutile and basic electrodes (up to Ø 5 mm).
• MMA Pulsed up to 500 Hz: facilitates welding in vertical upward position (pipes/pipelines, etc.).

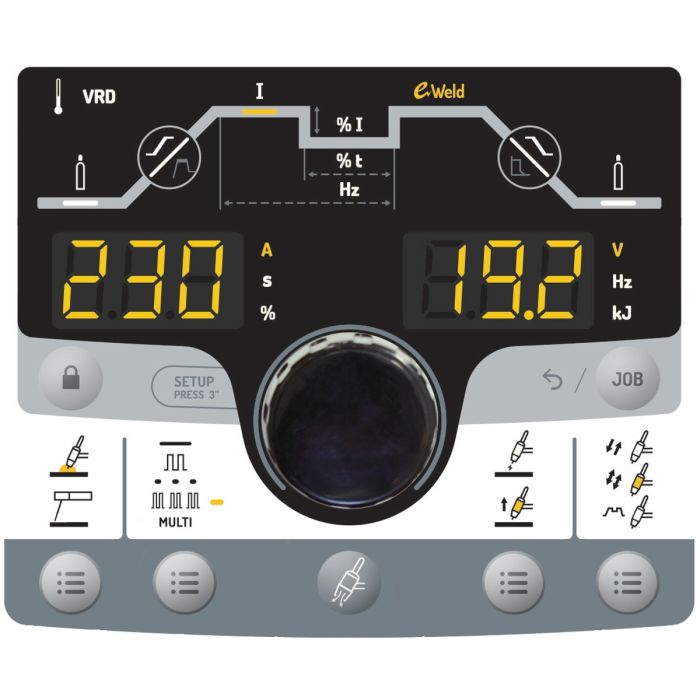

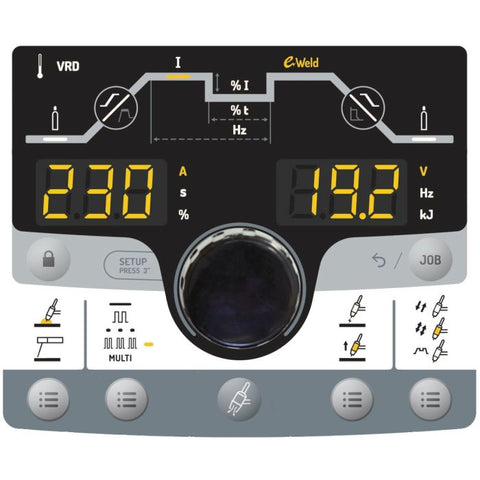

Optimised Settings
• TIG 100% duty cycle: 200 A
• 4 aiming modes
• E-Weld mode ensures that the welder maintains welding power regardless of the position of the torch in relation to the workpiece.
