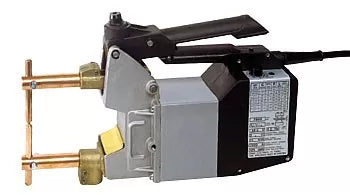

Tecna 7900/110 Hand Operated Spot Gun Item 2 KVA 110V Air Cooled
The Tecna 2kVA Spot Welding gun is a handy 110v hand spot welder. With a 2kVA output, this gun is suited to professional applications, being semi-automatic and suitable for up to 2mm + 2mm bodyshop situations. Providing 2kVA at 50% duty cycle, this portable spot welder features an electric timer, high pressure (minimum force) handle and a heavy duty “class F” transformer.
Features
- Light, compact and proved spot gun for car body repair.
- Synchronous built-in electronic timer with SCR from 2 to 65 cycles.
- circuit starts the timer only when there is a proper passage of current, which enables to perform on oxidised sheets, on surfaces with paint residues or on black sheets.
- Force adjustment with scale in daN.
- Additional arm couplings to provide larger opening between arms.
- Gun has adjustable calibrated force
- All transformers are coated with F class insulation material that does not dry out and become brittle. Test are made using 4000 volts.
- Supplied complete with 125 mm arms.
- Large choice of arms and electrodes.
Specifications
| Input Voltage | 110V |
| Power @ 50% | 2 kVA |
| Maximum Welding Power | 13 kVA |
| Welding Capacity | 2 + 2 mm |
| Electrode Force Short Arms (daN) | 120 mm |
| Weight Kg | 10.5 |
