Hypertherm Powermax85 SYNC plasma cutter

£ POA

Please call for best price.

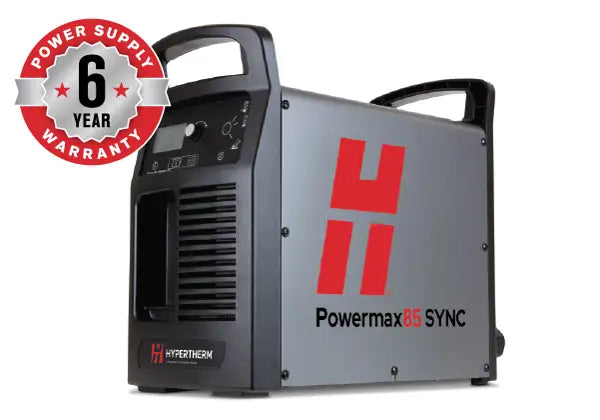

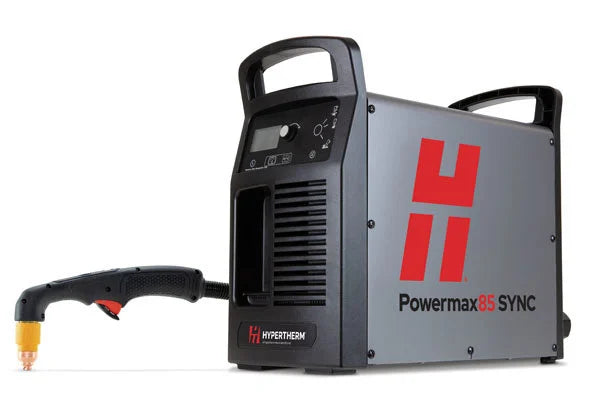

Powermax85 SYNC plasma cutter

The Powermax85 SYNC^® is a next-generation professional grade air plasma cutter that dramatically simplifies system operation for gouging and recommended cutting up to 25 mm (1″). Features automated system process set-up via advanced RFID-enabled SmartSYNC^® torches and a revolutionary single-piece cartridge consumable that provides trackable utilization data. The Powermax85 SYNC maximizes productivity through reductions in downtime, optimized cut quality performance and streamlined consumable inventory management.

Applications

Drag cutting

For dragging the torch directly across the work piece

Extended reach cutting

For improved visibility and accessibility when cutting in confined spaces

Extended reach gouging

For improved visibility and accessibility when gouging in confined spaces

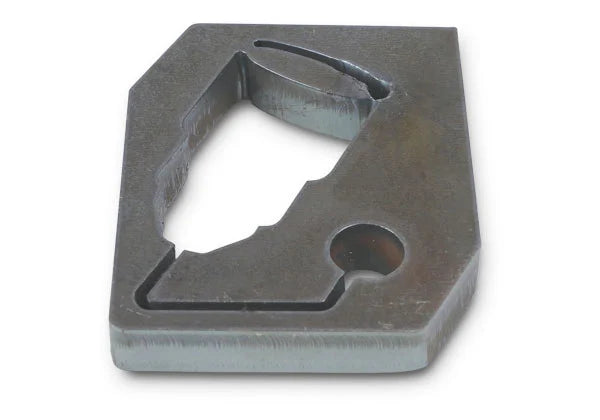

Fine feature cutting

For narrow kerf width with minimal dross and heat affected zone

Mechanized cutting

For portable automation and table cutting

Unsupported applications

Marking

For scoring, indicating part identification, hole or weld locations

Try Powermax45 XP

Precision gouging

Try Powermax45 XP

For spot and tack weld removal at very low output current (<25 A)

Cut capacity

Capacity	Thickness	Cut speed
Recommended	25 mm (1″)	500 mm/min (20 ipm)
	32 mm (1-1/4″)	250 mm/min (10 ipm)
Severance (hand cutting)	38 mm (1-1/2″)	125 mm/min (5 ipm)
Pierce*	20 mm (3/4″)

*Pierce rating for handheld cutting, or mechanized cutting with programmable torch height control.

Maximum removal gouging

Capacity	Metal removal rate	Gouge profile
Typical gouge	8,2 kg (18.2 lbs.) per hour	3,5 mm D x 6,6 mm W (0.14″ D x 0.26″ W)

General specifications

Input voltages	CSA 200–480 V, 1-PH, 50/60 Hz 200–600 V, 3-PH, 50/60 Hz CE 380/400 V, 3-PH, 50/60 Hz
Kilowatt output	12.2 kW
Input current	CSA 200/208/240/480, 1-PH 70/68/58/29 A @ 12.2 kW 200/208/240/480/600 V, 3-PH 42/40/35/18/17 A @ 12.2 KW CE 380/400, 3-PH 20.5/19.5 A
Output current	25–85 A
Rated output voltage	143 VDC
Duty cycle @ 104° F	CSA 60% @ 85 A, 230–600 V, 3-PH 60% @ 85 A, 480 V, 1-PH 50% @ 85 A 240 V, 1-PH 50% @ 85 A, 200–208 V, 3-PH 40% @ 85 A, 200–208 V, 1-PH 100% @ 66 A, 230–600 V, 1/3-PH CE 60% @ 85 A, 380–400 V, 3-PH 100% @ 66 A, 380–480 V, 3-PH
Open circuit voltage (OCV)	CSA: 305 VDC CE: 270 VDC
Dimensions with handles	483 mm D; 233 mm W; 430 mm H (19″ D; 9.2″ W; 17″ H)
Weight w/7.6 m (25′) torch	CSA: 32 kg (67 lbs.) CE: 23.5 kg (52 lbs.)
Gas supply	Clean, dry, oil-free air or nitrogen
Optimum inlet gas pressure	7.6–8.3 bar (110–120 psi)
Minimum inlet gas pressure	5.2 bar (75 psi)
Recommended inlet gas flow rate	Cutting: 210 I/min @ 5.9 bar (450 scfh, 7.5 scfm @ 85 psi) Gouging: 210 I/min @ 4.8 bar (450 scfh, 7.5 scfm @ 70 psi)
Input power cable length	3 m (10′)
Power supply type	Inverter–IGBT
Engine drive requirement	20 kW for full 85 A output
Electrical efficiency	91.9%
Certifications	CSA – for use in the Americas and Asia, except China CE – for use in Europe, Australia & New Zealand - RCM, Serbia, UK - UKCA, Ukraine, and other countries where accepted. CCC – for use in China
Warranty	Power supplies have a 3-year warranty and torches a 1-year warranty
