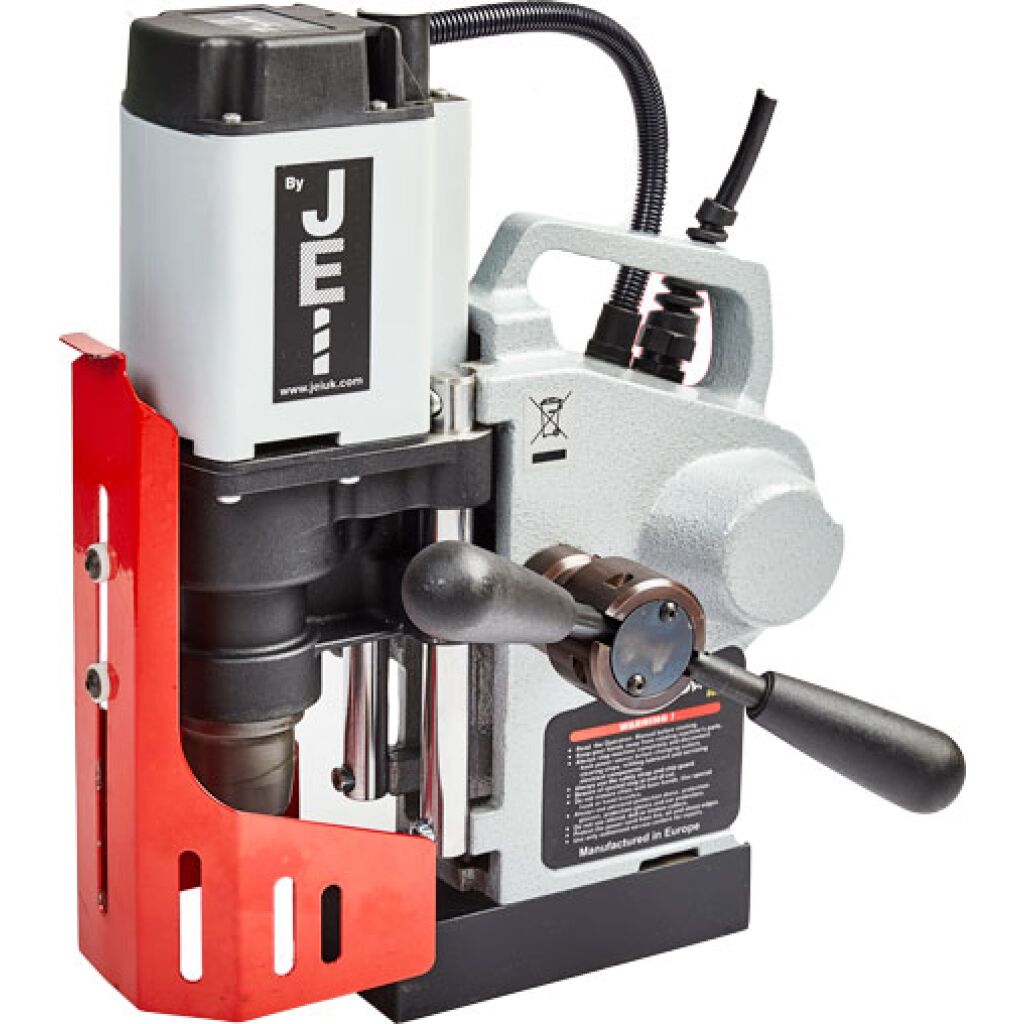

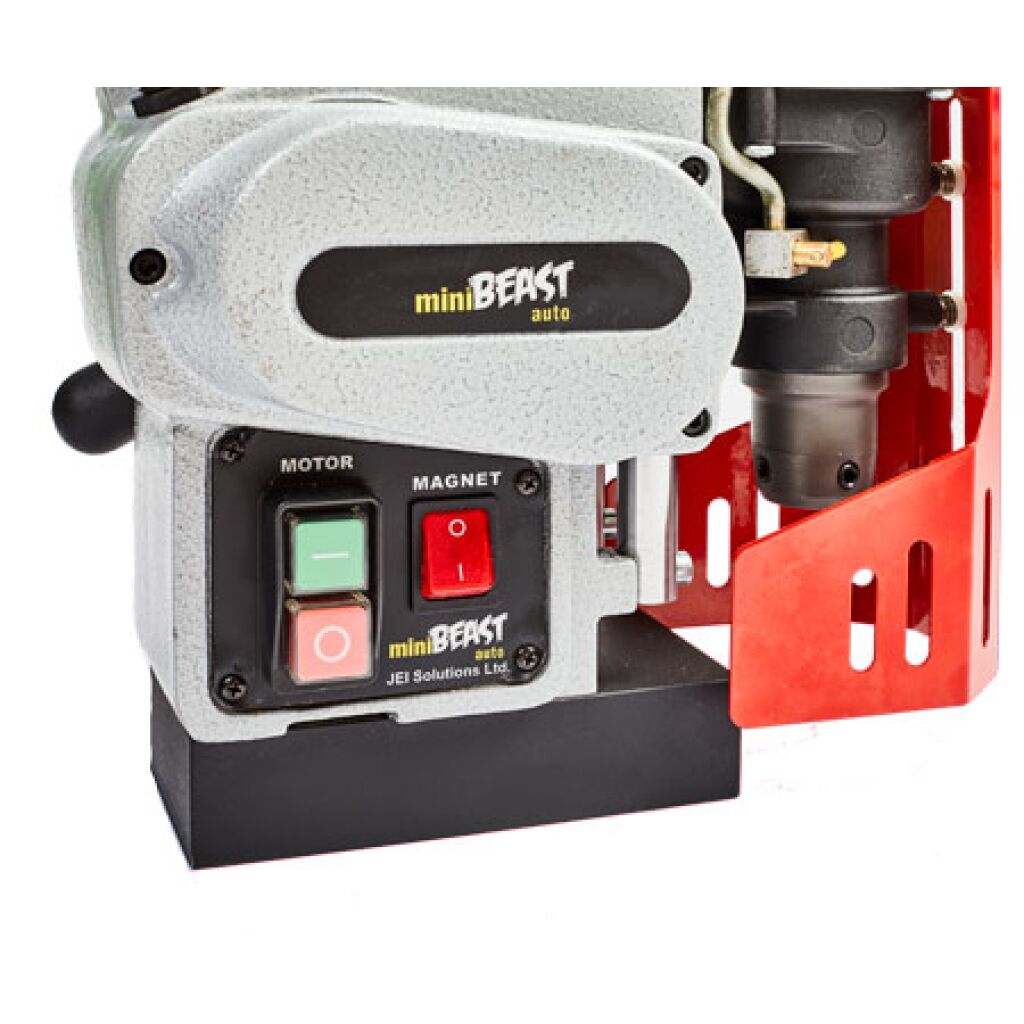

The Mini Beast Auto. The world's smallest Automatic Magnetic Drilling Machine With all the Features of the Minibeast.
Features & Benefits:
-
Compact size and weight - ideal for site work.
-
Internal coolant reservoir - ensuring maximum cutter life.
-
Self correcting slide rails - for maintenance free operation.
-
Light-weight - only 13kg.
-
Easier operation – lets the machine control the task.
-
Increased productivity – one operator can control several machines at one time.
-
Improved tool life – let the machine do the cutting. More holes per tool with better hole results.
-
Protects against misuse of machine and wearing parts – no manual overloading of the motor.
-
Longer overall life of the machine.
Technical Specification
Model-Minibeast Auto
Weight-13kg
Cutter Capacity-36mm Ø x 2" depth of cut
Twist Drill Capacity-12mm with twist drill set
Motor-1000 watts
Height Min/Max-Min 307mm / Max 377mm
Length-291mm
Width-221mm
Motor Travel-70mm
RPM-Single Speed 350 RPM (loaded)
Magnetic Base Dimensions-80mm x 160mm
Magnet Deadlift (on 25mm plate)-980kg
Noise Level-Does not exceed 95dB
Vibration Level-Does not exceed 2,5m/s2
Voltage-110v / 240V
