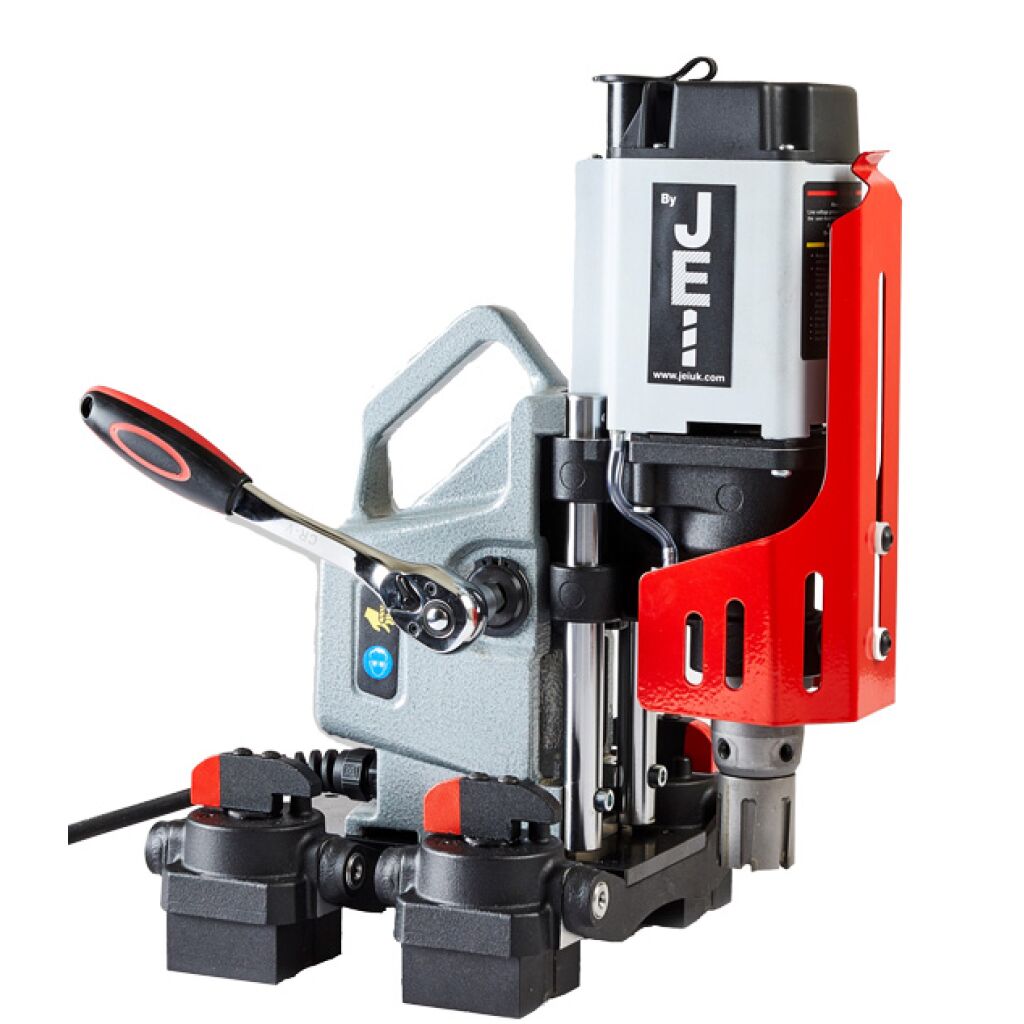

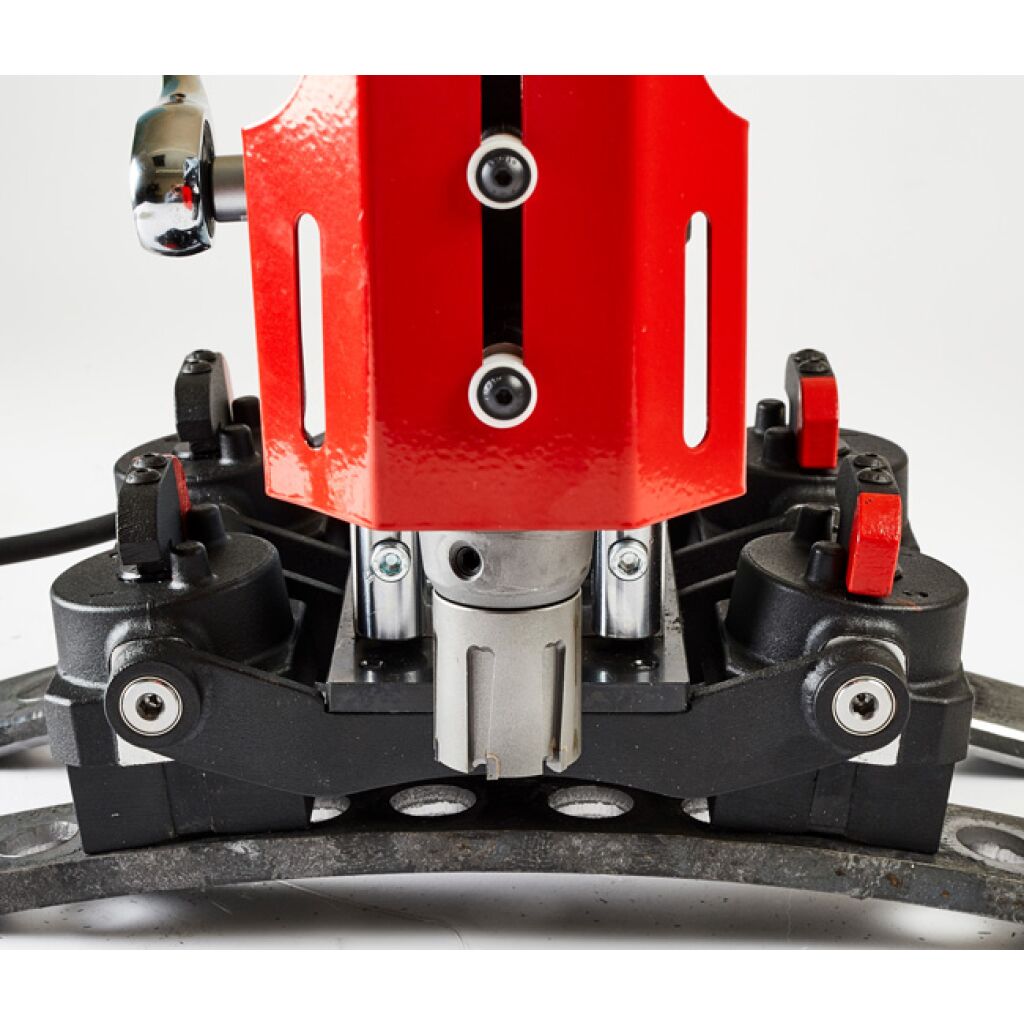

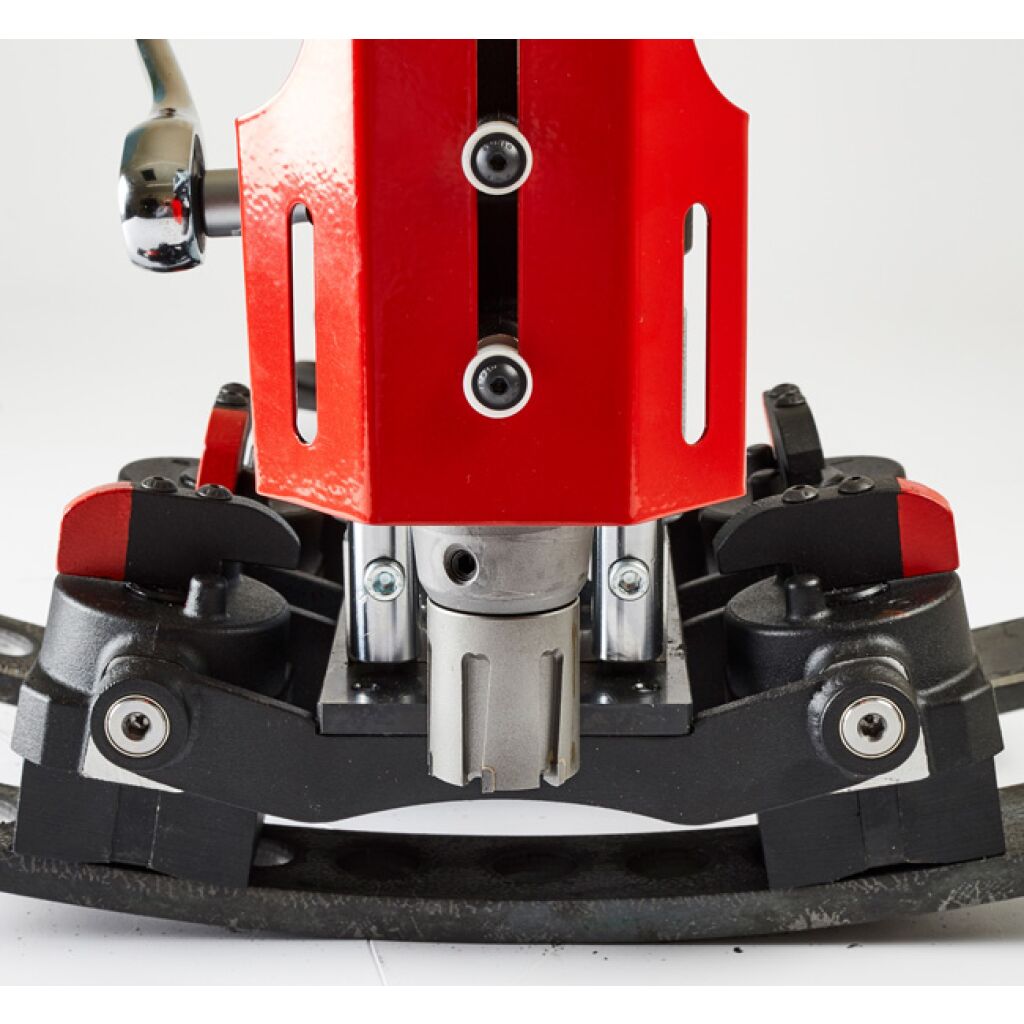

FOR DRILLING PIPES, CONVEX AND CONCAVE SURFACES.
- Easily swivels into position.
- Four permanent magnetic bases.

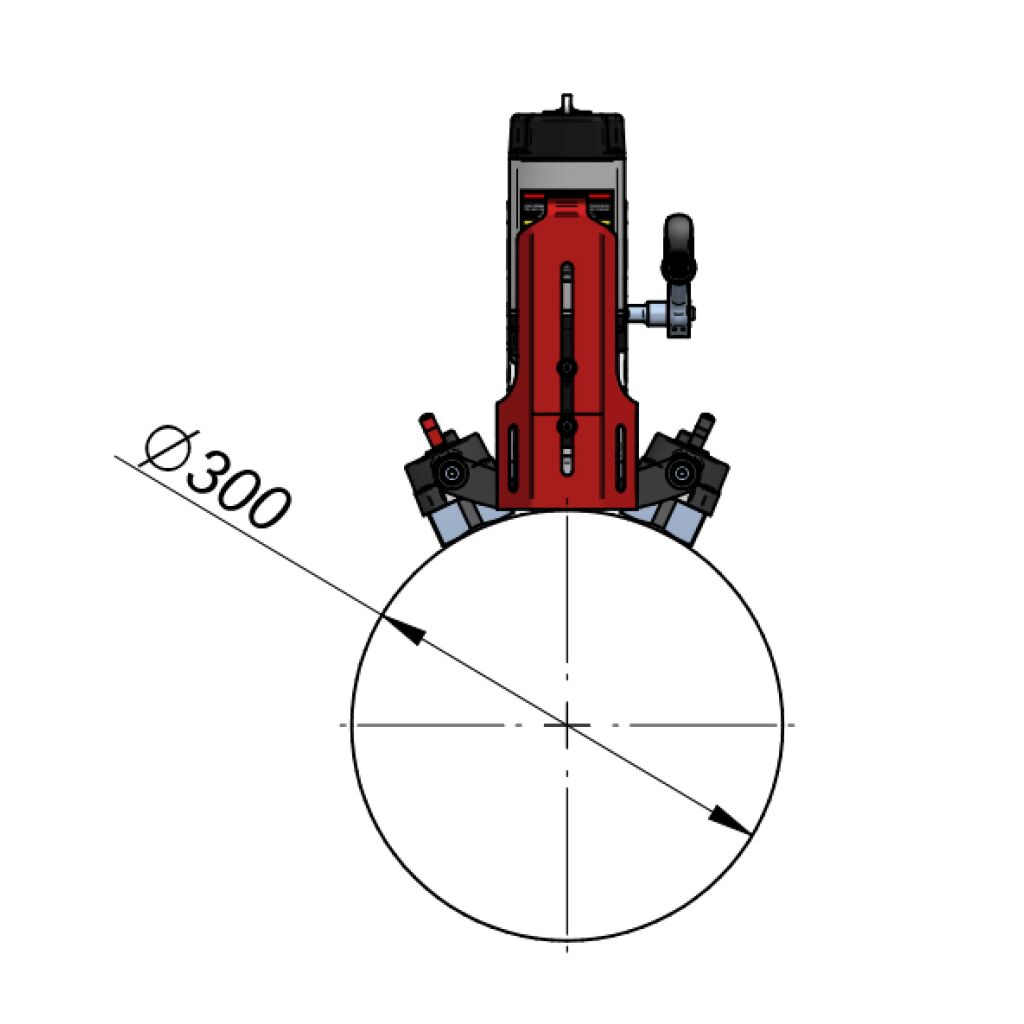

- Holds onto pipes with an outside radius of ØR300 mm.

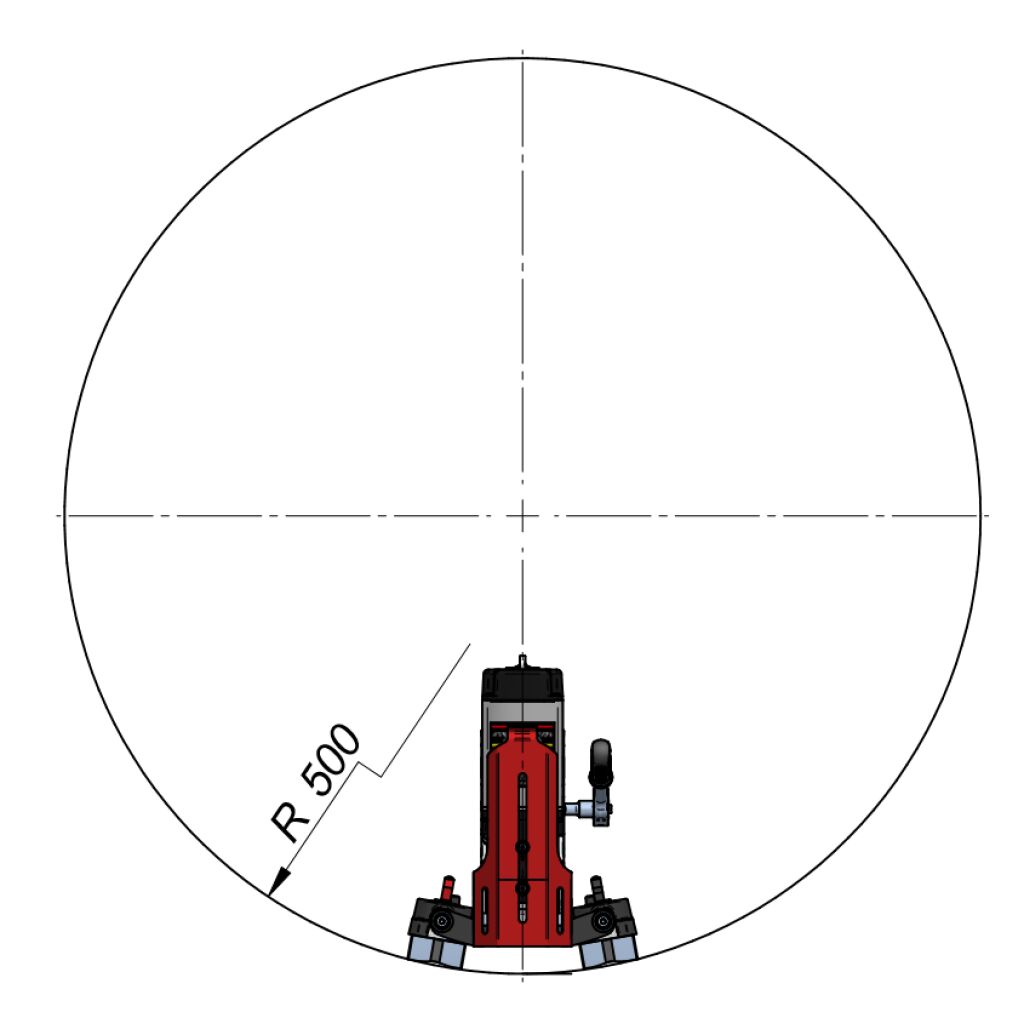

- Holds onto pipes with an inside radius of ØR500 mm.
- Compact size and weight – ideal for site work.
- Internal coolant reservoir – ensuring maximum cutter life.
- Self correcting slide rails – for maintenance free operation.
- Light-weight – only 15kg.
- Hidden motor cable – for added protection.
- Detachable feed ratchet handle.
- C/w 2 x FOC cutters (18mm & 22mm)
Technical Specification
Weight-15Kg
Voltage-110V or 240v
Max Stroke-55mm
Cutter Capacity-35mm
Magnetic Base-L x W 250 x 230mm
Magnet Deadlift-600Kg on 1” plate
Min. Material Thickness-10mm
Min. Pipe Dia (outside)-300mm
Min. Pipe Dia (inside)-100mm
