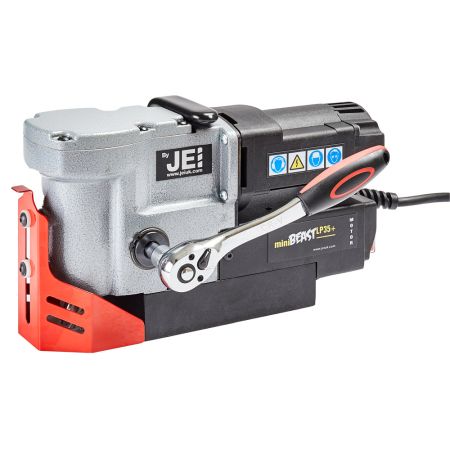

Ultra low working height magnetic drilling machine
-
Ultra low working height only 176mm
-
Ultra low weight of just 9.5kg
-

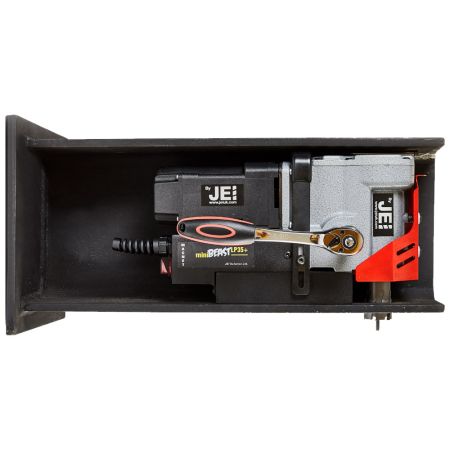

Compact design perfectly suited for space restricted areas
-
Cutting Capacity of 36mm
-
Ability to use standard length (35mm) TCT Cutters - Ideal for Bridgework
-
Positive quill Drive Arbor for close tolerance holes
-
Accepts solid twist drills on 19mm Shank up to 12mm Diameter
-
Integrated Safety Guard
-
Detachable feed ratchet handle can be fixed on either left or right side
Lifting handle for easy transportation
Specifications
| Weight | 9.5kg | ||
| Cutter Capacity (diam) | 35mm | ||
| Max Cutter Length | 55mm | ||
| Twist Drill (min-max) | 12mm | ||
| Countersink | 30mm | ||
| Motor Power (Watts) | 920W | ||
| Min/Max Height | 176mm fixed | ||
| Total Travel (Stroke) | 70mm | ||
| No. of Geared Speeds | 1 | ||
| Motor Speed (no load) RPM | 520 | ||
| Magnet Power (on 25mm plate) | 910kg | ||
| Spindle | 19mm weldon | ||
| Voltage | 110V or 240V | ||
| Noise Level | < 90dB | ||
