Energy-saving indoor ventilation system

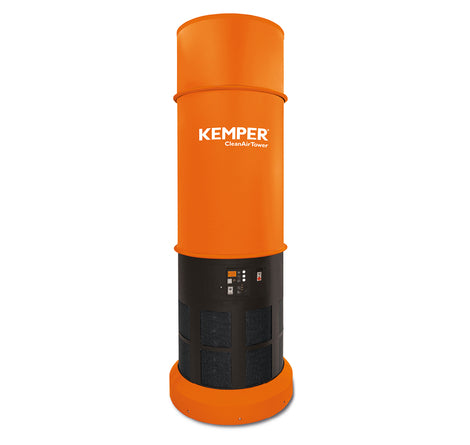

The ventilation system CleanAirTower is used wherever local extraction does not work or is insufficient. It effectively protects employees and machines from fine dust. The purified air is recirculated. The device hardly creates any air turbulence, ensuring that no dust is distributed into clean areas. The CleanAirTower functions according to the displacement ventilation principle recommended by health and safety bodies.
Applications
- Workshops where local exhaust ventilation is not possible
- To complement local exhaust ventilation systems
- Environments with changing sources of smoke and dust
- Workstations, Workshops, Logistic and distribution centres
Benefits
- Low risk potential due to foreign bodies
- Effective energy reduction of possible sparks and particles by the pinball method with 7 or more collision points
- Effective efficiency through tornado principle
- Minimization of heating costs due to air recirculation and air distribution
- Enormously long filter lifetime due to optimised air flow
- Increased safety with contamination-free dust disposal
- Cost-effective installation or retrofit, as no ductwork is needed
- New head element can be retrofitted to existing systems
- Safe transportation and easy installation by crane eyes
- Permanent operation by means of automatic dust disposal in dust collection bin
Properties
- Automatic filter cleaning
- Lifting eyes
- Effective baffle plates for spark pre-separation
- KEMPER-Cloud connection via mobile network*
- Contamination -free dust disposal in one-way containers.
- Optimised airflow
- Pinball method and tornado principle
- Displacement flow principle, recommended by health and safety bodies
- System barely generates air turbulence
Accessories
- AirWatch
Mode of Operation
- Extraction of ambient air via an integrated ventilator
- The cleaned air is returned to the workspace by low level outlets
- The warm cleaned air directs the welding smoke again towards the inlet grills and so, a slow air circulation and at the workstations is created.
Filter
Filter stages-1
Filter method-Cleanable filter
Filter cleaning method-Rotating nozzle
Filter surface-20 m²
Number filter elements-3
Filter surface total-60 m²
Filter material-PTFE-membrane
Filter efficiency-> 99.9 %
Dust classification-M
Basic data
Extraction capacity-6000 m³/h
Max. fan performance-10800 m³/h
Diameter-1172 mm
Weight-666 kg
Motor power-5.5 kW
Power supply-3 x 400 V / 50 Hz
Rated current-11 A
Control voltage-24 V, DC
Noise level-72 dB(A)
Additional information
Fan type-Radial fan, direct driven
Compressed air supply-5 - 6 bar
