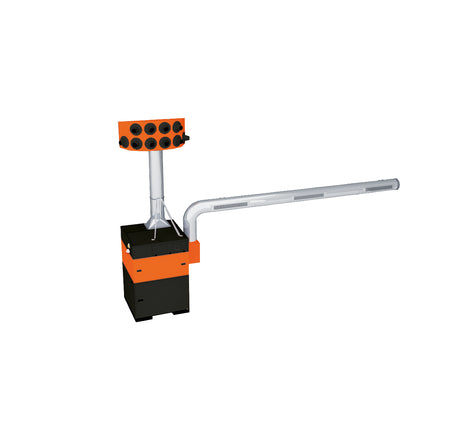

Indoor air cleaning ventilation system with a simple stand-alone installation and high performance nozzles
KemJET is a central ventilation system for workshops where local exhaust ventilation systems are not feasible or it is used to supplement such systems. It effectively protects employees and machines from fine dust. The heated, purified air remains in the room, so that in the winter heat from the heating system is retained. This, way large energy cost savings can be achieved.
Applications
- Workshops where local exhaust ventilation is not possible
- To complement local exhaust ventilation systems
- Environments with changing sources of smoke and dust
- For large work pieces or where work positions are well separated
Benefits
- Cleaned air distribution adaptable to the location of the plant as high-performance nozzles are adjustable by 30 degrees
- Contamination-free dust collection due to compressed air fixation of dust collection containers
- Uninterrupted continuous operation due to automatic differential pressure-controlled filter cleaning
- Various outlet heights possible by using different pipe lengths
- Little noise emission due to a low noise level
- Heating costs minimised by air recirculation
- Quick and simple to set up
- Convenient operation due to intelligent control via touch screen with diagnostic system
Properties
- Automatic filter cleaning, pressure-controlled
- Control via touch screen
- KemTex® ePTFE filter cartridges
- Dust collection container with pneumatic lifting device
- High-performance nozzles adjustable by 30 degrees
Accessories
- Automatic dust disposal - DustEvac
- External On/Off
- AirWatch
- Stanchion support
- Wall-mounting kit
Mode of Operation
- Extracts contaminated warm air through exhaust pipes on the left and right of the plant
- Contaminated air is purified in the filter system
- High-performance nozzles blow the purified, clean air out above the extraction pipes
- The clean air is distributed throughout the room and the veil of smoke disappears
Filter
Filter surface total-60 m²/90 m²/120 m²
Basic data
Extraction capacity-6000 m³/h/9000 m³/h/13000 m³/h
Max. fan performance-5500 m³/h/9000 m³/h/12000 m³/h
Height-Variable
Measurements filter unit-1.413 x 1.413 x 2.110 mm/1.413 x 1.864 x 2.110 mm/2.375 x 1.864 x 2.110 mm
Measurements blow-out unit-1.670 x 730 x 760 mm/1.670 x 730 x 760 mm/1.905 x 990 x 860 mm mm
Gross weight extraction unit-630 kg/790 kg/1230 kg
Total weight-900 kg/950 kg/1450 kg
Motor power-4 kw/5.5kw/7.5 kW
Power supply-3 x 400 V / 50 Hz/
Rated current-7.8 A/10.7 A/13.8 A
Noise level-65 dB(A)
Additional information
Fan type-Radial fan, belt driven
Nozzles-10 x 200 mm/12 x 200 mm/10 x 250 mm
Length of extraction duct-6000 mm/2 x 6.000 mm/2 x 9.000 mm
Supports (set)-99 8103 468/99 8103 479/99 8103 470
Air nozzles, range-approx. 30 m/approx. 38 m/approx. 45 m
Wall mounting (set)-99 8103 465/99 8103 466/99 8103 467
| Product Code | Product Variants |
| 99 880 0407 | Max. Extraction Capacity 6000 m³/h |
| 99 880 0401 | Max. Extraction Capacity 9000 m³/h |
|
99 880 0414
|
Max. Extraction capacity 13000 m³/h |
