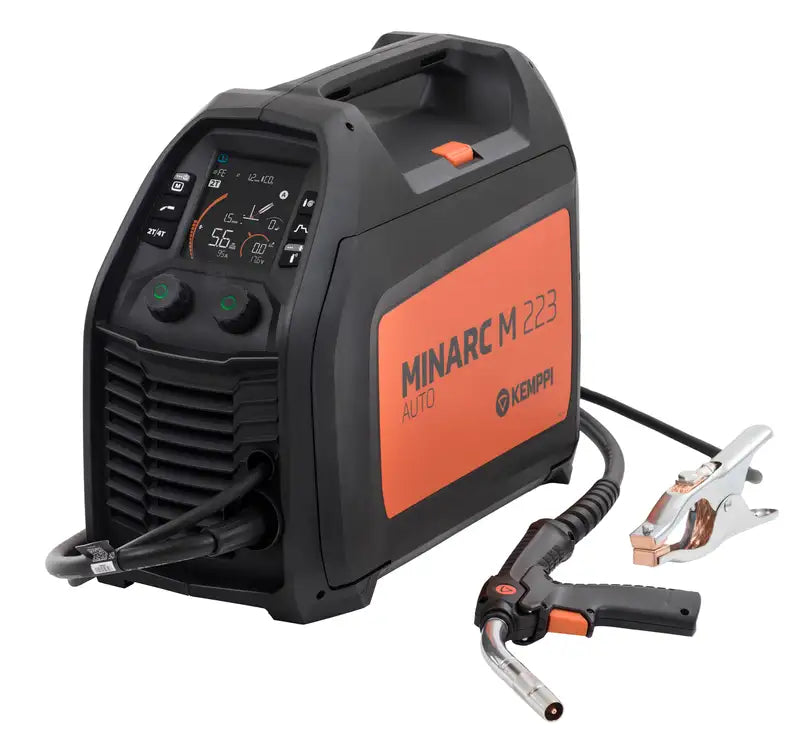

Kemppi MIM223GM MINARC M 223 AUTO GM
All MIG Packages incl. Mig Torch (fixed), Earth Return, Gas Hose and Regulator, Torch Spares Kit, Mig Wire 5.0K Reel, 0.6/0.8mm feed kit, Pair of Welding Gauntlets, Anti-spatter Spray, Tip Dip, Mig Pliers, Plug 230V 16Amp with 13Amp Adaptor Lead or 415V 16/32A Plug 4/5 Pin.
3 Years Warranty Pre-registered
Premium portable 110/240V MIG/MAG welding machine providing 220 A @ 20% duty cycle from a 1-phase mains supply and weighs 12 kg. Manual and synergic welding options available. The power source can be used with a generator and it includes five memory channels. Compatible with a wide range of materials, including steel (Fe), stainless steel (Ss), aluminum (Al), CuSi, Flux cored and Gasless filler wires.
Features
- Powerful 220 Amps MIG/MAG PFC, 1-phase, 110V/120V and 220V/240V
- Professional welding quality – Digital arc control
- Extensive welding program menu for Fe, Ss, Al, CuSi, Flux cored & Gasless filler wires 0.6/0.8/0.9/1.0/1.2
- Euro-connector and pulse (M 223P models)
- Water cooler option Minarc Cooler 05
- Five memory channels

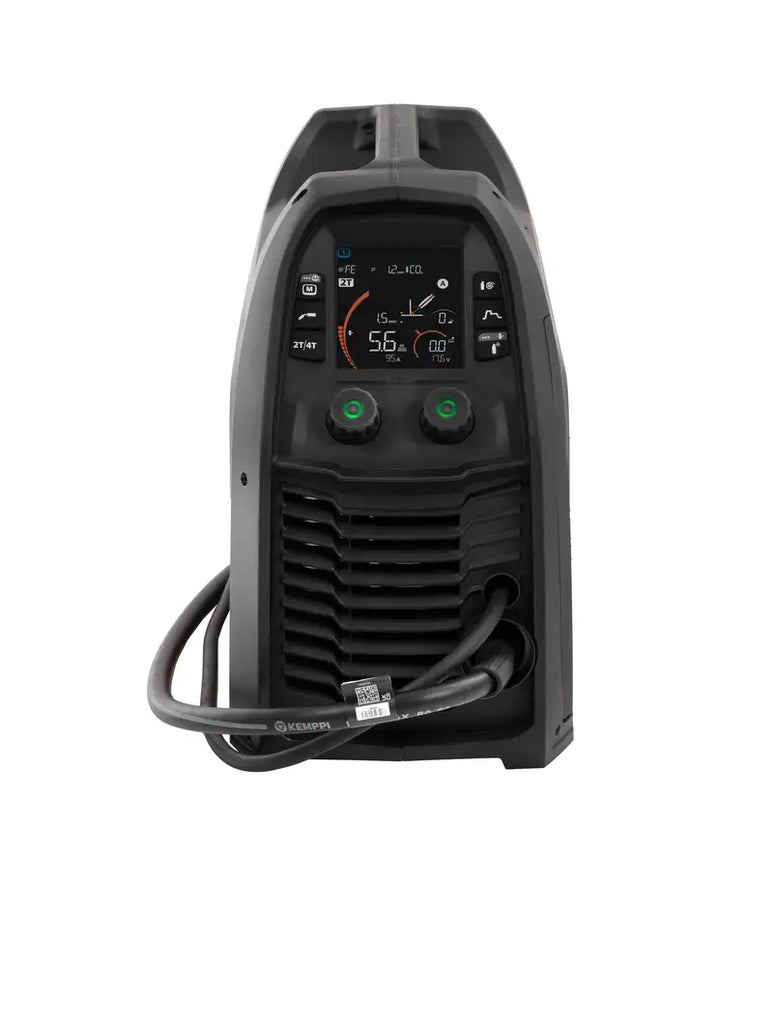

- Color LCD graphical guidance display
- Wire inch, Gas purge, Hot start, Crater fill, Post Current features included

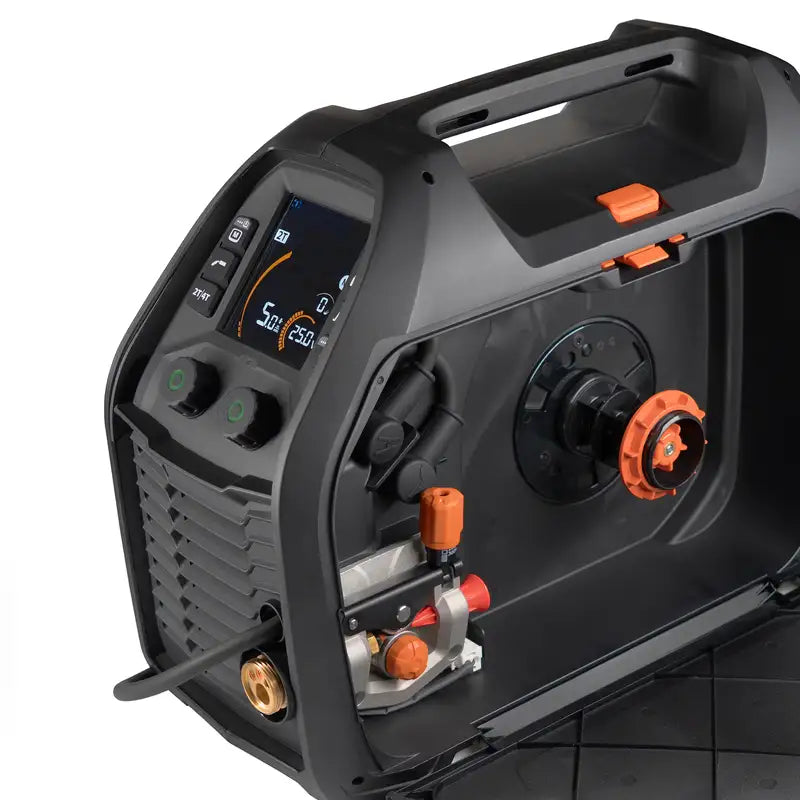

- Durable all metal wire drive chassis and twin groove drive roll
- Suitable for use with long power cables up to 100 m

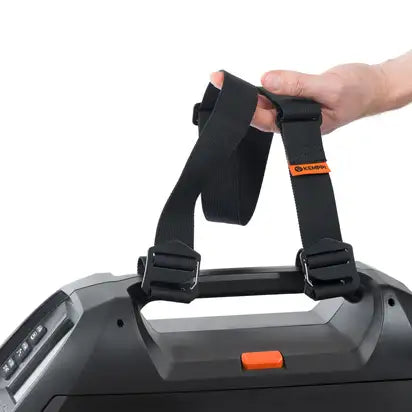

- Strong, robust and light weight
- Two cart options MST400 and T22M
- Ready to weld sales package
- Reliable Finnish quality
Technical Data
| Mains connection voltage | 220...240 V ±10 % |
| Mains connection voltage (MV low range) | 110...120 V ±10 % |
| Mains connection phases | 1~50/60 Hz |
| Mains connection cable type | 3G, H07RN-F |
| Mains connection cable size | 2.5 mm² |
| Rated maximum input power [S1max] | 7 kVA |
| Mains fuse | 16 A |
| Mains fuse (@MV low range) | 15 A |
| Idle state power consumption [P1idle] | 10 W |
| Output, duty cycle % at rated max. current, MIG | 20 % |
| Output at +40 °C, rated max current, MIG | 220 A |
| Output at +40 °C, 60% MIG | 160 A |
| Output at +40 °C, 100% MIG | 140 A |
| Output, duty cycle % at rated max. current, MIG (@MV low range) | 20 % |
| Output at +40 °C, rated max current, MIG (@MV low range) | 120 A |
| Output at +40 °C, 60% MIG (@MV low range) | 95 A |
| Output at +40 °C, 100% MIG (@MV low range) | 75 A |
| Output range, MIG | 15 A / 11 V ... 220 A / 28 V |
| Output range, MIG (@MV low range) | 15 A / 11 V ... 120 A / 23 V |
| Voltage adjustment range, MIG | 10 ... 32 V |
| Power factor at rated maximum current [λ] | 1 |
| Efficiency at rated maximum current [η] | 85 % |
| EMC class | A |
| Welding connection type | Built-in |
| Wire feed mechanism | Single-motor, 2-roll |
| Diameter of feed rolls | 30 mm |
| Filler wire diameter, Fe | 0.6 ... 1.2 mm |
| Filler wire diameter, Fe-MC/FC | 1 ... 1.2 mm |
| Filler wire diameter, Ss | 0.6 ... 1 mm |
| Filler wire diameter, Al | 0.8 ... 1.2 mm |
| Wire feed speed | 0.5 ... 18 m/min |
| Maximum wire spool weight | 5 kg |
| Maximum wire spool diameter | 200 mm |
| Operating temperature | -20 ... 40 °C |
| Storage temperature | -40 ... 60 °C |
| Recommended minimum generator power [Sgen] | 8 kVA |
| Degree of protection (fully installed) | IP23 |
| External dimensions, length | 460 mm |
| External dimensions, width | 221 mm |
| External dimensions, height | 365 mm |
| Weight without accessories | 12 kg |
| Standards | IEC 60974-1, -10 |
