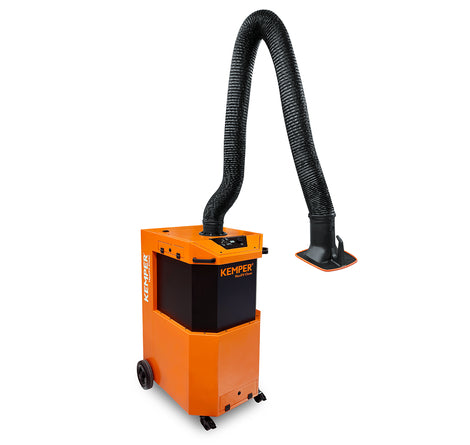

Kemper MaxiFil Extraction Unit 2,3,4m Flexible Exhaust Arm
Extraction unit for welding smoke with high capacity and safe filter change
- Suitable for all materials, including high-alloy steel
- Medium levels of smoke and dust
- Regular use
Extraction unit for welding fume capture with high capacity and safe filter replacement
MaxiFil smoke extraction units combine large filter capacities with contamination-free filter change. With their high mobility and an operating radius of 360 degrees, they are ideal for regular use. The comfortable filter unit easily handles applications with medium amounts of smoke and dust.
Large filter capacity for reliable continuous operation
For efficient welding fume extraction and long service life. The highlights at a glance:
- Safe operation by rotation field control

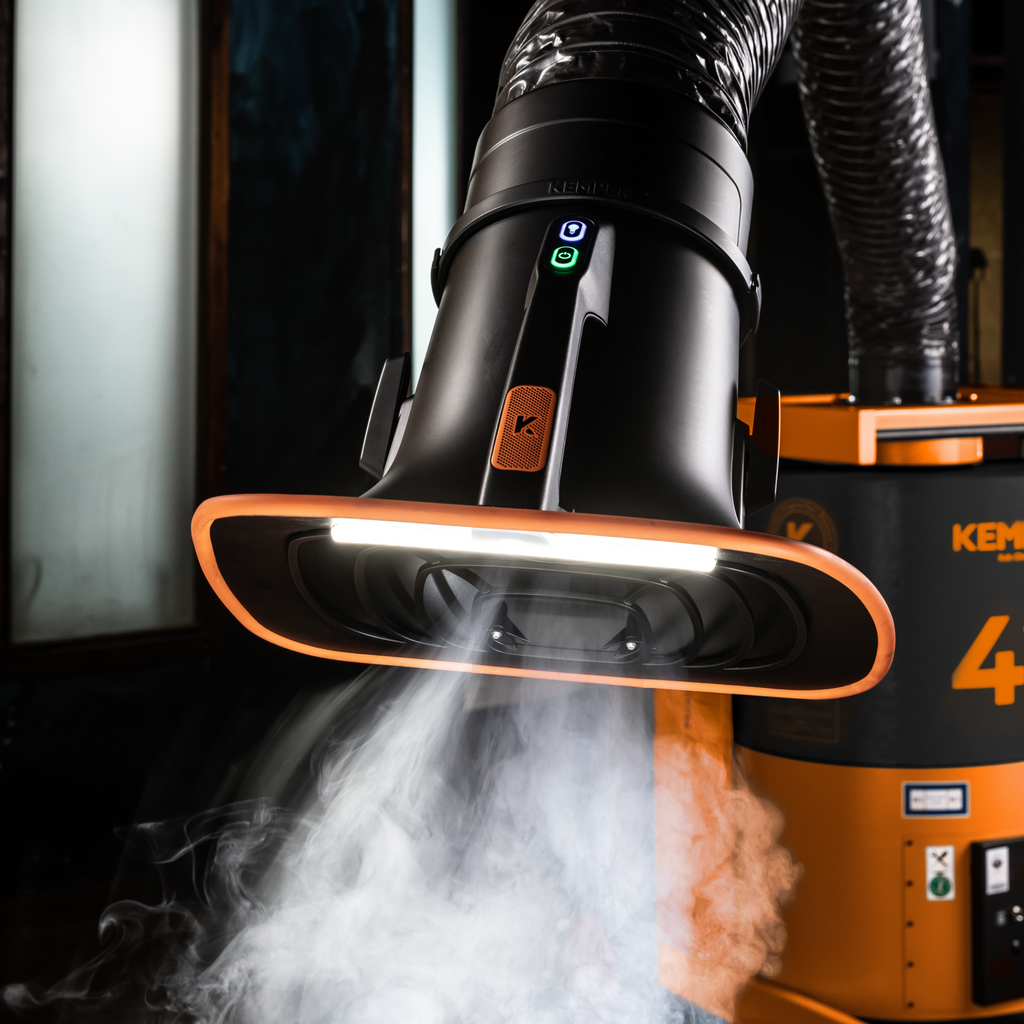

- Exhaust arm requires less adjustment due to flow-optimised exhaust hood design
- Increased safety due to filter monitoring
- Increased safety with safe filter change
- Very economic due to long lasting high capacity filters
Technical Data
| Dimensions | |
|---|---|
| Weight in kg: | 129 |
| Dimensions (depth) in mm: | 892 |
| Dimensions (width) in mm: | 803 |
| Dimensions (height) in mm: | 1109 |
| Filter | |
| Filter stages: | 2 |
| Filter area in m²: | 42 |
| Separation efficiency in % ≥: | 99.5 |
| Technology | |
| Motor power in kW: | 1.5 |
| Rated current in A: | 3.1 |
| Sound pressure level in dB(A): | 70 |
| Performance | |
| Max. fan capacity in m³/h: | 3000 |
| Extraction capacity in m³/h: | 1100 |
| Max. negative pressure in Pa: | 3200 |
| Connections | |
| Extraction arm diameter in mm: | 150 |
| Number of extraction arms: | 1 |
| Extraction arm length in m: | 2/3/4 |
Accessories
- Automatic start-stop
- Workplace lighting incl. on/off switch at the hood
