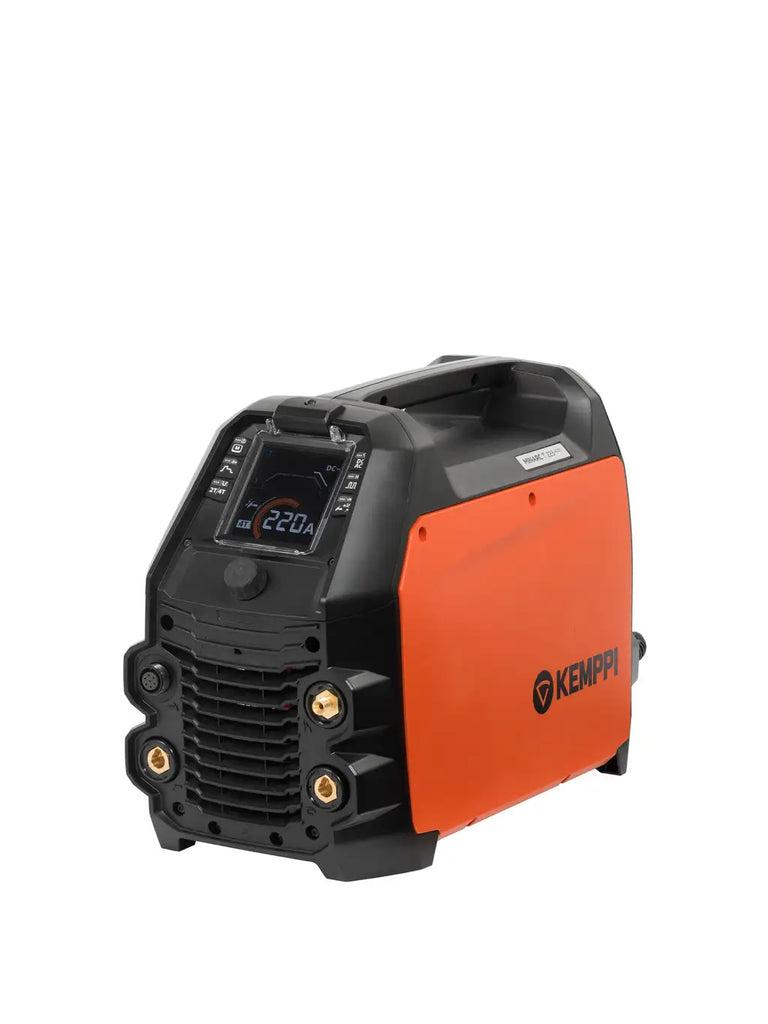

Kemppi MINARC T 223 ACDC GM 110/230V, 220Amps
The Minarc T 223 ACDC GM – a portable multi-voltage welding machine that offers high-quality AC/DC TIG welding and professional weld cleaning. Weld and clean with one machine. Kemppi has released a new 220 A single-phase AC/DC TIG welding machine with built-in electrolytic weld cleaning. Quickly convert a TIG torch to cleaning mode, where the new MAX WeldClean cleaning process uses an efficient combination of electric current and phosphoric acid to remove oxidation and discoloration fast for perfectly clean high-quality welds.
The Minarc T 223 ACDC GM TIG also comes with important features like Auto Pulse functionality, AC frequency control, memory channels, and a wide range of remote control options. A large color display with impact protection and a clear user interface makes choosing settings in different light conditions easier. Work smarter with the Minarc T 223 ACDC GM. Perform high-quality TIG welding and professional weld cleaning anywhere on-site with one machine.

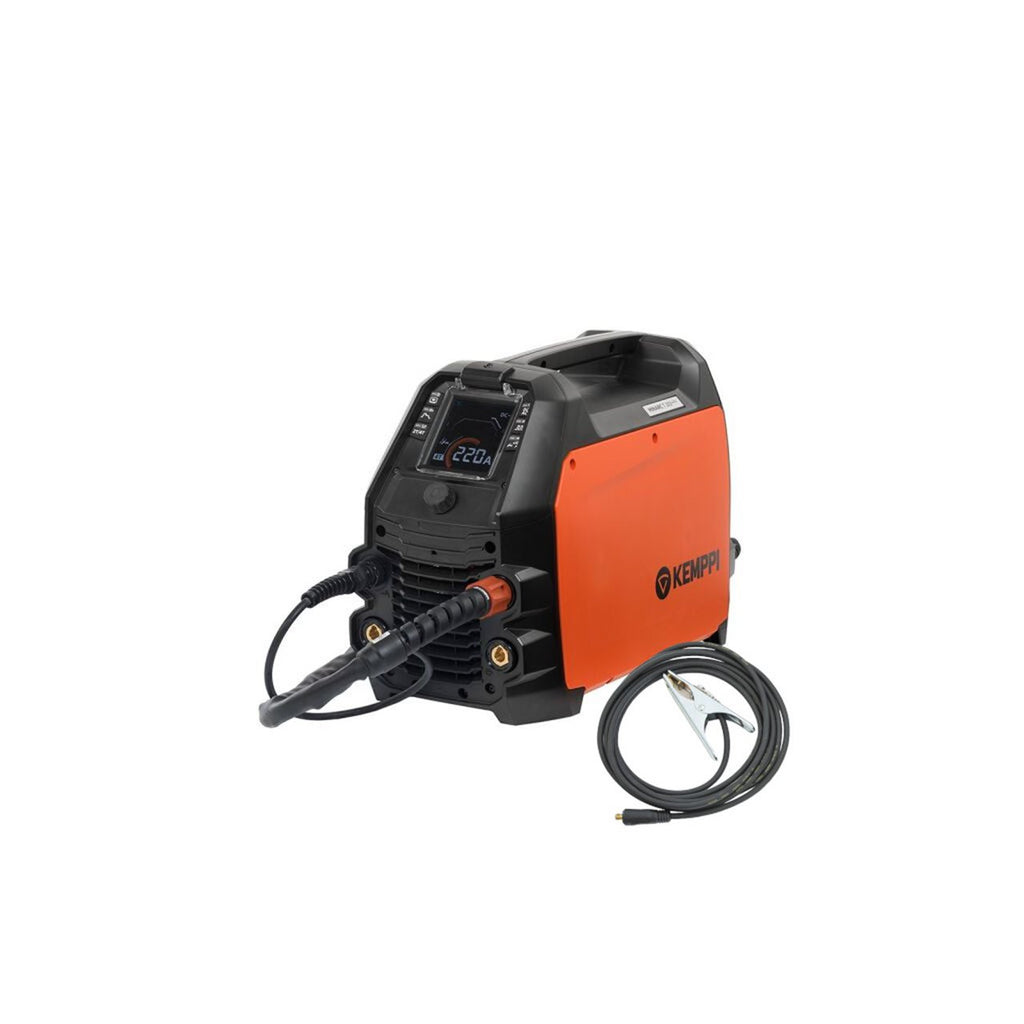

Kemppi Minarc T 223 AC/DC GM TIG Welder Air Cooled Package, incl. Torch & Earth Cable.
Take the Minarc T 223 ACDC GM anywhere on-site and save time by completing and finishing perfect welds in one spot. The new MAX WeldClean electrolytic cleaning process is simple and easy to use. It just takes a moment to convert your TIG torch to cleaning mode, where an efficient combination of electric current and phosphoric acid offers quick removal of oxidation and discoloration around the weld, delivering perfectly clean welds.
Features
- Premium multi-voltage AC/DC TIG welding machine with built-in weld cleaning function
- DC+ and DC- MMA welding
- 220 A with 20% duty cycle from a 1-phase power supply
- WeldClean electrolytic cleaning process speeds up post-processing of welds
- Large LCD display
- Four memory channels
- Auto Pulse with frequency control
- AC balance control
- Three alternative transport cart options
- Set parameters remotely with an optional on-torch remote
- Control your welding with the FR41 wired foot pedal
Versatile machine designed for professional TIG and MMA welding on various materials, including aluminium and stainless steel, the MAX WeldClean process is a standout feature, allowing you to quickly switch the TIG torch to a cleaning mode for fast and efficient removal of discoloration and oxidation. This multi-voltage machine can be used with both 110V and 230V power supplies, making it suitable for both workshop and on-site use. It delivers 220 amps with a 20% duty cycle from a single-phase power supply and features advanced controls like Auto Pulse and AC balance control for precise welding.
The unit features a large, bright LCD screen with impact protection and an intuitive control knob for easy parameter adjustments, you can save up to four sets of preferred welding settings for quick recall. The welder supports optional remote controls, including on-torch remotes and a wired foot pedal for hands-free operation. It weighs only 16.8 kg and has a robust, durable moulded casing, optimised for easy transport.
Several packages are available for the Kemppi Minarc T 223 AC/DC GM, which typically include different torch lengths and cooling options: - Air-cooled packages: The TX225G is an air-cooled TIG torch that comes with certain air-cooled packages of the machine. The packages come with either a 4m (TX225G4) or 8m (TX225G8) torch. Some air-cooled packages may also come with a foot pedal.
Technical data
| Description | Value |
|---|---|
| Mains connection voltage | 220...240 V ±10 % |
| Mains connection voltage (MV low range) | 110...120 V ±10 % |
| Mains connection phases | 1~50/60 Hz |
| Mains connection cable type | 3G, H07RN-F |
| Mains connection cable size | 2.5 mm² |
| Rated maximum input power [S1max] | 5.5 kVA |
| Mains fuse | 16 A |
| Mains fuse (@MV low range) | 16 A |
| Idle power | 10 W |
| Output, duty cycle % at rated max. current, TIG | 20 % |
| Output at +40 °C, rated max current, TIG | 220 A |
| Output at +40 °C, 60% TIG | 170 A |
| Output at +40 °C, 100% TIG | 160 A |
| Output, duty cycle % at rated max. current, MMA | 35 % |
| Output at +40 °C, rated max current, MMA | 170 A |
| Output at +40 °C, 60% MMA | 130 A |
| Output at +40 °C, 100% MMA | 110 A |
| Output, duty cycle % at rated max. current, TIG (@MV low range) | 40 % |
| Output at +40 °C, rated max current, TIG (@MV low range) | 130 A |
| Output at +40 °C, 60% TIG (@MV low range) | 110 A |
| Output at +40 °C, 100% TIG (@MV low range) | 90 A |
| Output, duty cycle % at rated max. current, MMA (@MV low range) | 40 % |
| Output at +40 °C, rated max current, MMA (@MV low range) | 90 A |
| Output at +40 °C, 60% MMA (@MV low range) | 70 A |
| Output at +40 °C, 100% MMA (@MV low range) | 60 A |
| Power factor at rated maximum current [λ] | 1 |
| Efficiency at rated maximum current [η] | 83 % |
| EMC class | A |
