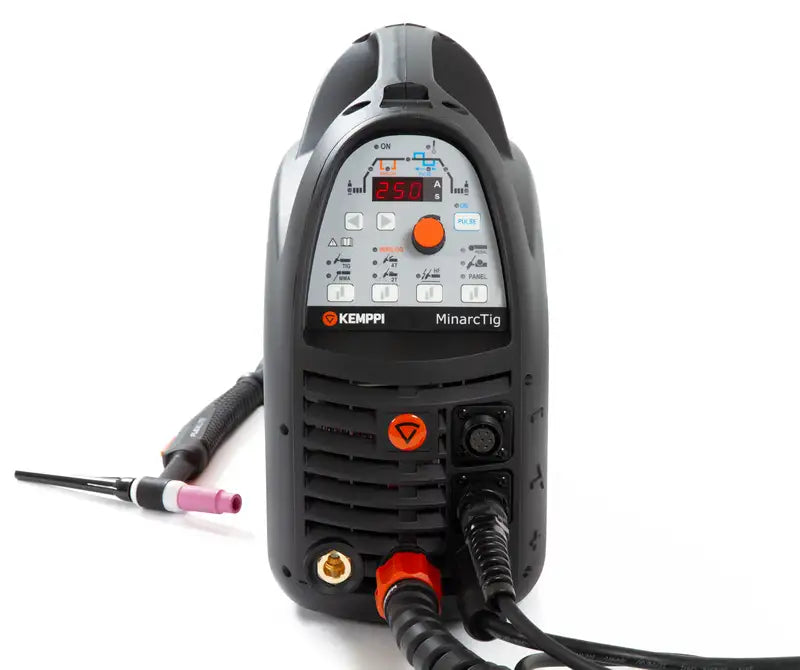

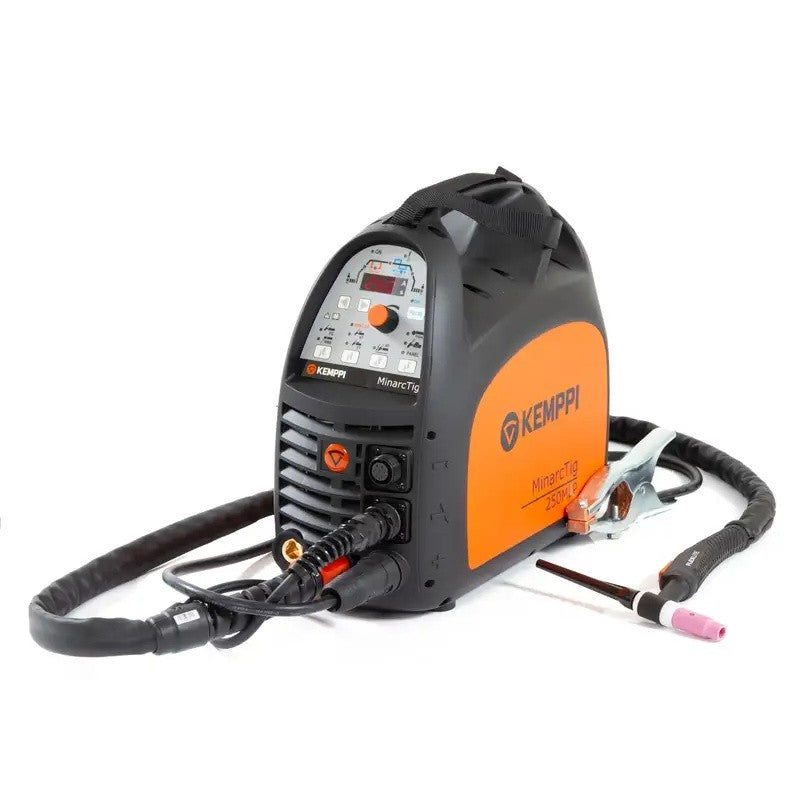

Kemppi MinarcTig 250 DC Packages Air Cooled 400V
All TIG Packages incl -
Tig Torch, Earth Return, Gas Hose and Regulator, Torch Spares, Tungstens, Pair of Tig Gloves, 230V 16Amp Plug fitted with 13Amp Adaptor Lead, (415V Plug 16/32Amp 4/5 Pin
MinarcTig 250 is the ideal DC TIG welding solution for installation, repair and maintenance applications. The 250 amp model suits high-quality work and the lightweight and compact size is a real bonus for professionals on the move around the site. MinarcTig 250 is a dual-process basic model providing an impressive DC TIG and Stick (MMA) welding experience.
Features
- Excellent low-current ignition
- Clear parameter display
- Pre and post gas timer
- Slope in/out timer
- Torch switch latching
- Pulse welding option
- Suitable for mains or power generator use
- Dual-process DC TIG and MMA welding
- Maximum output of 250 A
- Refined TIG welding quality for precise applications
- Compact and lightweight design for easy transport
- High 30% duty cycle at maximum TIG output
- Efficient operation with 86% efficiency
- Strong power factor of 0.91
- Robust construction for industrial use
- Degree of protection IP23S
Technical Data
| Mains connection voltage | 400 V -20...+15 % |
| Mains connection phases | 3~50/60 Hz |
| Mains connection cable type | 4G, H07RN-F |
| Mains connection cable size | 1.5 mm² |
| Rated maximum input power [S1max] | 8.2 kVA |
| Mains fuse | 10 A |
| Idle power | 40 W |
| Output, duty cycle % at rated max. current, TIG | 30 % |
| Output at +40 °C, rated max current, TIG | 250 A |
| Output at +40 °C, 100% TIG | 160 A |
| Power factor at rated maximum current [λ] | 0.91 |
| Efficiency at rated maximum current [η] | 86 % |
| EMC class | A |
| Minimum short-circuit power of supply network [Ssc] | 1.5 MVA |
| Welding connection type | DIX |
| Recommended minimum generator power [Sgen] | 15 kVA |
| Degree of protection (fully installed) | IP23S |
| External dimensions, length | 400 mm |
| External dimensions, width | 180 mm |
| External dimensions, height | 340 mm |
| Weight without accessories | 10.7 kg |
| Standards | IEC 60974-1, -3, -10, IEC 61000-3-12 |
