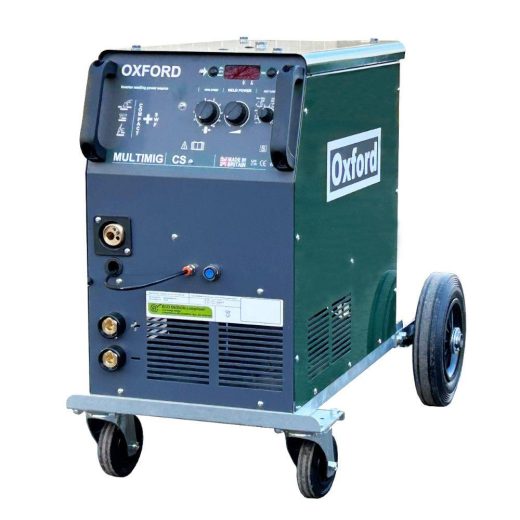

OXFORD MULTIMIG 511CS COMPACT MIG WELDER – 230V
The Oxford MultiMIG 511CS is an industrial quality 510 Amp single phase (230V) British built inverter MIG welder. The biggest in the Oxford range, the 511CS is Ideal for everything from thin sheet metal work (30A minimum) to thick materials including digger buckets. One of the biggest single phase machines on the market, the Oxford 511CS is a perfect solution for welding thick material even when limited to a 230V supply.
Reverse polarity for gasless wires, digital meters and stick welding functionality now come as standard on the MultiMIG range making them truly versatile bits of kit.
Industrial machines, the MultiMIG range will weld steel, stainless steel, duplex, hardox, aluminium and alloys. Super smooth welding characteristics with low spatter for perfect welds and instant arc starts without popping. Run from a generator or mains, with auto compensation even for long extension cables or poor supply where voltage drop may be an issue.
The MultiMIG is equipped with a 4 roll wire feed inside the power source, allowing the use of long MIG torches, providing a smooth and consistent feed of wire. A 4 roll wire drive grips the wire better and also helps especially with softer wires such as aluminium.
2 knobs control welding output volts and wire feed speed, which are both infinitely variable unlike their transformer, step regulated predecessors. A stable digital display shows welding power when setting the machine and exact values during the weld.
BRITISH BUILT
When you think of a British built welder, you automatically think Oxford. They have been made in the UK for over 60 years and they have built a reputation as workhorses. They are simply built to offer maximum lifespan, providing reliability and excellent welding performance. The newer inverter machines are no exception, they are hand built using only the best quality components sourced in the UK wherever possible. Anything that can be made in house is made right in the factory here in the UK – inverter transformers, coils and PCBs, they even daw their own copper litz wire.
MULTI PROCESS
The Oxford MultiMIG is one power source that does everything:
- MIG/MAG Welding
- MMA (Stick welding)
- DC Lift TIG (TIG weld ferrous materials such as steel and stainless)
- Option to connect a separate wire feed – perfect for large welding jobs – this also gives the user 2 wire feeds and the option of having 2 wire types loaded at any one time to avoid having to remove and re-load for different materials. Weld from the power source connected MIG torch or a MIG torch connected to the separate wire feed.
- Spool gun interface for welding Aluminium
Main Features:
- British Made
- Genuinely Industrial machines designed to work hard for 25+ years.
- Heavy duty wire spool holder for 15kg or 5kg MIG wire reels – a mechanical brake prevents overrun
- Easy MIG wire loading – accessible just under the lid. Simple
- Robust gas bottle carrier, holder and chain suitable for all bottle sizes
- MIG welding possible of Aluminium, mild steel and stainless steel
- Infinitely variable weld power from 30A to 510A with precision to 1A and 0.1V
- Digital display shows settings prior to welding and precise value when welding
- Super smooth MIG welding with low spatter and instant arc starts
- All metal geared wire drive system ensures perfect wire feeding of all sizes and types of wire
- One power source for compact or separate wire feed with true CC/CV multi process capability
- Ready to plug in the Oxford 4X wire feeder to convert to a separate wire feed
- Ready to plug in a spool gun for easy aluminium welding
- Ready to plug in a TIG torch with switch & gas control with adjustable post flow (DC TIG Only)
- Unique ARC TUNE control allows full control over welding characteristics – variable inductance to dial out spatter, softer arc, super soft, harder fast arc, arc force on stick welding etc.
- Reversible polarity, 2T/4T trigger latching, adjustable burn back and adjustable post flow gas
- Auto compensation for extension cables up to 100m & unstable or poor mains input supply
- Generator friendly with built in over and under voltage protection
- Efficient Oxford design – Low power consumption and decreased running costs. 12 – 20W standby power
- Supplied on wheels and casters – perfect for manoeuvrability around the work shop
- Rugged power source case design with galvanised chassis and front panel protection
- High duty cycles
- Cooling chambers keeps dust and fume ingress away from electronic parts – increases longevity.
- Industry standard euro connector with all brass construction – use your favourite torch.
- Built to comply with BS EN60974-6, BS EN50199, RoHS directive, & CE marked.
Rugged reliable compact MIG machines with simple no nonsense controls. Great welding performance, simple build & easy maintenance, everything you want from a machine designed to weld & nothing you don't want. 1000’s sold over the last few years!
SUPPLIED AS STANDARD WITH 3M MAINS LEAD, 3M EARTH RETURN LEAD, MIG TORCH AND REGULATOR
ADDITIONAL OPTIONS
- Calibration to EN1090
- Spool guns for Aluminium welding
- Push Pull torches for Aluminium welding
- MMA Leads
- TIG Torch
- Longer Mains input leads
All Oxford welding machines are offered with the following guarantees:
2 year warranty all items – except torch and regulator.
5 year main transformer warranty (the heart of the machine)
20 year minimum guarantee of spares availability
Size approx. 680mm H x 340mm W + rear wheels x 840mm long.
Only have Single phase mains power? No problem, Oxford make the MultiMIG 411CS to run from a 230V 45A supply!
| Model |
Oxford MultiMIG 511CS |
| Amps range |
30 – 510 |
| Duty cycle @ 60% |
450A |
| Duty cycle @ 45% |
510A |
| Input fuse (slow blow) |
63A |
| Welding wire |
0.6 – 1.6mm |
| Efficiency & Idle Power |
86%, 20W |
| OCV – No load |
72V DC |
| Approx. weight |
60kg |
| Min. Generator Size |
12kVA |
* Note the input fuse size on single phase models is a result of Oxfords calculations & tests, it is possible to use any of these models on a lower fuse size at lower welding power. It is recommended always using a ‘D’ type circuit breaker to avoid intermittent tripping & in some instances you may experience intermittent tripping if using close to maximum settings.
Output amps on MMA and TIG is the same as MIG. MMA duty cycle is reduced by 2% for the 513 and up to 6% on the 271/273.
Why accept an imported machine when you can buy a top quality British made machine for a similar price?
Please note: Oxford machines are built to order and may take 7 – 14 working days from order to be built and dispatched. If you place an order online, one of sales team will be in touch to confirm delivery time scales. Also note our returns policy for these machines on our terms and conditions page.
THE TBWS VERDICT:
We have been supplying the Oxford range of machines for a very long time now. They are just simply built to last! You just know that you can go to these welders, turn them on and away you go. Oxford parts availability is some of the best out there too. Also, in the event of needing technical advice, you can talk to the people that designed and made the machine!
OXFORD MULTIMIG CS INVERTER POWER SOURCE
There are many models of inverter on the market today from Chinese imports, to well made EU or US machines. EU/US made machines generally perform better & are more reliable with a longer life. However, the desire to cram more and more into smaller spaces with over complex circuitry often makes these difficult & prohibitively expensive to repair. Many of the lower cost imports are simpler in construction but have a short life, particularly in harsh environments. Some are plagued by unreliability & quickly end up scrapped. Welding machines may be used hard every day, but some customers may use occasionally. Little used machines often suffer more, possibly due to damp build up etc.
There is nothing worse than buying a machine, using it for a few days or weeks over 2 or 3 years then finding its failed & you have an expensive repair or must buy again.
For the last 30+ years our Electronic Engineers have repaired almost every fault going on all makes & models, Esab, Miller, Lincoln, EWM, Lorch, Migatronic, CEA, Cebora, GYS, Fronius, Stel, Kemppi, Jasic, OTC, Panasonic etc.
Welding equipment is never used in perfect conditions, damp & dirty workshops are the norm! This alone causes many of the problems. We have seen almost every fault possible; we know what works well & lasts well. We have applied that expertise into these models to give you something different from competitors products.
Firstly, we keep things simple. No microprocessor or over complex circuitry is fitted. A cooling chamber is used to prevent ingress of debris to the electronic components. We don’t parallel 20 or 30 transistors we fit only 2 IGBT modules – minimum parts & maximum reliability!
We make everything we can ‘in house’ including inverter transformers, coils & PCBs, we even draw our own copper litz wire.
From a serviceability point our inverter machines are simple, no need for an Electronic degree! We include diagnostic LEDs & test points, all
OXFORD machines can be maintained by any competent Technician anywhere in the world.
MULTIMIG models are actually simpler to use than an old style MIG, with just one knob to set the welding power & another to set wire speed.
A stable digital display is fitted which shows set welding power prior to welding, with exact values shown during welding.
Despite the simplicity we have included features to give you superb welding characteristics, with low spatter, instant arc starting (no popping or
delays) & full control over the output inductance & arc characteristics. 4 roll drive wire feed on all models ensures consistent hour after hour reliable welding.
In addition, all offer superb MMA electrode welding & lift TIG DC (with full switched control), also torch polarity can be swapped in seconds.
From a mechanical point MULTIMIG models have a tough galvanised chassis & front panel bash protection. Apart from handles & wheels almost no plastic is used in these machines. Protection class is to IP23, these can be used outdoors with basic protection from bad weather.
