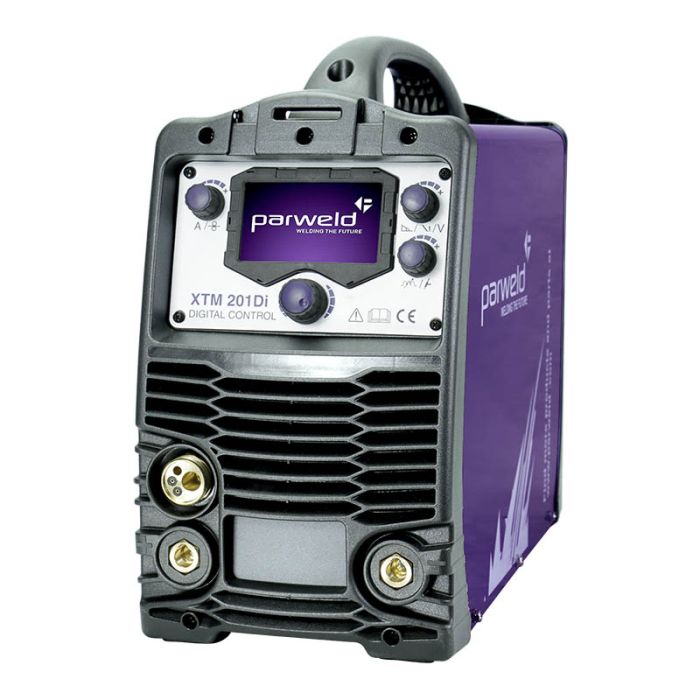

Parweld XTM 201Di multi-process Digital Mig inverter 230V, 200Amps

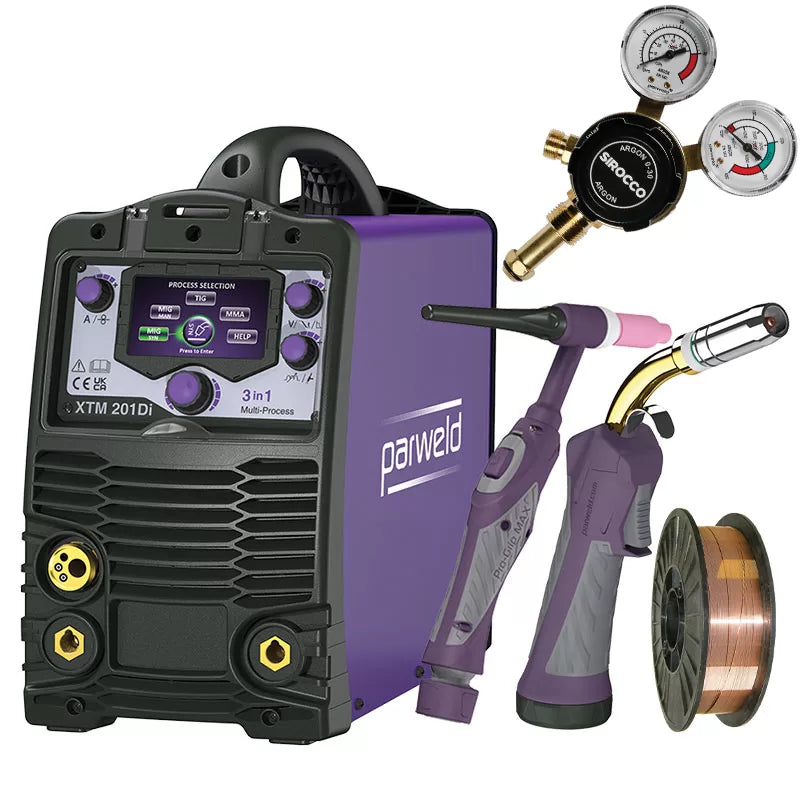

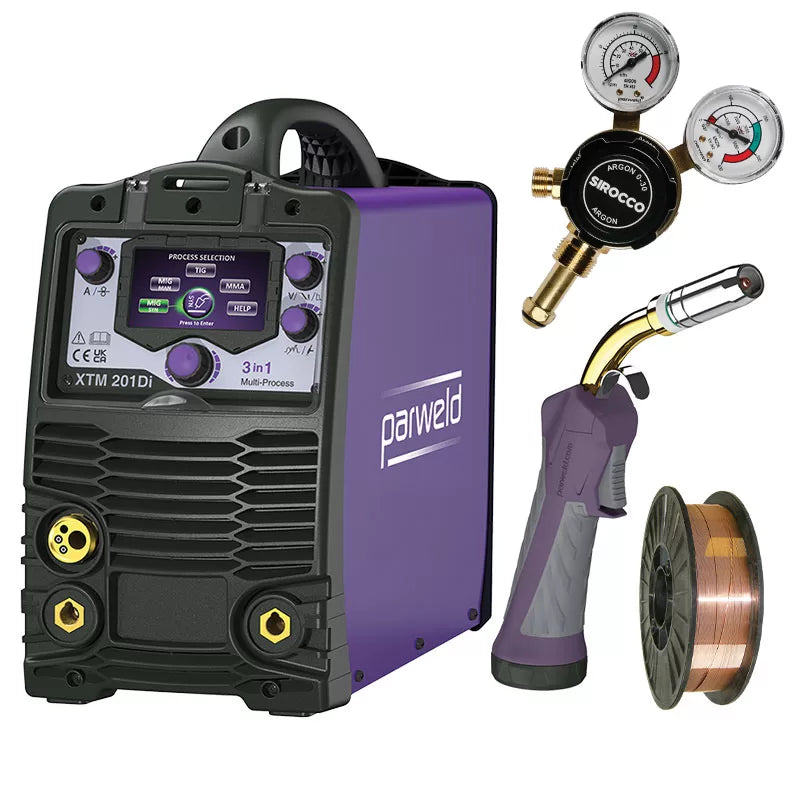

All MIG Packages incl.Mig Torch, Earth Return, Gas Hose and Regulator, Torch Spares Kit, Mig Wire 5.0K Reel, Pair of Welding Gauntlets, Antispatter Spray, Tip Dip, Mig Pliers ,16Amp Plug with 13Amp Adaptor Lead, 415V 16/32A Plug 4/5 Pin.
The 3 in 1 Multi-Process XTM201Di MIG Machine is ideal for welding Stainless Steels, Steels and Aluminium using MIG, DC TIG or MMA Processes. This Welding Power Source Machine is suitable for site work, maintenance and repair work. The multi-language innovative digital interface allows machine setup with minimal process knowledge. The helpful display guides the user through the machine setup from how to connect the power source for the chosen process, right through to the correct settings for the particular material thickness.
Features
- Smart Switching Dual Voltage 100V / 230V
- Digital Multi-Language Interface
- Rapid Synergic Setup for MIG, Lift TIG & MMA Welding
- Supplied with MMA Lead Set, Input Cable and Gas Hose
Specifications
| Weight | 17.5 kg |
|---|---|
| Dimensions | 490 × 220 × 430 mm |
| Phase |
Single Phase |
| Machine Style |
Compact, Portable |
| Machine Type |
Inverter |
| Maximum Current |
140A DC, 200A DC |
| Duty Cycle |
200A @ 25% Duty Cycle |
| Input Voltage |
110V 1P, 230V 1P, Dual Voltage, Smart Switching |
| Voltage |
10.4-18V (TIG), 14.5-24V (MIG), 20.4-28V (MMA) |
| Feed Box |
2 Roll Drive |
| Input Current (Eff) |
26A, 32A |
| Output |
DC |
| Wire Size |
0.6-1.0mm |
| Spool Size |
100mm (1kg), 200mm (5kg) |
| Minimum Fuse Rating |
16A, 32A |
| KVA |
7.8 |
| Generator Size (Requires AVC) |
10 KVA |
| Enclosure Protection |
IP23S |
| Cooling |
Air, Fan, Forced |
| Comes With |
3m Earth Cable, 3m Input Cable, CKE MMA Lead, Digital User Interface, Gas Hose, Multi-Language Functions |
| Special Features |
Adjust Voltage & Wire Speed from the Torch, Digital User Interface, Optional Gasless MIG Welding, Smart Switching Dual Voltage, Synergic Control, Synergic Welding Rapid Set Up |
| Warranty |
5 Year Warranty |
| Conforms To |
IP23S, ISO/IEC 60974-1, ISO/IEC 60974-6 & RoHS compliant |
