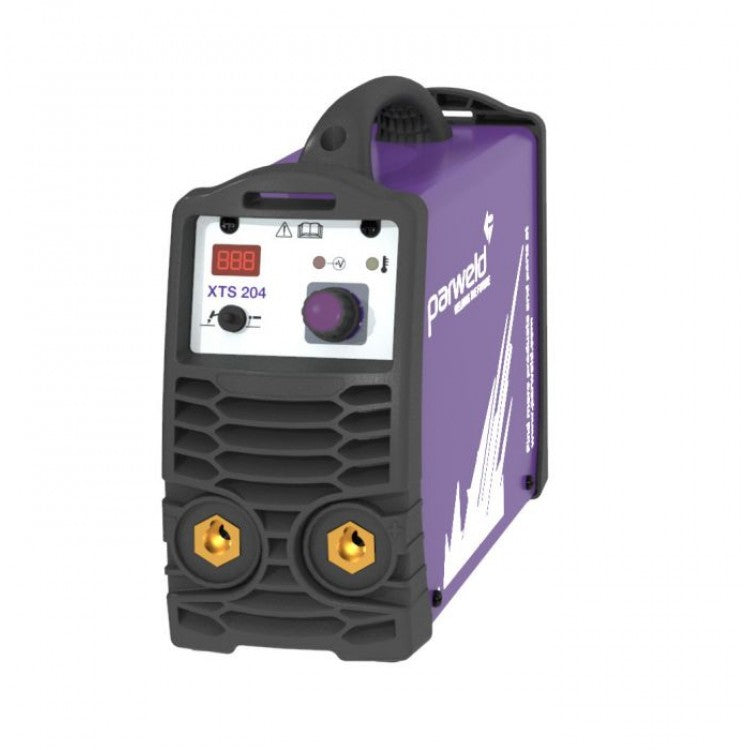

Parweld XTS 204 MMA inverter 230V, 200Amps

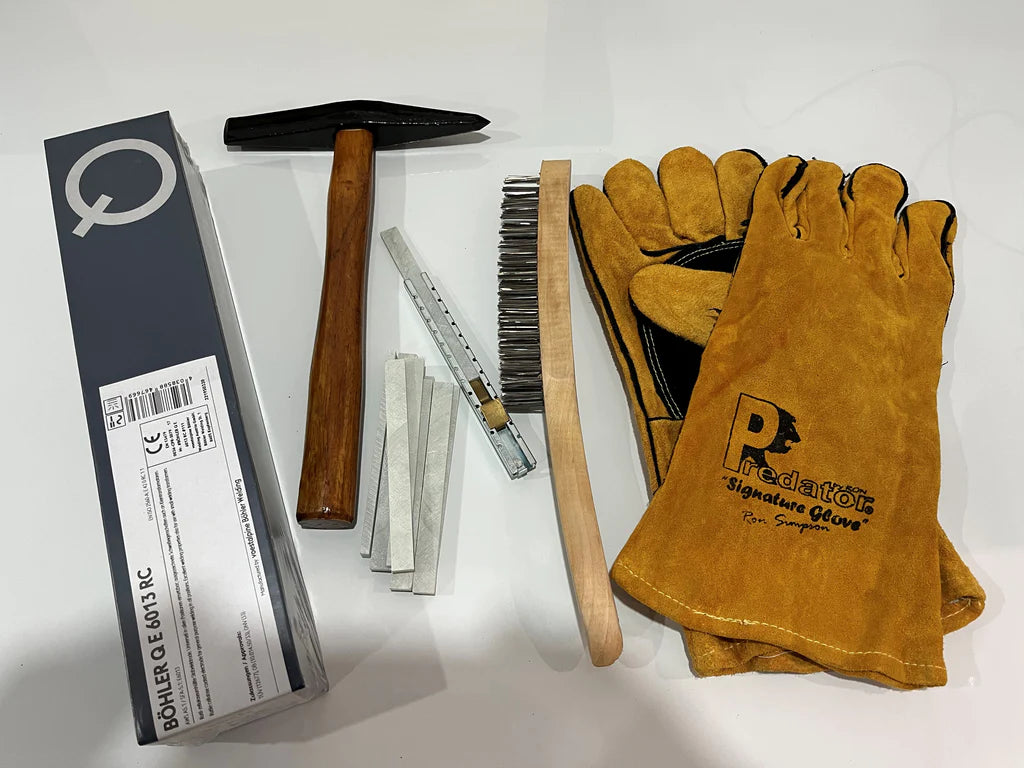

All MMA Packages include MMA Lead, Earth Lead, 5.0Kg Pkt 6013 Electrodes, Wire Brush, Chipping Hammer, Welders H/Duty Gauntlets, French Chalk & Holder.230V 16Amp Plug with 13Amp Adaptor Lead, (415V 16/32Amp, 4/5Pin.
The XTS 204 is a compact but powerful machine ensuring maximum portability and performance. Electrodes up to 4.0mm can be used with ease.
By fitting the optional TIG torch and coupling to a suitable gas supply the XTS 204 can be used for TIG welding and is suitable for welding steel and stainless steel. The lift arc mode limits the arc current when the tungsten touches the work piece preventing electrode damage.
The XTS 204 is able to cope with inputs which fluctuate by +/-15% & can be used with the majority of generators. The machine is housed in a rugged steel case. A carry case is available as an optional extra.
Features
- 230V Input
- 200A @ 25% Duty Cycle
- Lift TIG Mode
- Digital Display for Easy Setting
- Generator Friendly
- Welding Mode for Rutile and Low Hydrogen Electrodes
- Over Voltage Protection
- Over Current Protection
- Easy Electrode Striking with Arc Force
- Re-Striking with Hot Start
- Connections 35-50mm Twist Lock
Technical Data
| Weight | N/A |
|---|---|
| Dimensions | N/A |
| Phase |
Single Phase |
| Machine Style |
Compact |
| Machine Type |
Inverter |
| Maximum Current |
10-200A |
| Duty Cycle |
200A @ 25% Duty Cycle |
| Input Voltage |
230V 1P |
| No Load Voltage |
50V |
| Max Electrode Size |
4.0mm |
| Input Current (Eff) |
20A |
| Output |
DC |
| Cable Connection |
35-50 Twist Lock |
| Minimum Fuse Rating |
32A |
| KVA |
10.2 |
| Generator Size (Requires AVC) |
13 KVA |
| Cooling |
Air, Fan, Forced |
| Enclosure Protection |
IP23S |
| Comes With |

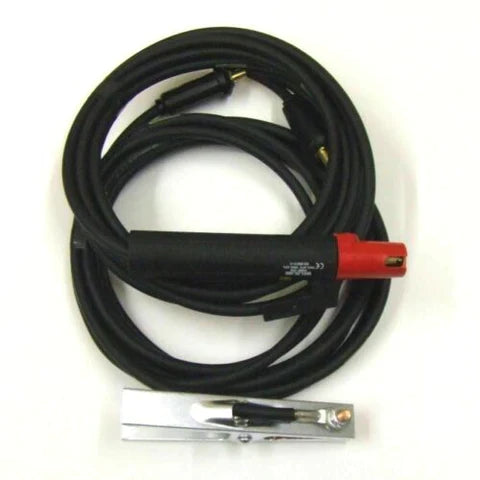

3m Cable, 3m Earth Lead, Electrode Holder |
| Ideal for Applications |
Agricultural, DIY, Light Industrial Manufacturing, Maintenance Repair, Metal Fabrication, Training |
| Special Features |
Arc Force, Electrode Striking, Lift TIG Mode, Over Voltage + Over Current Protection, Re-Striking, Re-Striking with Hot Start |
| Warranty |
5 Year Warranty |
| Conforms To |
IP23S, ISO/IEC 60974-1, ISO/IEC 60974-6, RoHS Compliant |
