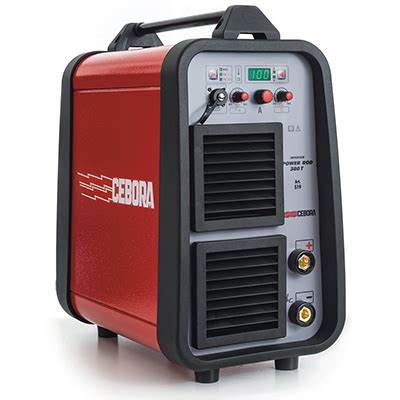

Cebora 380T-CELL Power Rod 400V 380A
THREE-PHASE INVERTER FOR MMA AND DC TIG WELDING
The Cebora Power Rod 380T is a robust, portable inverter able to weld in MMA (Ø 1.5 – Ø 6.0) and DC TIG welding. Also equipped with sophisticated control of the short circuit condition and drop transfer via the “Hot Start” and “Arc Force” functions. In hot start, the machine senses the electrode contacting the workpiece and delivers a peak current to provide easier arc starts. Arc force or “dig force” operates during the weld and delivers peak current when a short circuit is detected to prevent sticking and maintain a stable arc.
Suitable for cellulosic coated electrodes. The power source can also be used with an engine-driven generator of appropriate power. It can also be connected to a remote control (ART 1837), which controls the current and a digital ammeter which reads the welding current. Upgradable machine software stored in the on-board flash memory.
Features:
- DC Inverter Power Source
- 400V Supply
- MMA/TIG Pulse LIFT System
- Rutile Basic
- 5mm-4.0mm Electrodes
- Robust and Portable Design
- Adjustable Hot Start
- Adjustable Arc Force
- Generator Compatible
- 270amps @ 60% Duty Cycle
- Digital Ammeter
- Cellulosic
Dimensions: 297 x 463 x 588 mm
Optional: MMA Accessory Kit (ART1284.05), TIG Torch (ART1567.01), Trolley (ART1656), Foot Control (ART181), Remote Pendant (ART187), Extension Cable (ART1192), TIG/Foot Control Adaptor (ART1180)
| Art. | 519 | Technical Specifications | |
|---|---|---|---|
 |
400 V 50/60 Hz ± 10% |
Three-phase input | |
 |
16 A | Fuse rating (slow blow) | |
 |
16,6 kVA 30% 10,0 kVA 60% 8,0 kVA 100% |
Input power | |
 |
10 ÷ 380 A | Current adjustment range | |
 |
380 A 30% 270 A 60% 230 A 100% |
Duty Cycle (10 min.40°C) According to IEC 60974-1 |
|
 |
Ø 1,5 ÷ 6,0 | Electrodes that can be used | |
 |
IP23S | Protection class | |
 |
26,3 kg | Weight | |
 |
297x463x588 mm | Dimensions (W x L x H) | |
