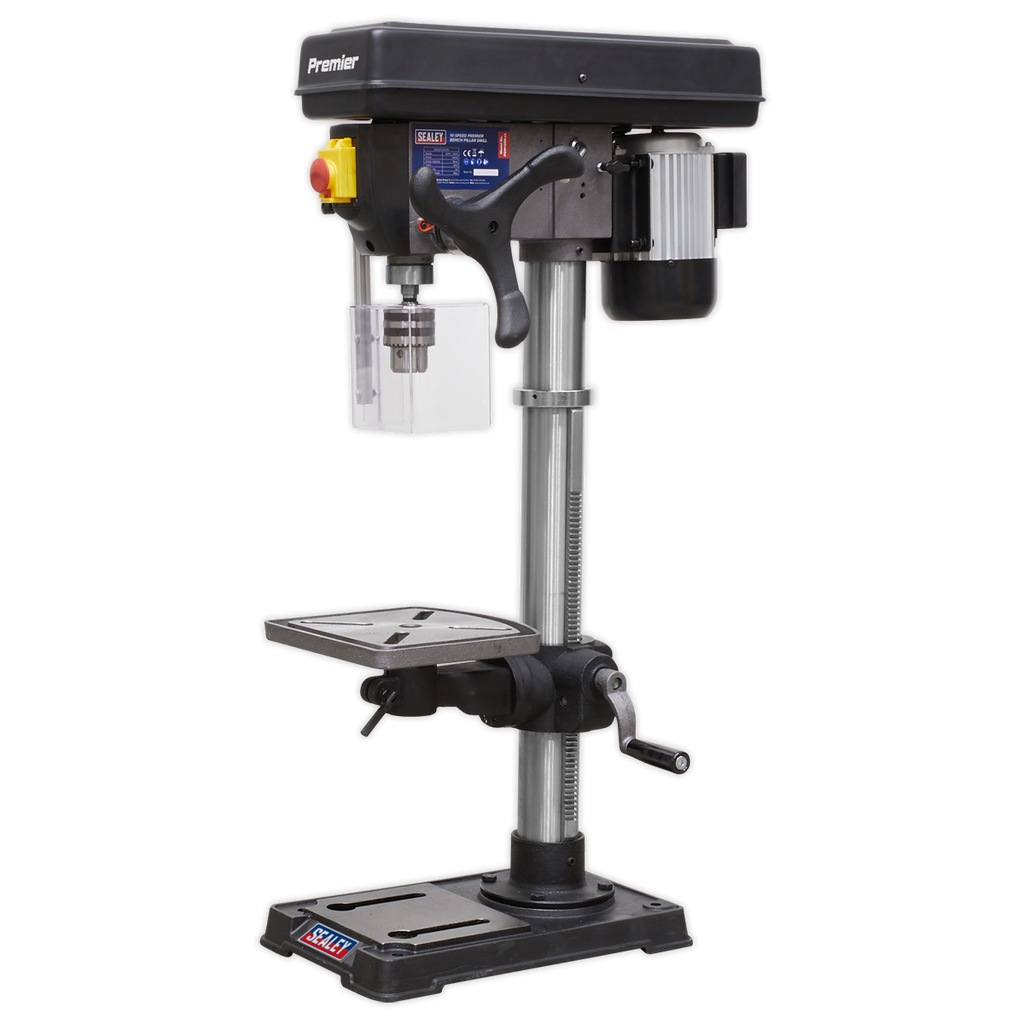

Sealey PDM125B Premier Bench Mounting Pillar Drill 16-Speed 370W/230V
One of a comprehensive range of Premier bench mounting pillar drills for the professional workshop. Features heavy-duty aluminium-bodied motor for long and reliable performance. No-volt release switch to prevent inadvertent start-up and pulley cover protected by microswitch to prevent drill operating when cover is open. Supplied with an electrically inter-locked chuck guard. Large sized square table fitted with precision rack and pinion height adjustment.
Features
-
• One of a comprehensive range of Premier bench mounting pillar drills for the professional workshop.
• Features heavy-duty aluminium-bodied motor for long and reliable performance.

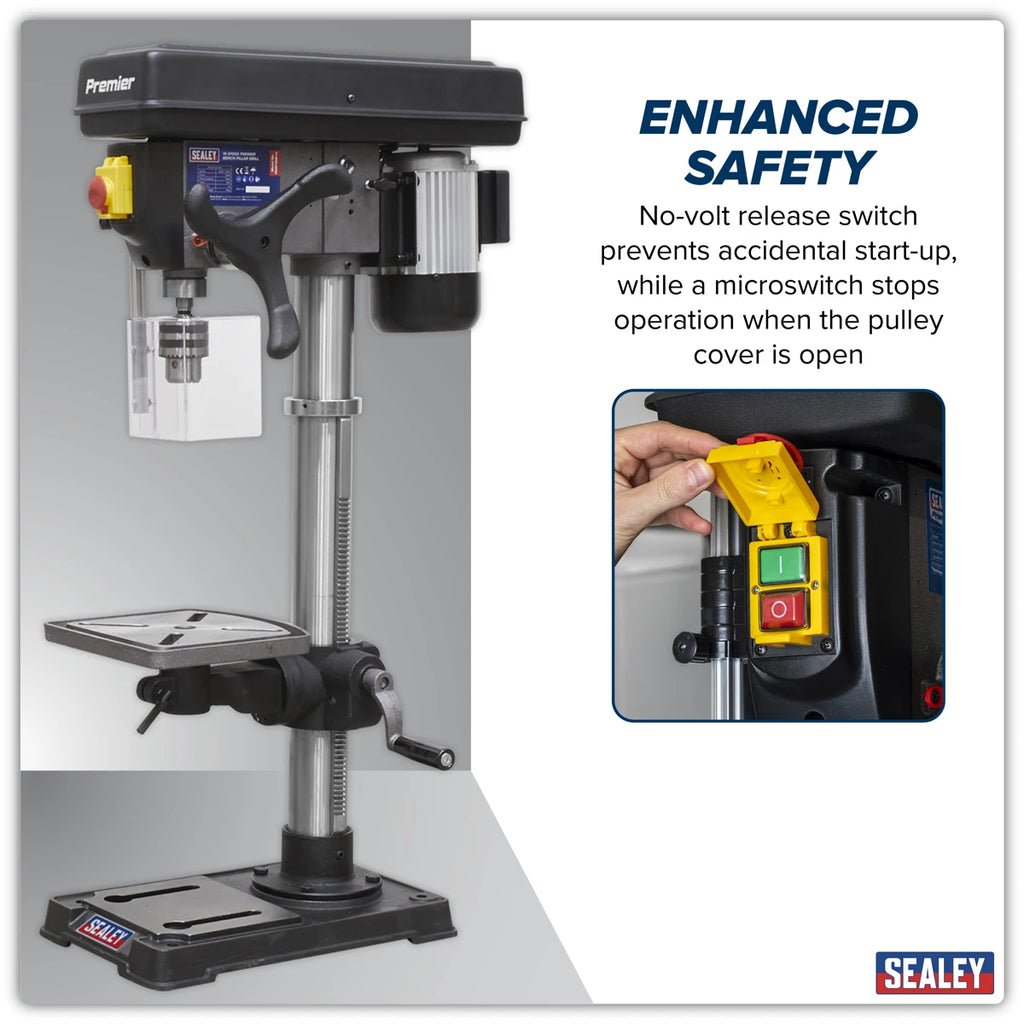

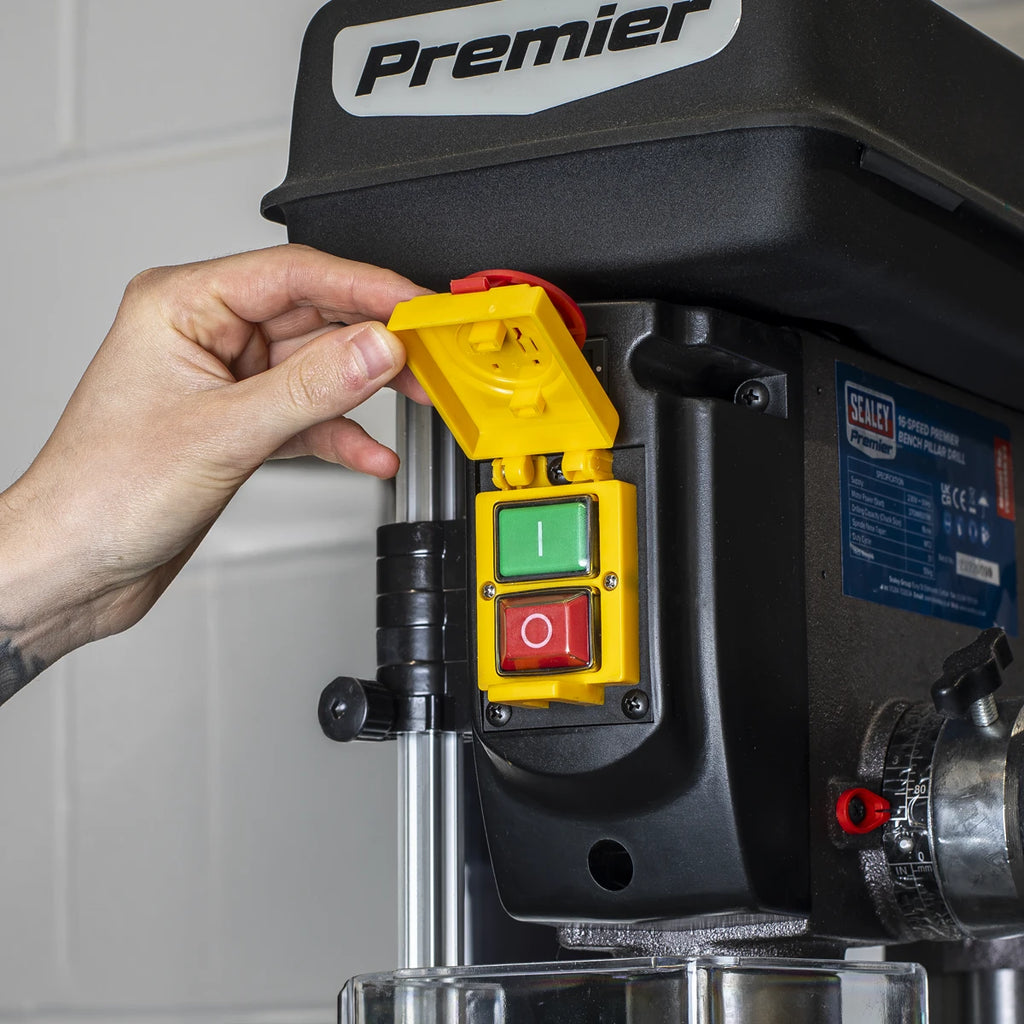

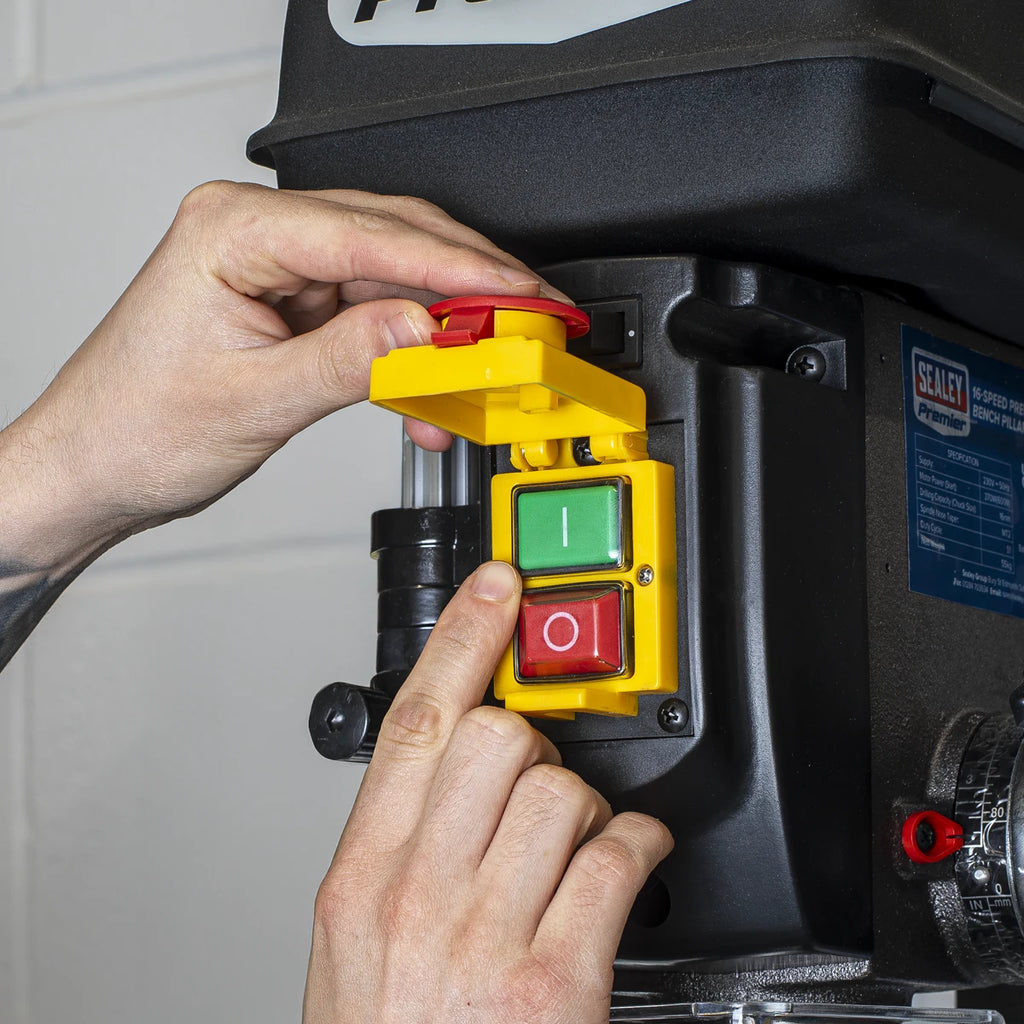

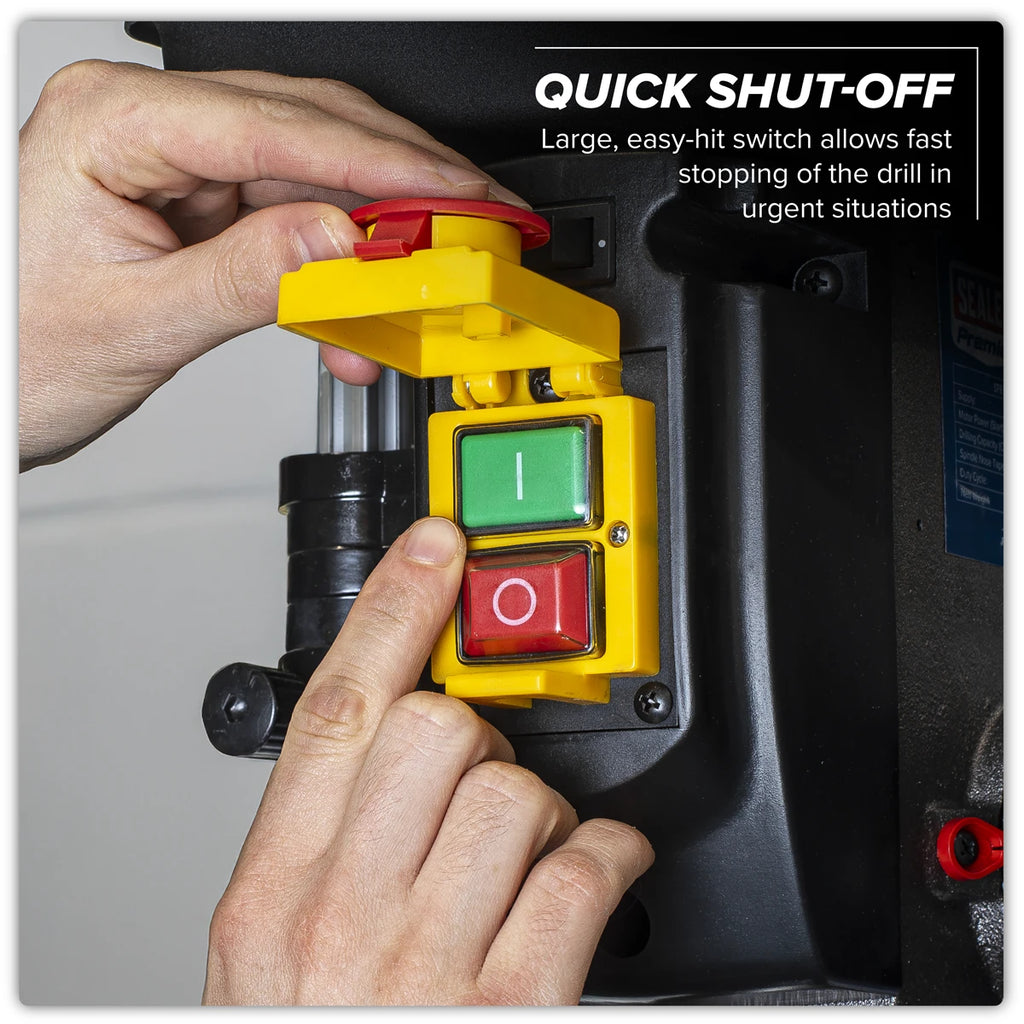

• No-volt release switch to prevent inadvertent start-up and pulley cover protected by microswitch to prevent drill operating when cover is open.
• Supplied with an electrically inter-locked chuck guard.

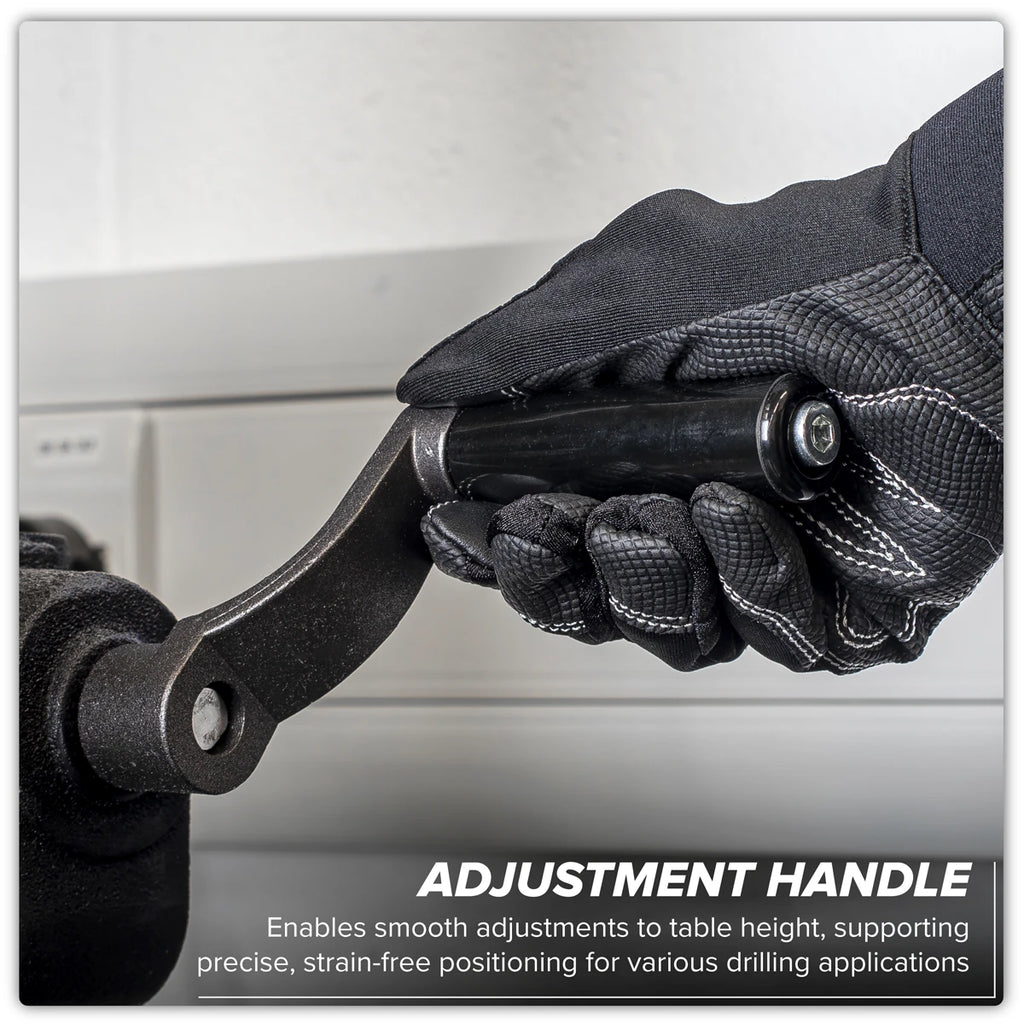

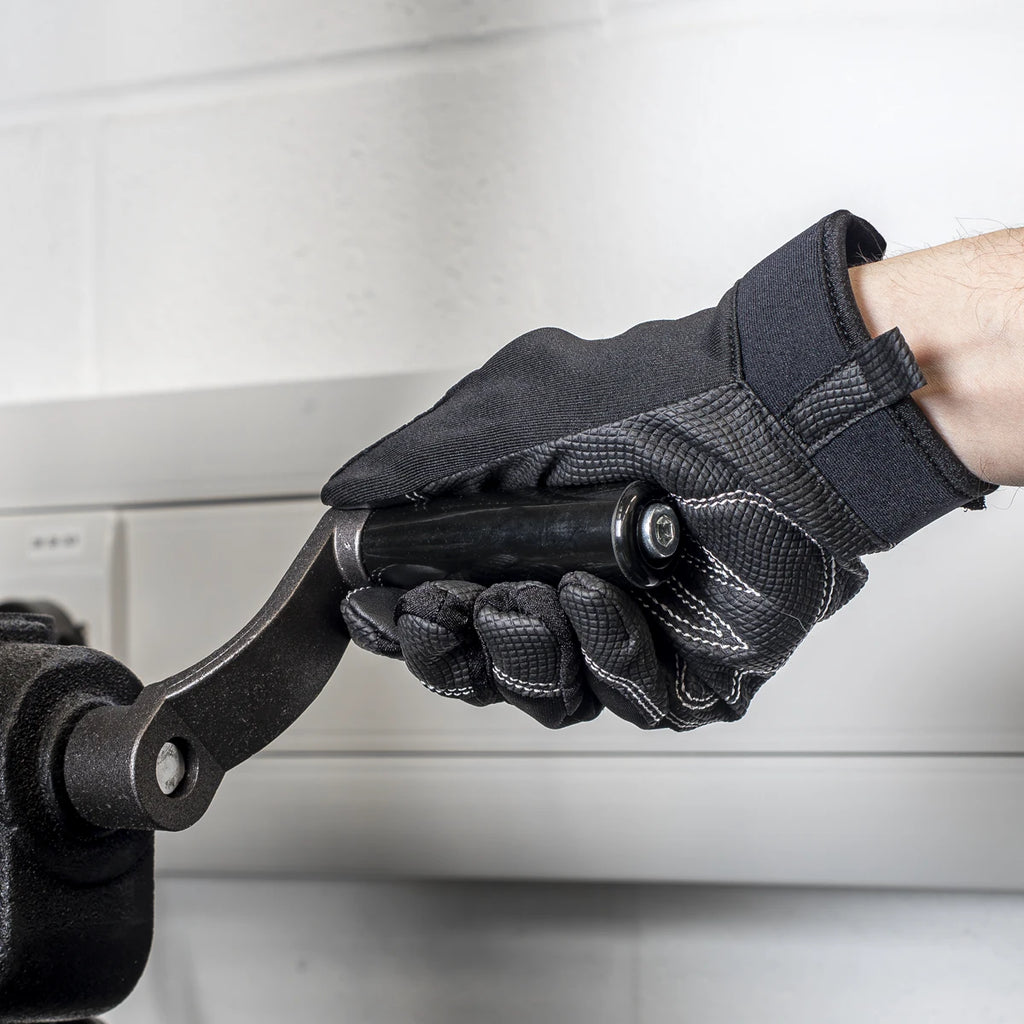

• Large sized square table fitted with precision rack and pinion height adjustment.
• 16mm(5/8") Capacity chuck, MT2.
• Height: 1050mm.
• Spindle Centre to Column: 165mm.
• Motor Power: 370W.
• Column Diameter: Ø73mm.
• Spindle Travel: 80mm.
• Weight: 45kg.
• 3 Year guarantee*.
Technical Data
|
Base Size:
|
450 x 270mm
|
|
Collar Diameter:
|
Ø55mm
|
|
Column Diameter:
|
Ø73mm
|
|
Drilling Capacity (Chuck Size):
|
16mm
|
|
Integral Work Light:
|
No
|
|
Maximum Distance Spindle to Base:
|
700mm
|
|
Maximum Distance Spindle to Table:
|
485mm
|
|
Motor Power (Start):
|
370W(600W)
|
|
Number of Speeds:
|
16
|
|
Optional Accessories:
|
PDM/KC - Keyless Pillar Drill Chuck 16mm
|
|
Overall Height:
|
1050mm
|
|
Speed Range:
|
190-3000rpm
|
|
Spindle Centre to Column:
|
165mm
|
|
Spindle Nose Taper:
|
MT2
|
|
Spindle Travel:
|
80mm
|
|
Supply:
|
230V
|
|
Swing:
|
330mm
|
|
Nett Weight:
|
45kg
|
|
Working Base Surface Size:
|
205 x 200mm
|
|
Working Table Surface Size:
|
254 x 254mm
|
|
Barcode:
|
5054511355956
|
