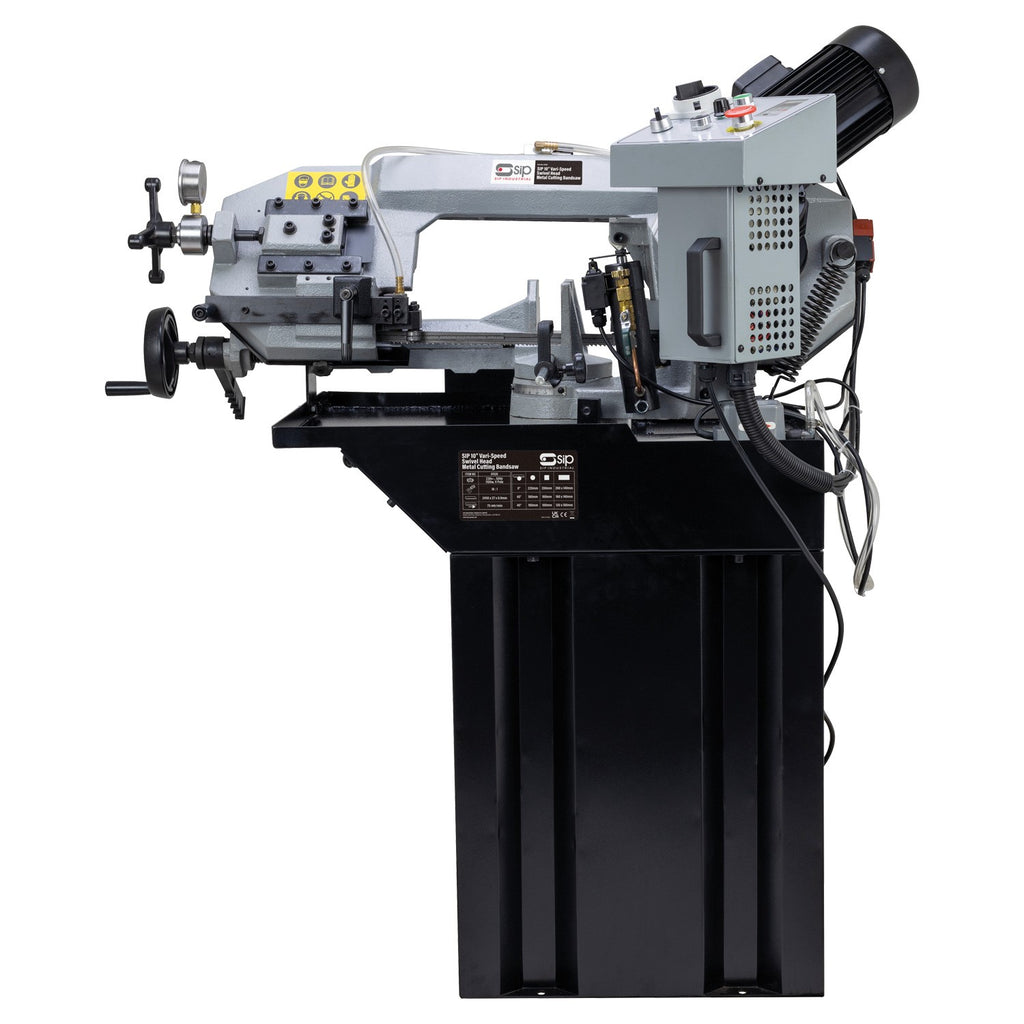

The SIP 10" Vari-Speed Swivel Head Metal Bandsaw is a powerful and accurate auto-cutting bandsaw ideal for cutting bar, tube and profile workpieces using a range of metal types, including mild steel, stainless steel, aluminium, copper, brass and alloys.
SIP Metal-Cutting Bandsaws are highly efficient, easy to use and safely cut metal to a high standard, helping to avoid use of manual cutting operations. They are an essential machine for metal and engineering workshops.
KEY FEATURES
- Variable speed inverter motor control
- Direct drive motor gearbox transmission
- Heavy-duty cast iron swivel bow head
- Semi-automatic cut-down function
- Adjustable cast iron vice
- Enhanced safety features
SIP 2-Year Standard Silver Warranty*
Full Specification
The SIP 10" Vari-Speed Swivel Head Metal Bandsaw is a powerful and accurate auto-cutting bandsaw ideal for cutting bar, tube and profile workpieces using a range of metal types, including mild steel, stainless steel, aluminium, copper, brass and alloys.
SIP Metal-Cutting Bandsaws are highly efficient, easy to use and safely cut metal to a high standard, helping to avoid use of manual cutting operations. They are an essential machine for metal and engineering workshops.
Applications & uses: Ideal for professional metal fabrication and engineering workshops. Suitable for cutting mild steel, stainless steel, aluminium, copper, brass and alloys. Cleanly cuts bar, tube and profile workpieces.
SIP 2-Year Standard Silver Warranty*

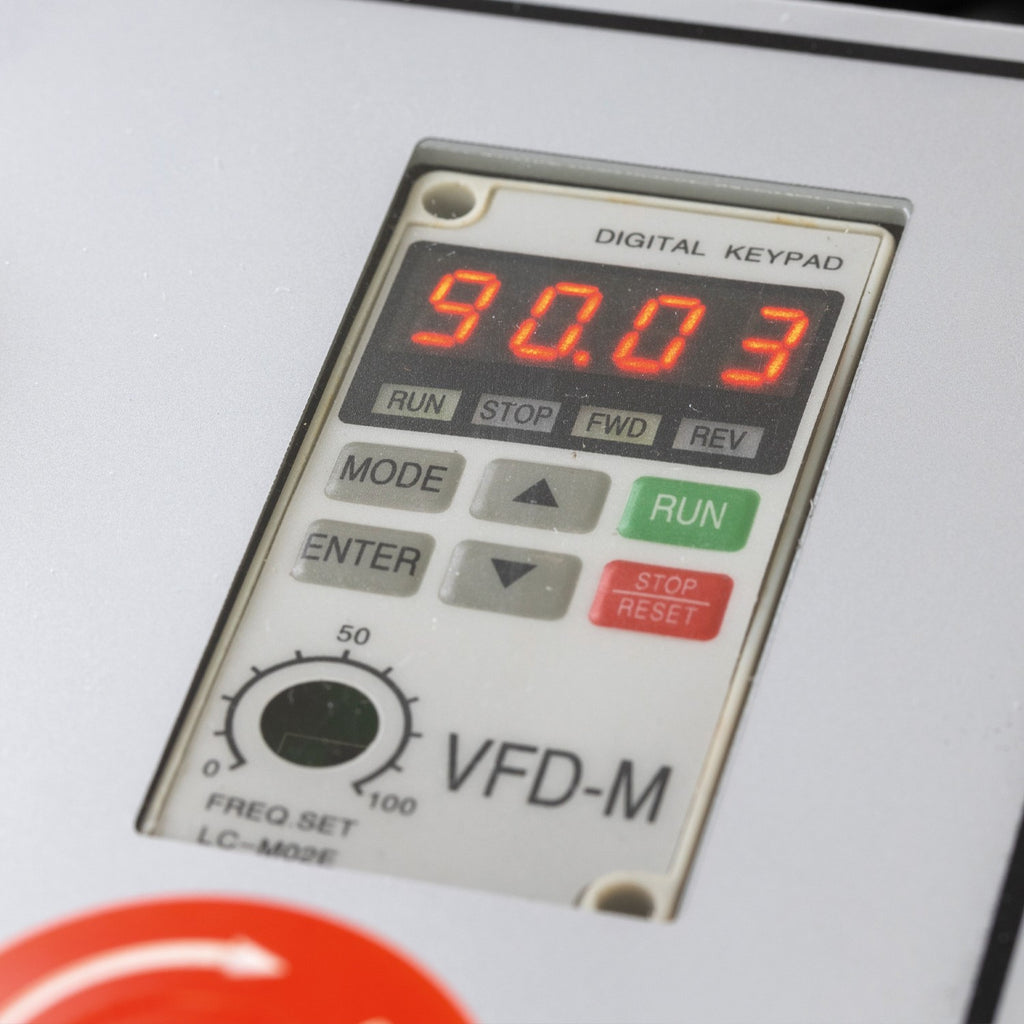

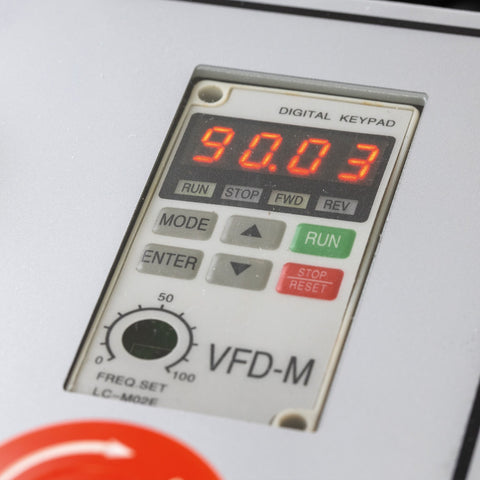

HIGH TORQUE VARIABLE SPEED INVERTER MOTOR CONTROL

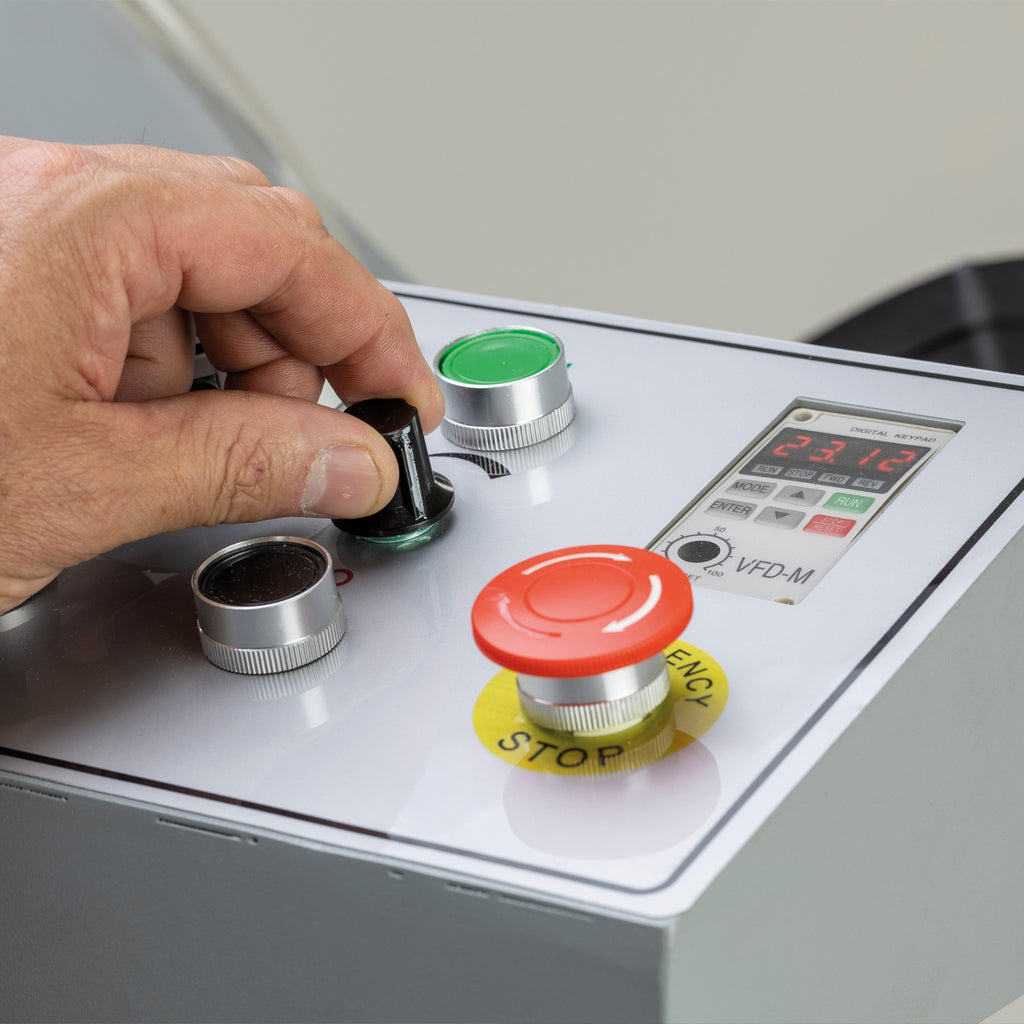

- Easy-to-control via a single dial, the infinitely variable speed range can be adjusted to quickly cut a variety of materials and thicknesses.
- The digital display indicates the cutting speed. The inverter motor control is fan-cooled allowing for continuous use.
DIRECT DRIVE MOTOR GEARBOX
- Direct-driven from the induction motor, the gearbox transmission system delivers positive and precise cutting, eliminating need for belt alignment or adjustment.

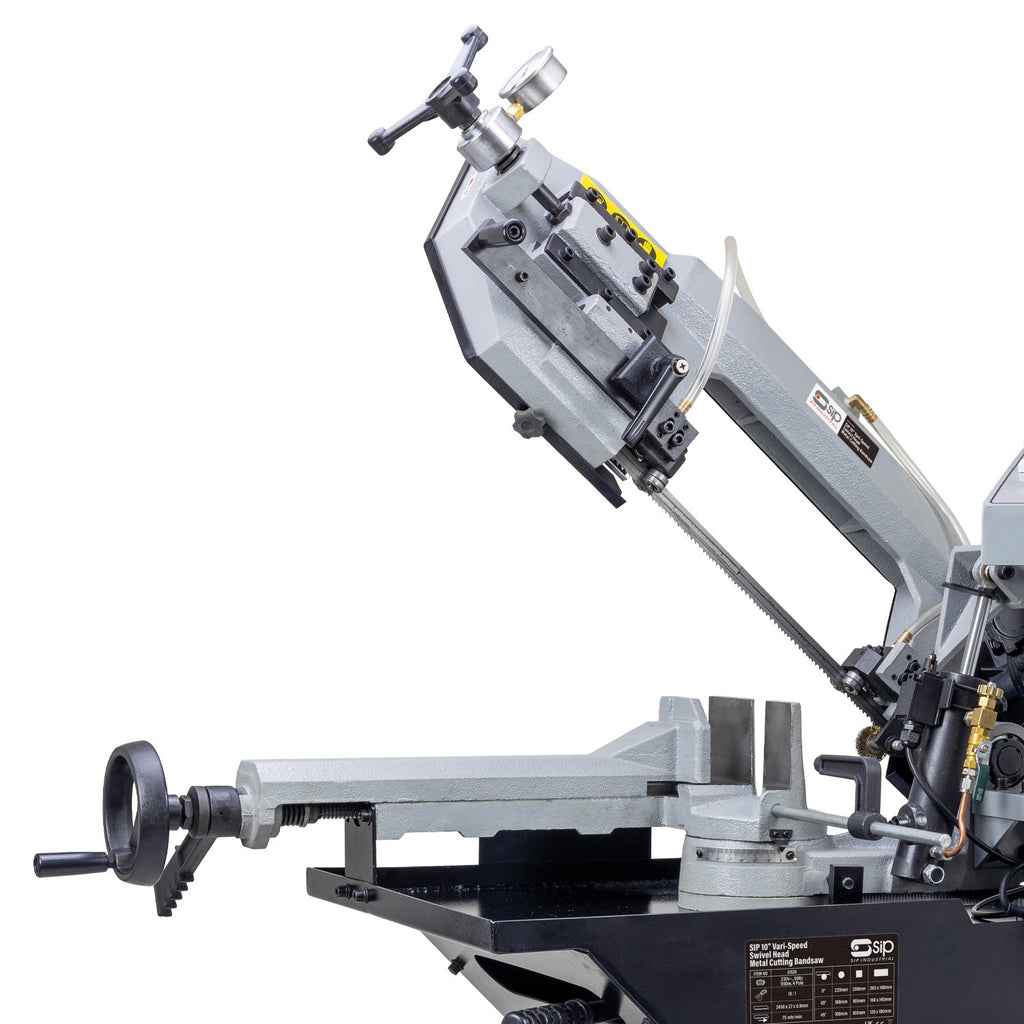

HEAVY-DUTY CAST IRON SWIVEL BOW HEAD
- The swivel head action allows cutting between 0° and 60° without moving workpiece from the vice.
- Fitted to a pressed steel base, this weighted machine provides a rigid cutting platform which helps to reduce vibration and increase cutting accuracy.
- Auto-stop cut function engages when the cutting process is complete.
- Supplied with bi-metal vari-pitch blade for enhanced cutting performance.
- A manual blade tensioner ensures the blade cuts cleanly and accurately. This optimises blade performance, removing any guesswork when processing materials.

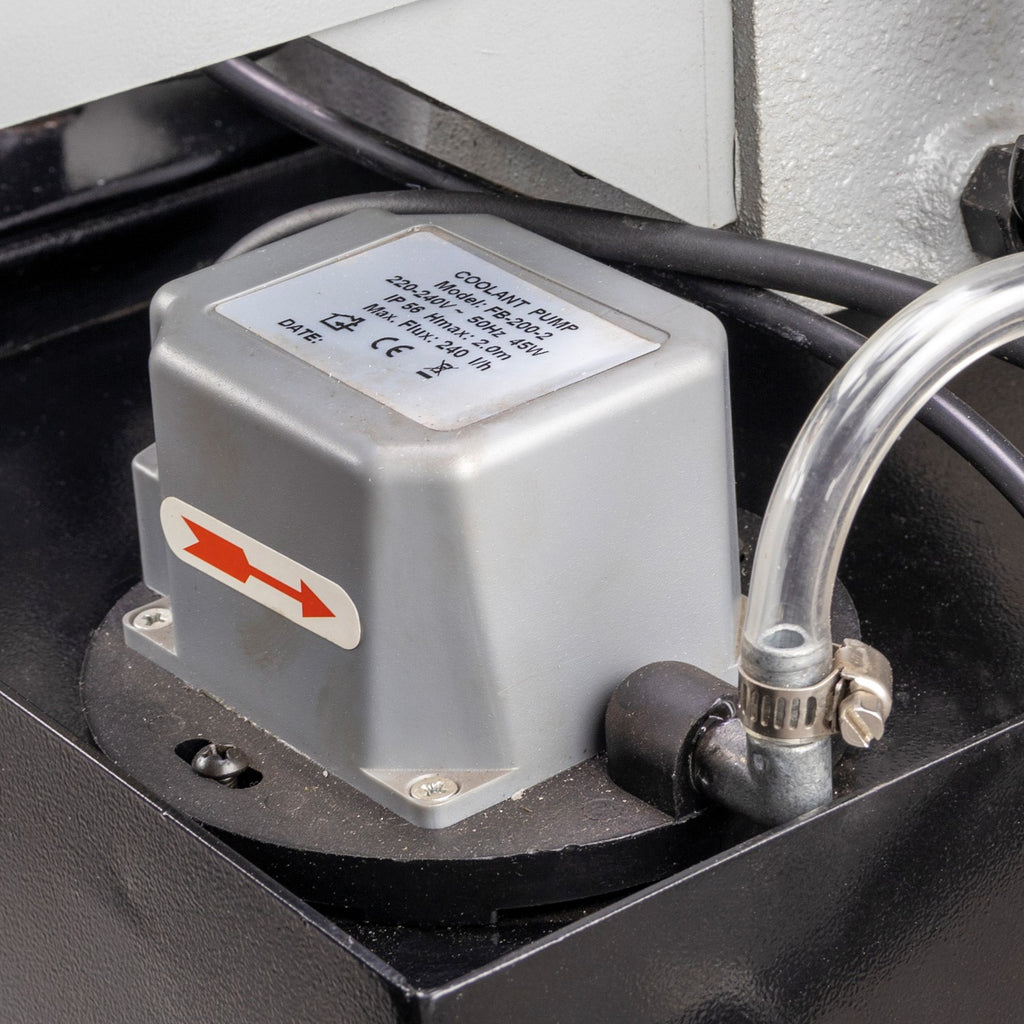

- Also fitted to the bow, a coolant system extends blade life and cools cutting area.
SEMI-AUTOMATIC CUT-DOWN FUNCTION
- Perfect for repetitive cutting, the auto-cut function can be easily engaged for swift and consistent cutting quality

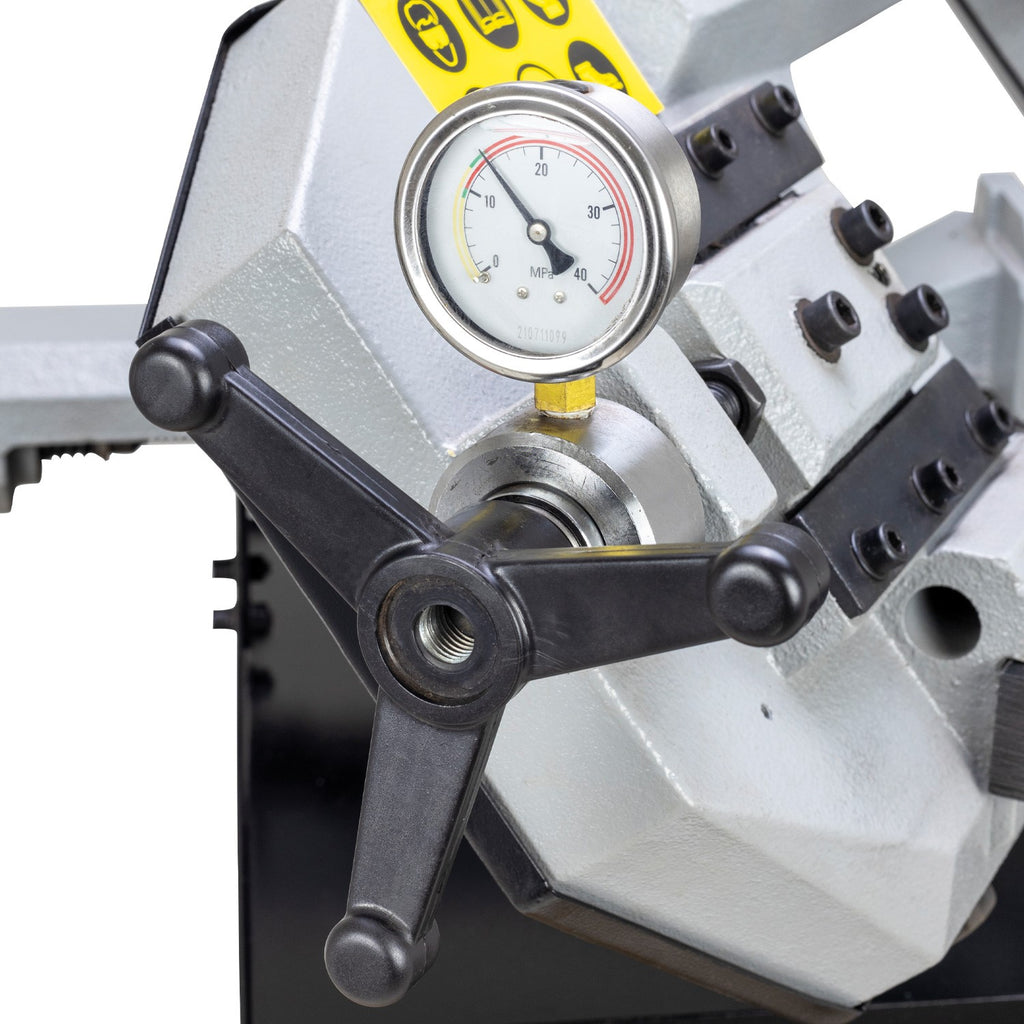

- An adjustable hydraulic ram dampener aids smooth cutting descent and control for greater blade performance.

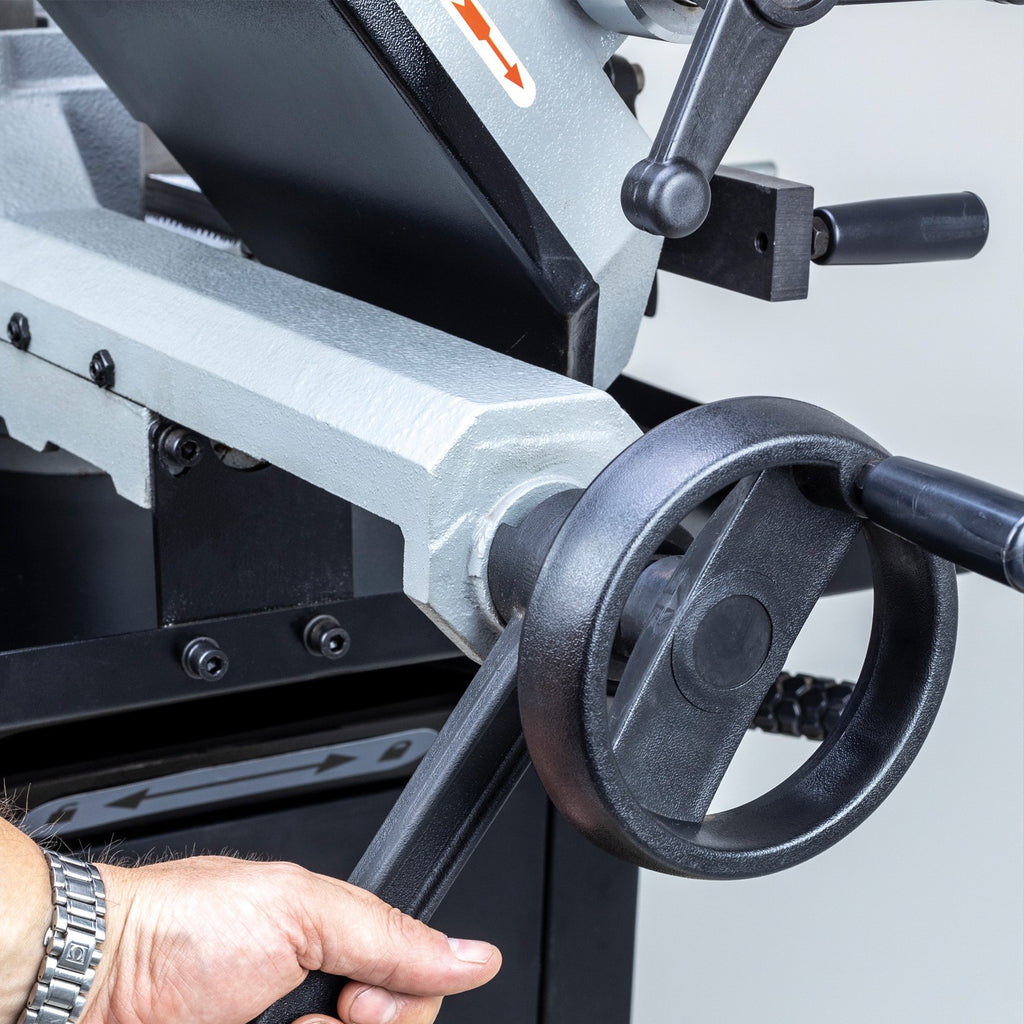

ADJUSTABLE CAST IRON VICE
- Cast iron vice securely holds the workpiece for precise cutting, whilst a quick-release handle ensures material can be quickly changed.
ENHANCED SAFETY FEATURES
- A low voltage (24v) control circuit minimises electric shock which limits harm to machine operators.
- Interlocking switches prevent saw running when blade guard is opened.
- Adjustable blade covers limit exposure during cutting for greater user safety.
Technical Information
ITEM NO. 01526 Input Supply: 230v (13A) Motor Power: 1.1kW (1.5hp) Transmission: Variable Speed Direct Drive Gearbox Blade Speed Range: 0mtr/min - 90mtr/min Blade Size: 2450mm x 27mm x 0.9mm Coolant System: Yes Angle Range: 0°, 30°, 45°, 60° Cutting Capacity @ 0°: 220mm 200mm 260mm x 140mm Cutting Capacity @ 30°: 190mm 180mm 200mm x 140mm Cutting Capacity @ 45°: 160mm 160mm 160mm x 140mm Cutting Capacity @ 60°: 100mm 100mm 120mm x 100mm Net Weight: 170.00kg Gross Weight: 190.00kg Product Dimensions: 1138(H) x 750(W) x 130mm(D) Packaged Dimensions: 1120(H) x 460(W) x 1280mm(D)
