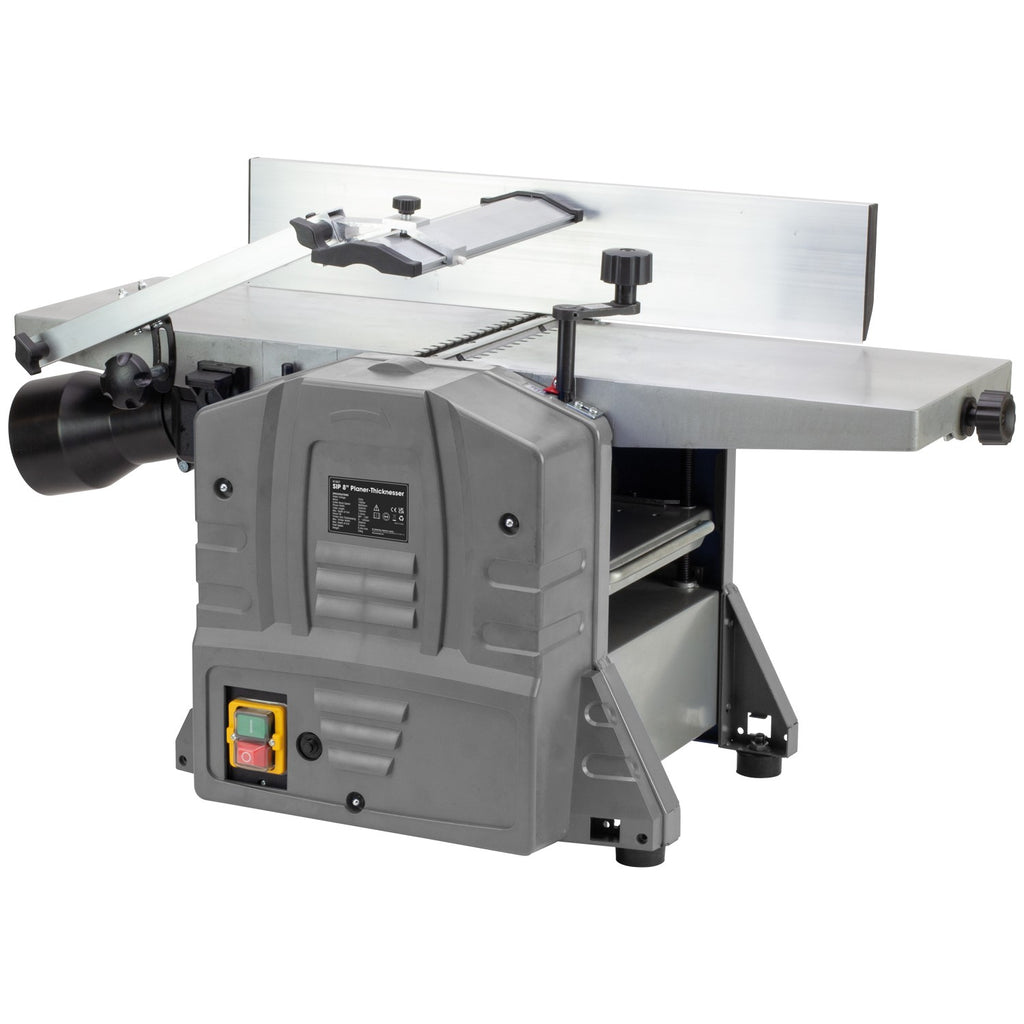

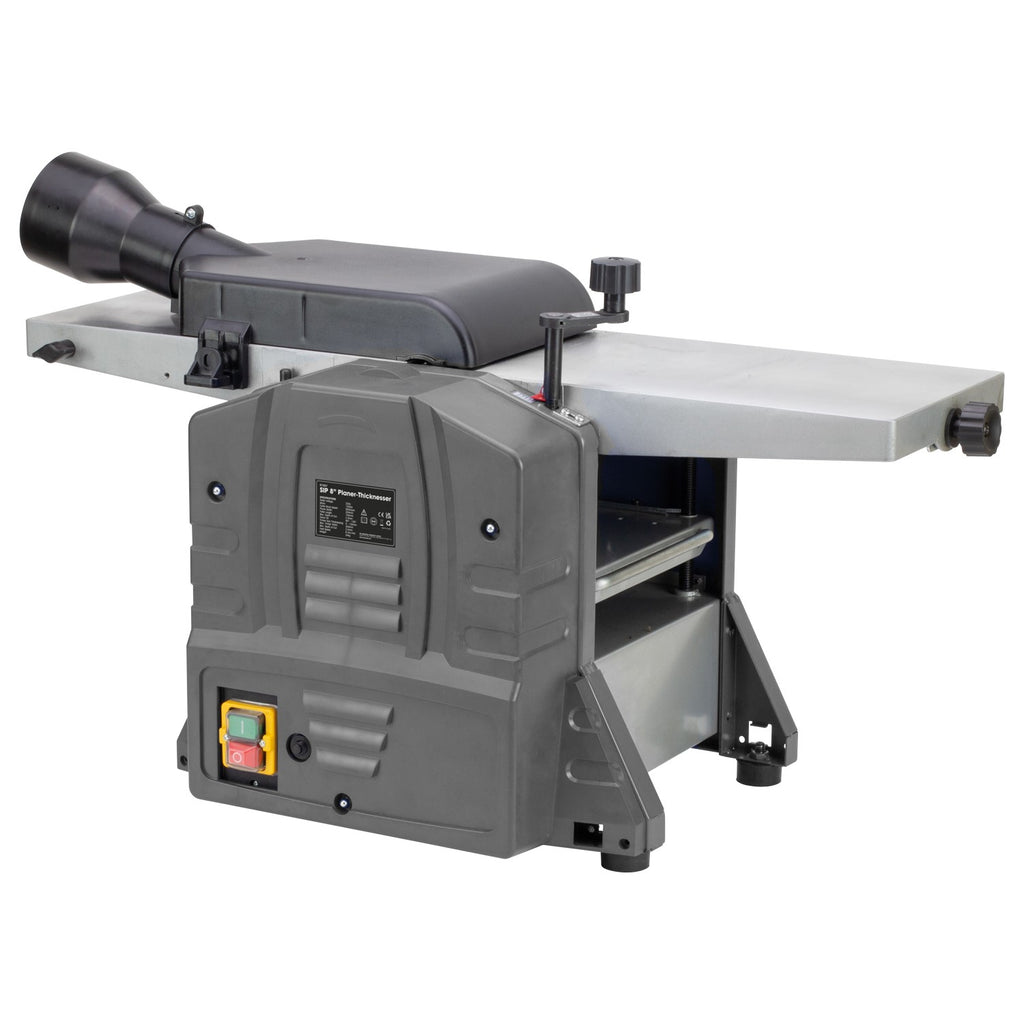

The SIP 8" x 5" Planer Thicknesser is designed for efficient plaining and trimming of workpieces to uniform thicknesses and width, comfortably removing large amount of material in one pass, making sure that all boards, planks, and surfaces are consistent.
For machine longevity, this planer thicknesser must be operated with an attached dust extractor. Recommended extractors for this machine are the SIP 50ltr Dust & Chip Collector (01923) or SIP 1hp Portable Single Bag Dust Collector (01963).
KEY FEATURES
- 204mm planer width and 2.5mm max. cutting depth
- Adjustable 90° to 135° fence tilting for versatility
- Quality machine-surfaced cast aluminium table tops
- Power-fed rollers for a consistently smooth finish
- Perfect for both square and chamfered plaining
SIP 2-Year Standard Silver Warranty
Full Specification
The SIP 8" x 5" Planer Thicknesser is designed for efficient plaining and trimming of workpieces to uniform thicknesses and width, comfortably removing large amount of material in one pass, making sure that all boards, planks, and surfaces are consistent.
For machine longevity, this planer thicknesser must be operated with an attached dust extractor. Recommended extractors for this machine are the SIP 50ltr Dust & Chip Collector (01923) or SIP 1hp Portable Single Bag Dust Collector (01963).
SIP 2-Year Standard Silver Warranty
- 204mm planer width and 2.5mm max. cutting depth

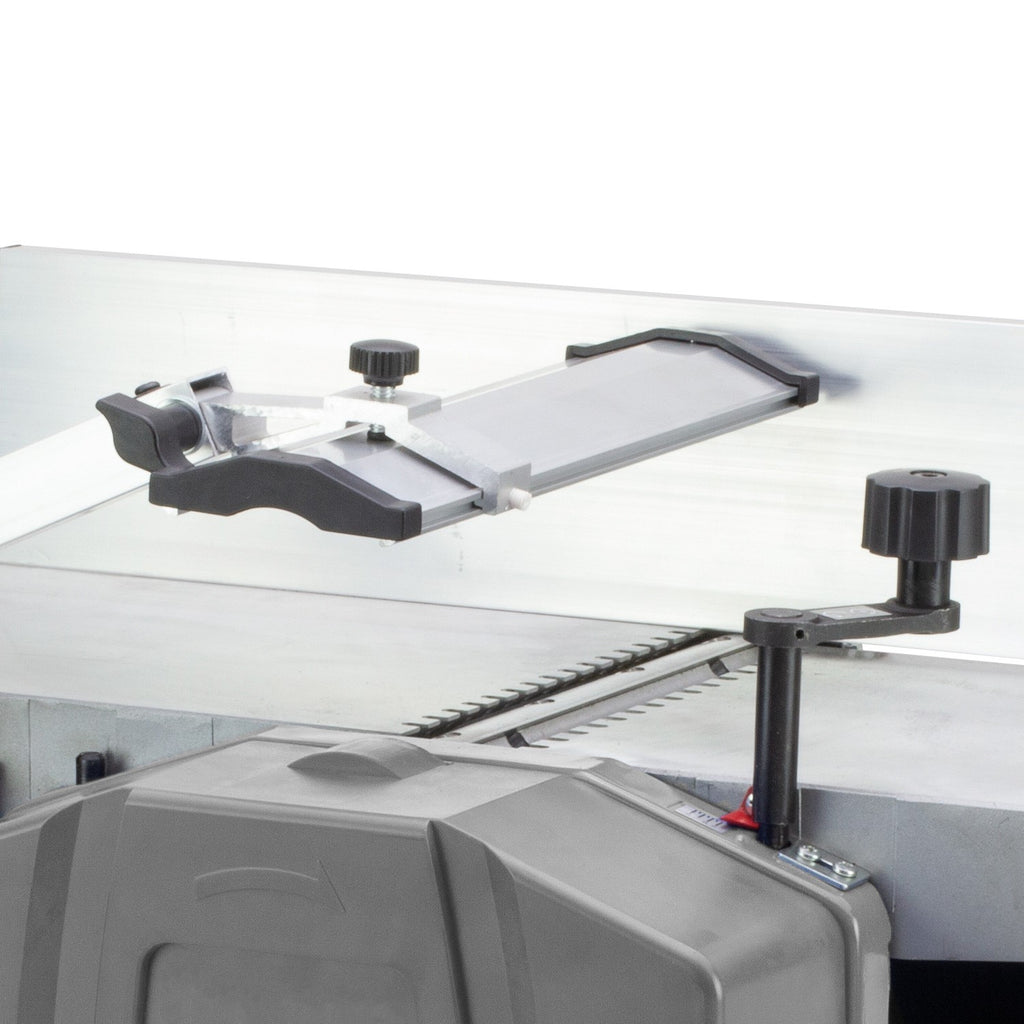

- Adjustable 90° to 135° fence tilting for versatility

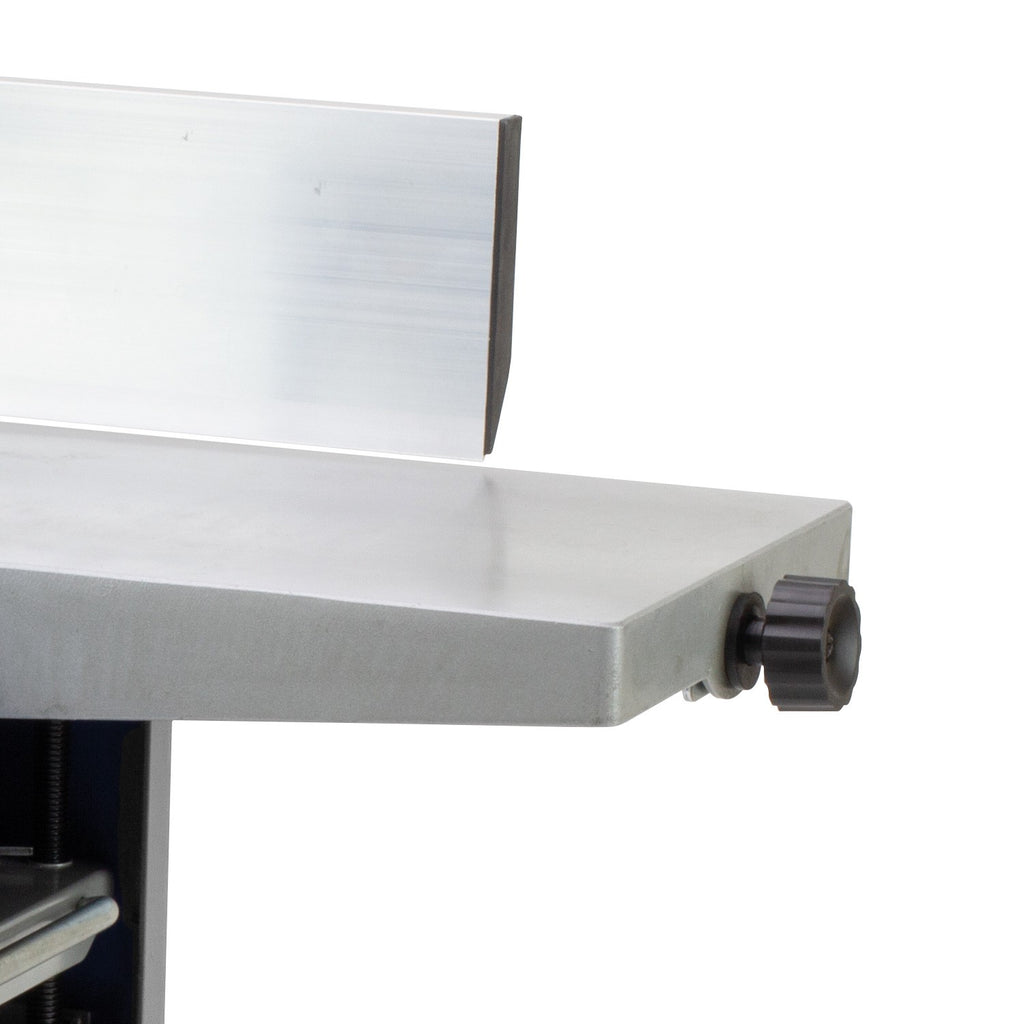

- Machine-surfaced cast aluminium tables for accurate plaining of larger timber
- Power-fed rollers for a consistently high performance and a smooth finish

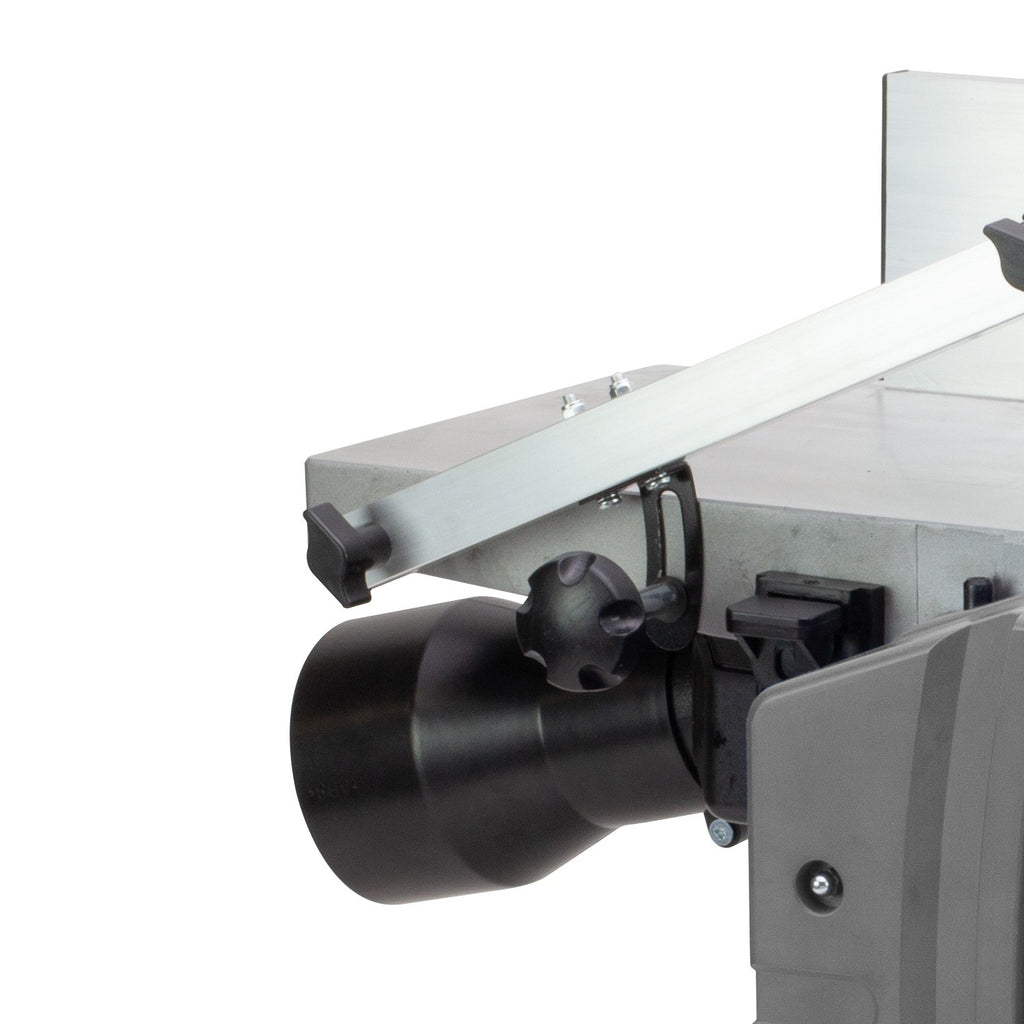

- Built-in dust extraction port and expander adaptor
- Fitted with reliable safety interlock switches
- Perfect for both square and chamfered plaining
- Integrated NVR switch for added safety
- SIP 2-Year Standard Silver Warranty
Technical Information
| ITEM NO. | 01557 |
| Input Supply: | 230v (13A) |
| Motor Power: | 1.5kW (2hp) |
| Cutter Block Speed: | 9000rpm |
| Dust Extraction Outlet (ID/OD): | 55mm / 62mm |
| Dust Extraction Adaptor (ID/OD): | 63mm / 68mm |
| Planer Width: | 204mm |
| Table Height: | 355mm |
| Table Length: | 740mm |
| Fence Tilting: | 90° - 135° |
| Max. Cutting Depth: | PLANING; 2.5mm THICKNESSING; 2mm |
| Timber Size Range: | 5mm - 120mm |
| Max. Timber Width: | 204mm |
| Noise Level: | 105db(A) |
| Net Weight: | 24.00kg |
| Gross Weight: | 27.76kg |
| Product Dimensions: | 490(H) x 980(W) x 460mm(D) |
| Packaged Dimensions: | 850(H) x 430(W) x 460mm(D) |
