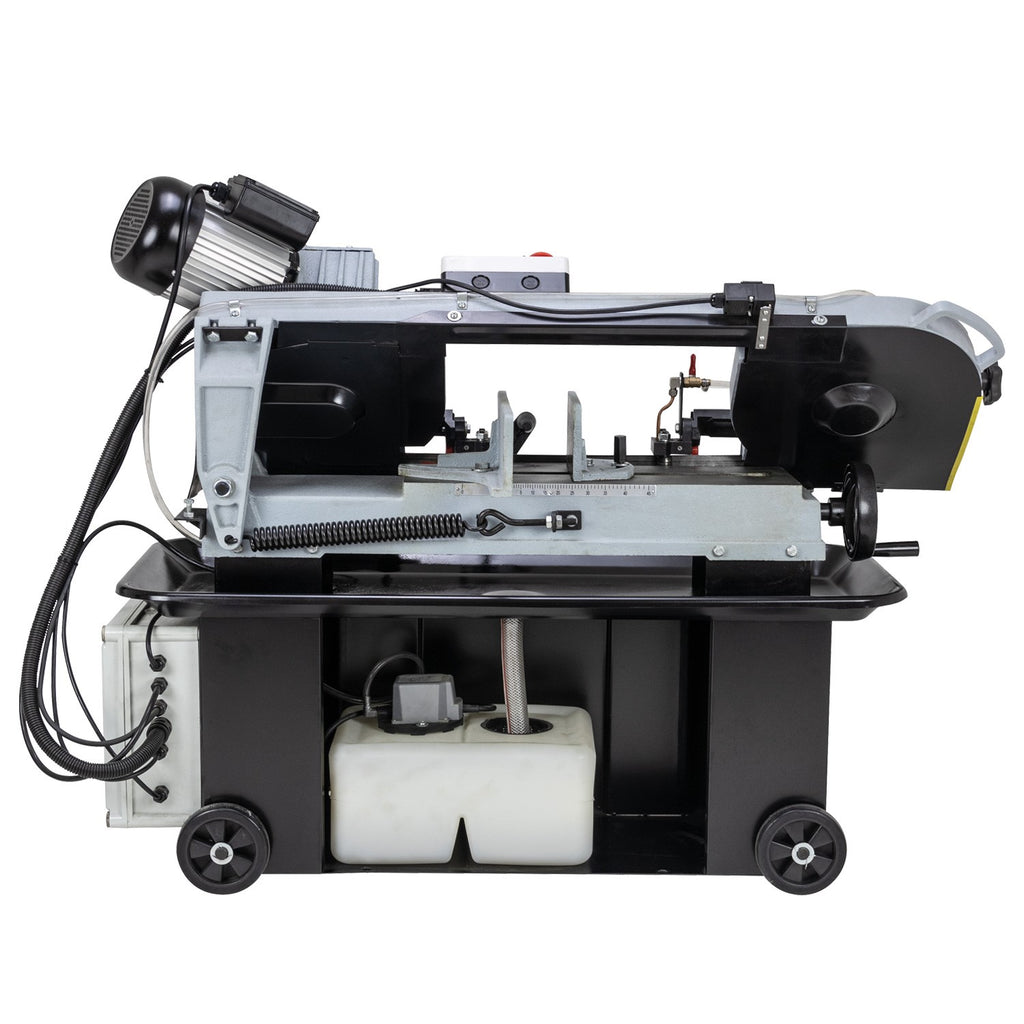

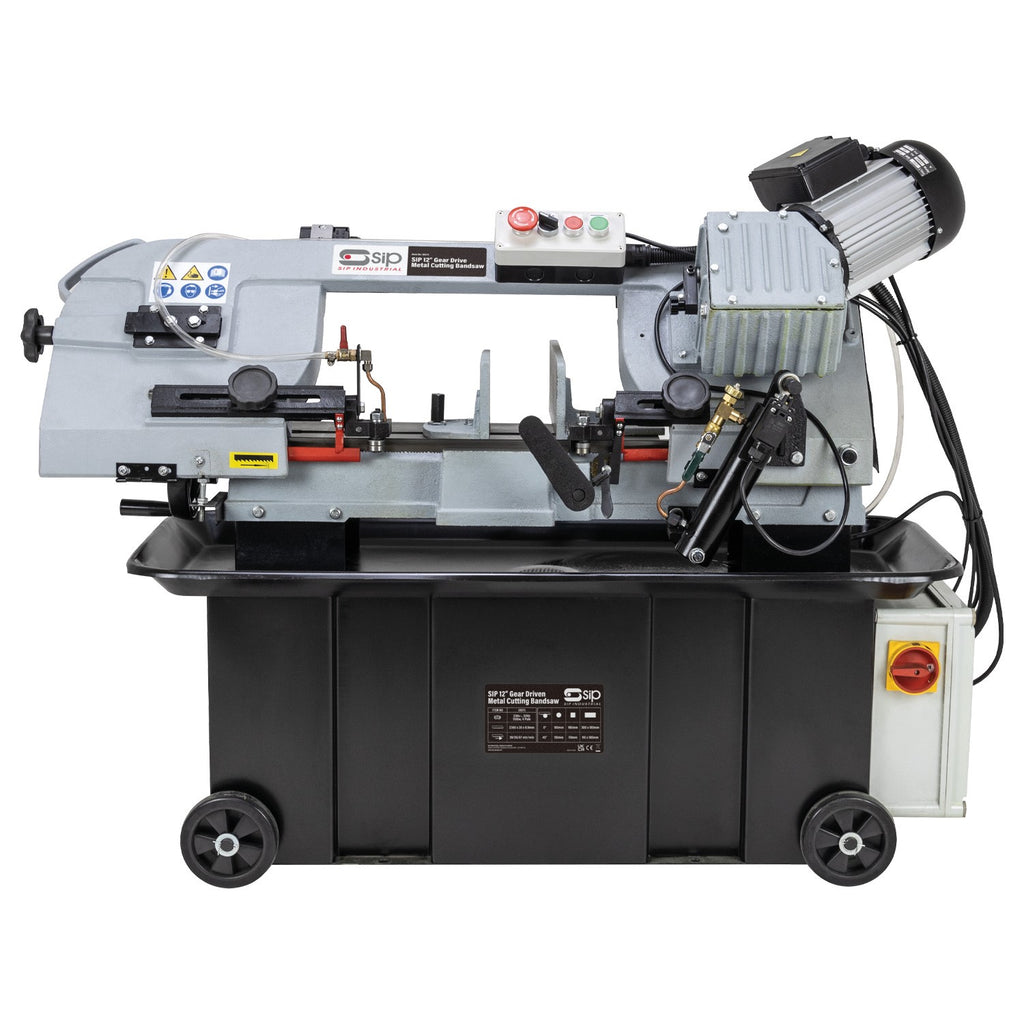

The SIP 12" Gear Drive Metal Bandsaw is a powerful and accurate gearbox-driven bandsaw tool ideal for cutting bar, tube and profile workpieces using a range of metal types. This includes mild steel, stainless steel, aluminium, copper, brass and alloys.
SIP Metal-Cutting Bandsaws are highly efficient, easy to use and safely cut metal to a high standard, helping to avoid use of manual cutting operations. They are an essential machine for metal and engineering workshops.
KEY FEATURES
- Three-speed direct drive motor gearbox
- Heavy-duty cast iron fixed head bow
- Adjustable cast iron vice
- Enhanced safety features
SIP 2-Year Standard Silver Warranty*
Full Specification
The SIP 12" Gear Drive Metal Bandsaw is a powerful and accurate gearbox-driven bandsaw tool ideal for cutting bar, tube and profile workpieces using a range of metal types. This includes mild steel, stainless steel, aluminium, copper, brass and alloys.
SIP Metal-Cutting Bandsaws are highly efficient, easy to use and safely cut metal to a high standard, helping to avoid use of manual cutting operations. They are an essential machine for metal and engineering workshops.
Applications & uses: Ideal for professional metal fabrication and engineering workshops. Suitable for cutting mild steel, stainless steel, aluminium, copper, brass and alloys. Cleanly cuts bar, tube and profile workpieces.
SIP 2-Year Standard Silver Warranty*

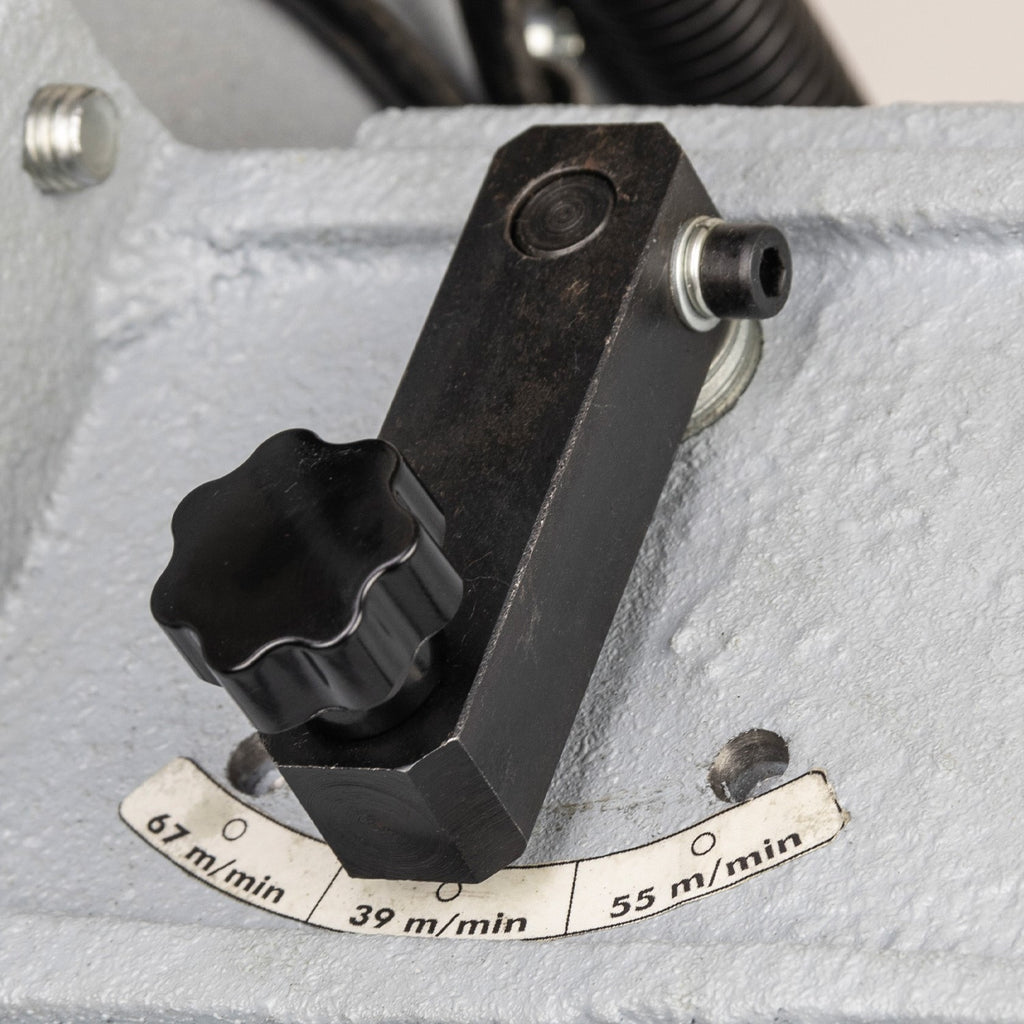

3-SPEED DIRECT DRIVE MOTOR GEARBOX
- A quick-change switch enables easy selection of the blade cutting speeds compared to belt-driven bandsaws. This increases versatility of the saw as a large range of materials can be cut quickly.

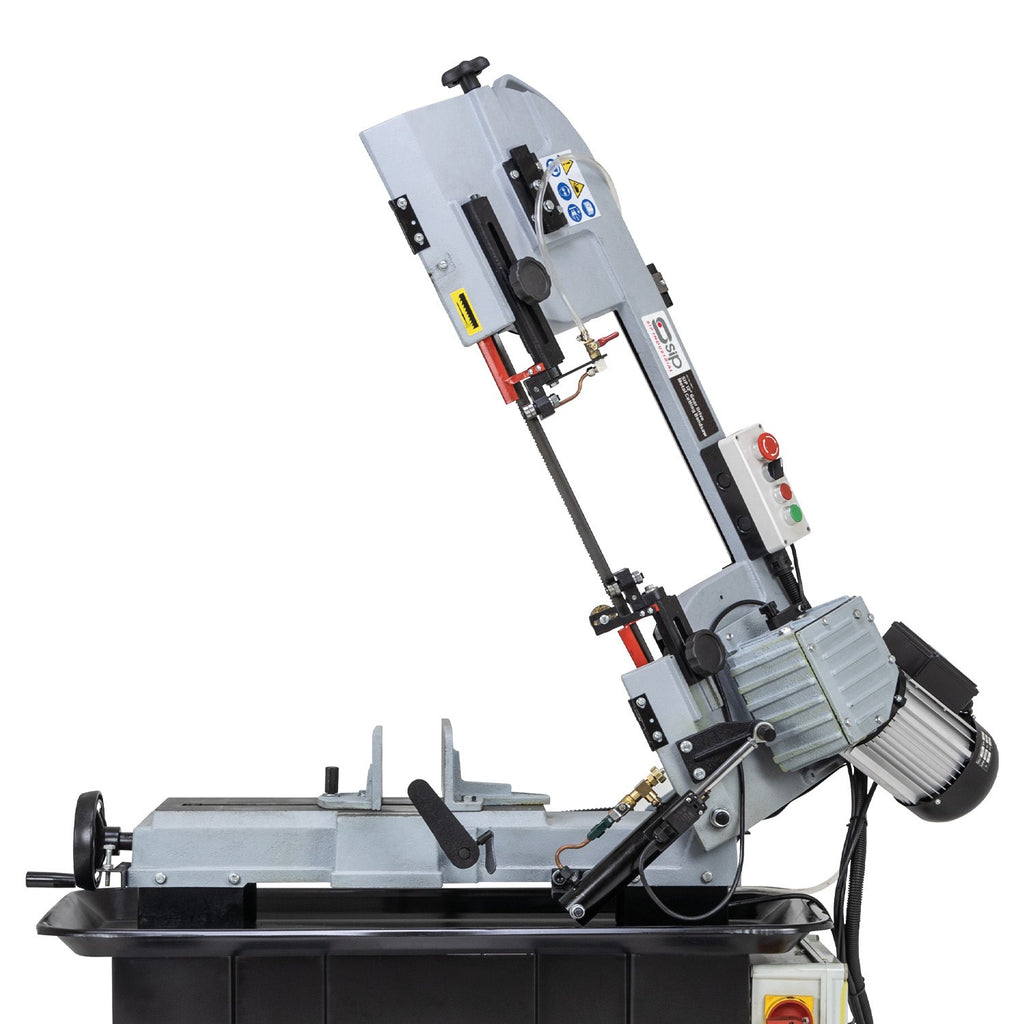

HEAVY-DUTY CAST IRON FIXED HEAD BOW
- The bow action allows cutting between 0° and 45° using an adjustable vice.
- Fitted to a wheel-mounted steel base, this weighted machine provides a rigid cutting platform which helps to reduce vibration and increasing cutting capacity.

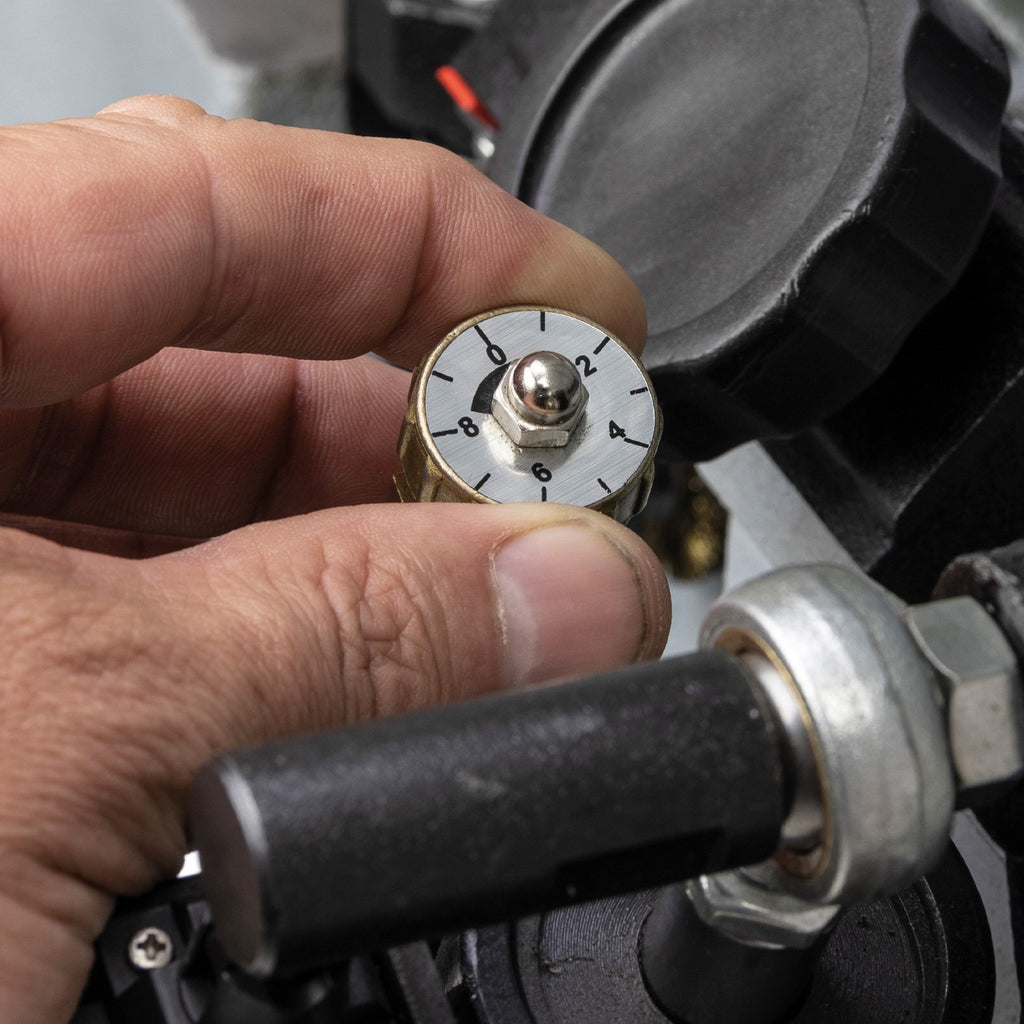

- An adjustable hydraulic ram dampener aids smooth cutting descent and control for greater blade control.
- Auto-stop cut function engages when the cutting process is complete.
- Supplied with bi-metal vari-pitch blade for enhanced cutting performance.
- A manual blade tensioner ensures the blade cuts cleanly and accurately.
- Also fitted to the bow, a coolant system extends blade life and cools cutting area.

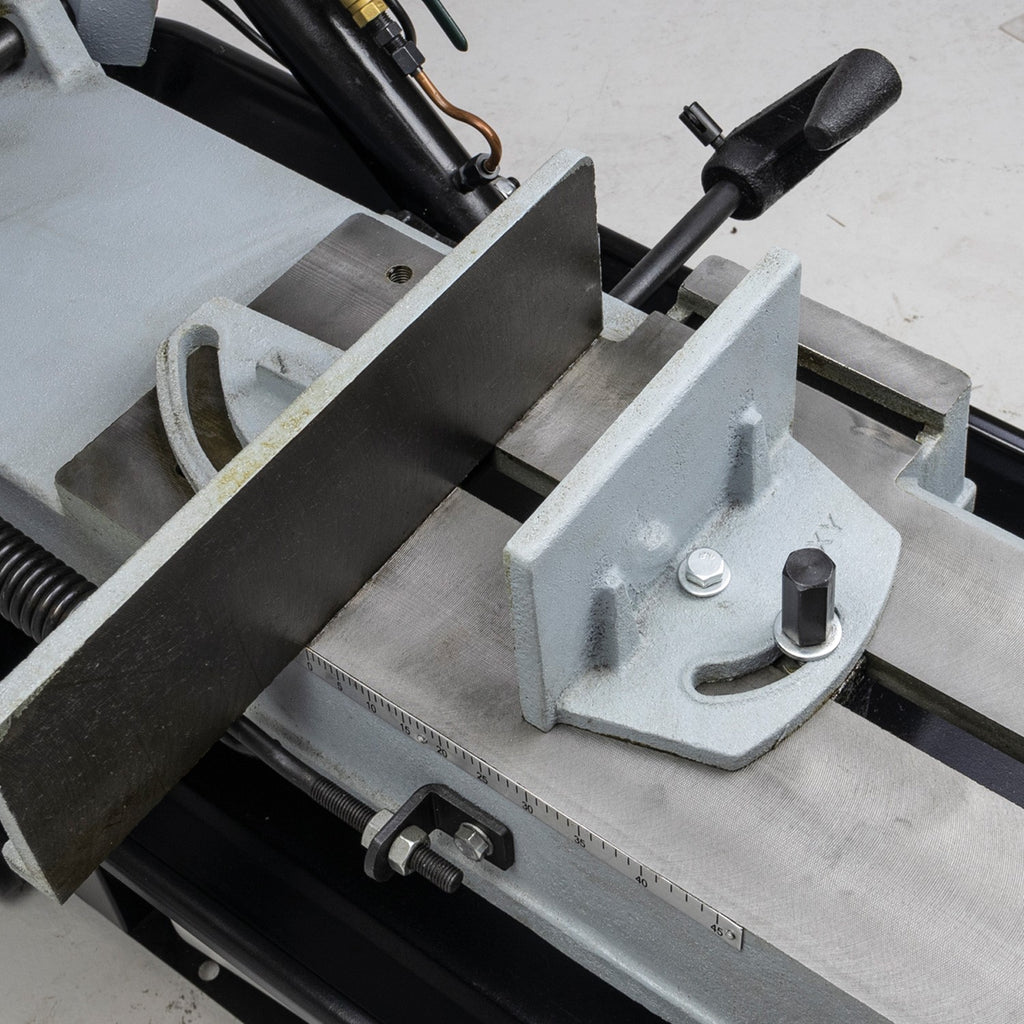

ADJUSTABLE CAST IRON VICE
- Cast iron vice securely holds the workpiece for precise cutting.

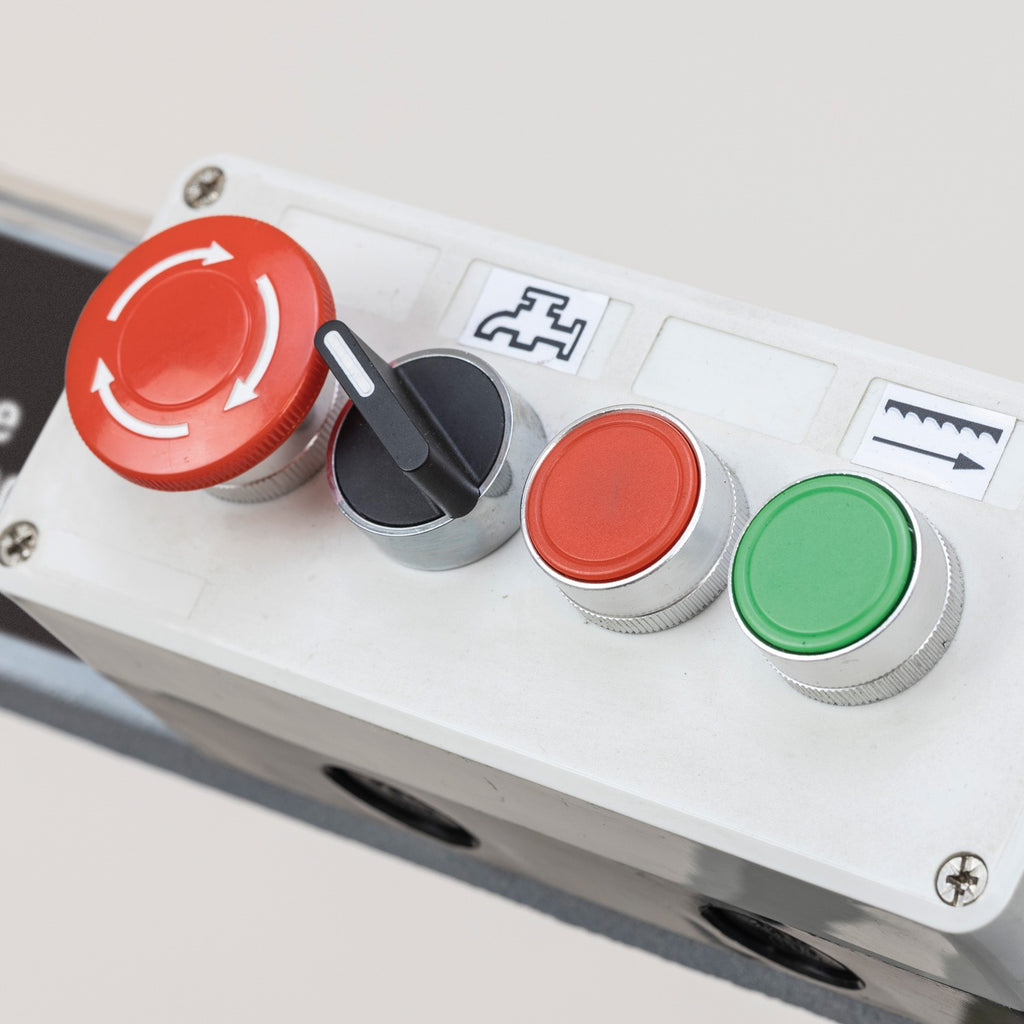

ENHANCED SAFETY FEATURES

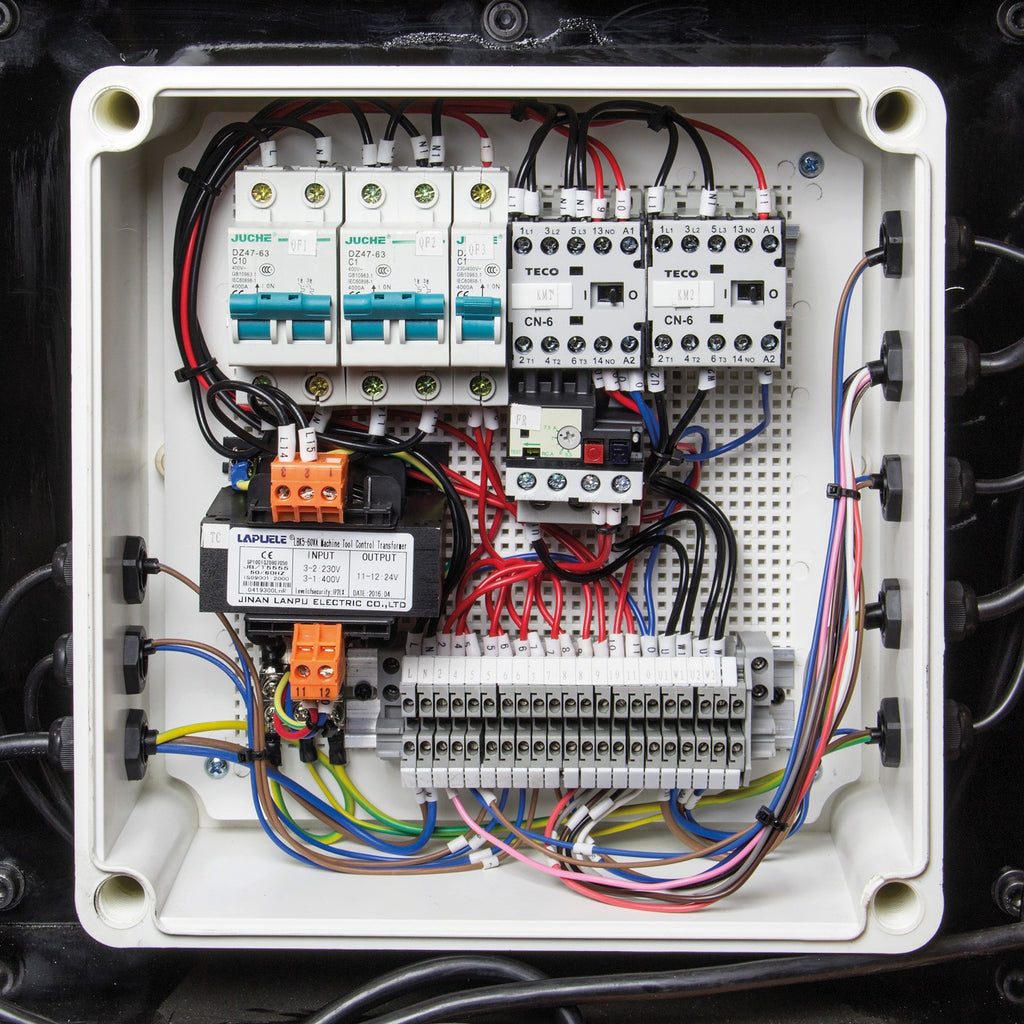

- A low voltage (24v) control circuit minimises electric shock which limits harm to machine operators.
- Interlocking switches prevent the saw running when the blade guard or belt pulley covers are opened.
- Adjustable blade covers limit exposure during cutting for greater user safety.
Technical Information
ITEM NO. 01573 Input Supply: 230v (13A) Motor Power: 1.1kW (1.5hp) Transmission: Direct Drive 3-Speed Gearbox Blade Speed Range: 39mtr/min / 55mtr/min / 67mtr/min Blade Size: 2360mm x 20mm x 0.9mm Coolant System: Yes Cutting Capacity @ 0°: 180mm 180mm 300mm x 180mm Cutting Capacity @ 45°: 110mm 110mm 110mm x 180mm Net Weight: 170.00kg Gross Weight: 190.00kg Product Dimensions: 950(H) x 510(W) x 1180mm(D) Packaged Dimensions: 1120(H) x 460(W) x 1280mm(D)
