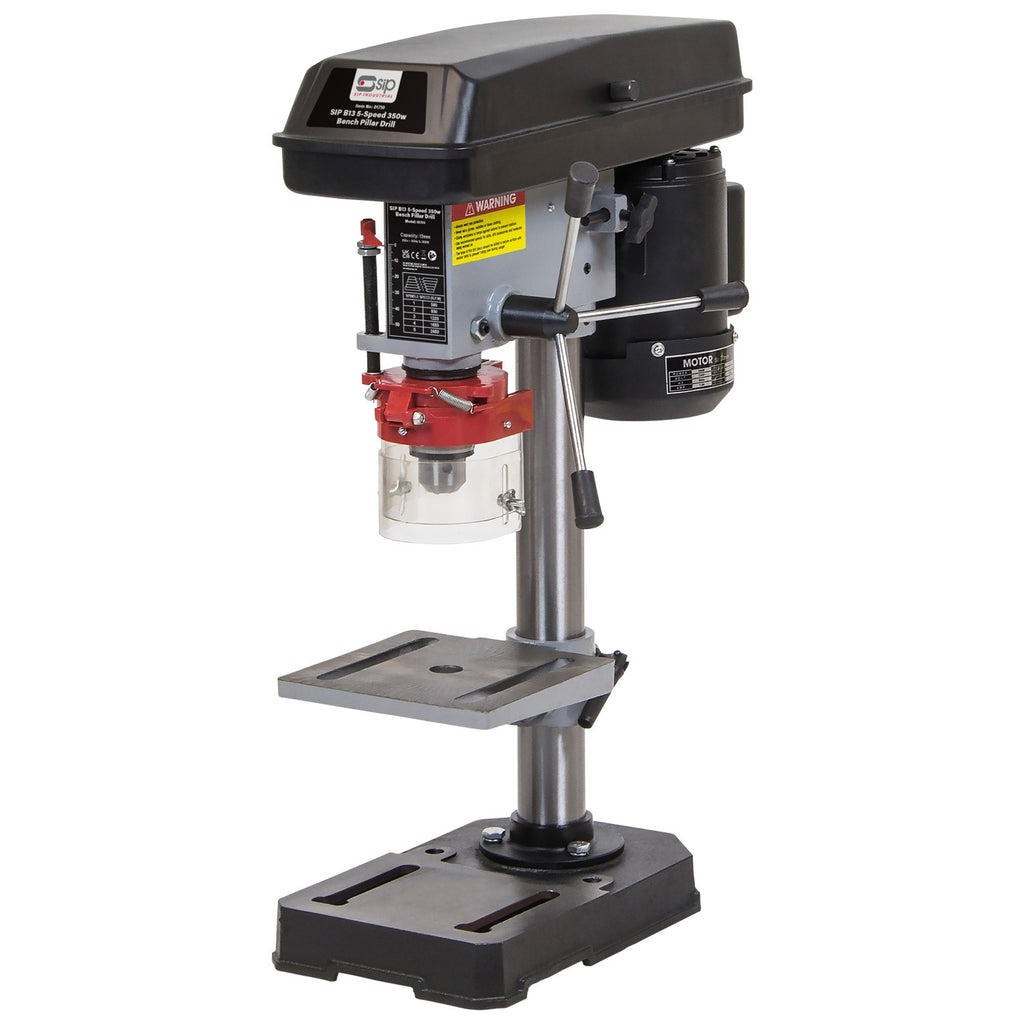

The SIP B13 5-Speed 350w Bench Pillar Drill makes light work of preparing and finishing workpiece materials including ferrous and non-ferrous metals, woods and plastics. Using an adjustable tilting table, the drill can be easily positioned to enable accurate drilling.
KEY FEATURES
- 5 spindle speeds powered by a 350w motor from a 230v (13A) supply
- Supports a variety of drilling applications
- High-power brushless induction motor
- Fitted with drilling depth stop
- Adjustable drill table for greater accuracy
- Safety interlock switch for safe motor belt adjustment
SIP 2-Year Standard Silver Warranty*
Full Specification
The SIP B13 5-Speed 350w Bench Pillar Drill makes light work of preparing and finishing a variety of workpiece materials including ferrous and non-ferrous metals, woods and plastics. Using an adjustable tilting table, the drill can be easily positioned to enable accurate drilling.
Longevity and safety are paramount to this pillar drill, using integrated chuck guards to reduce user risk and a sturdy cast iron base for added stability. With a bench-mounted design, it is perfect for a range of home workshop applications with limited floor space.
Applications & uses: Suitable for ferrous and non-ferrous metals, woods and plastics, pilot, blind and general drilling applications, small bracketry, and home metalwork and woodwork applications
SUPPORTS A VARIETY OF DRILLING APPLICATIONS
- Compatible with materials including ferrous and non-ferrous metals, hard and soft woods and high-density plastics.
MULTI-SPEED FUNCTIONALITY
- Allows precise control of hole sizes across the drilling spectrum.
HIGH-POWER BRUSHLESS INDUCTION MOTOR
- Delivers powerful performance for consistent high-quality drilling.
INTUITIVE FEATURES FOR EASE-OF-USE
- Adjustable drilling table and 3-lever handle ensures smooth drilling force.
FITTED WITH DRILLING DEPTH STOP
- Accurately maintains a quality of repetitive or blind hole drilling, helping to minimise material wastage.
SAFETY INTERLOCK SWITCH
- Allows the user to adjust the motor belt with confidence knowing the drill cannot start-up accidentally
Technical Information
ITEM NO. 01710 Input Voltage: 230v (13A) Motor Power: 350w No. of Speeds: 5 speeds Speed Range: 580rpm - 2650rpm Drill Bit Size: 1.5mm - 13mm Max. Drilling Capacity: 13mm Spindle Taper: B16 Table Size: 160mm x 160mm Base Size: 290mm x 182mm Column Diameter: Ø 46mm Swing: 210mm Height: 580mm Spindle Travel: 50mm Collar Diameter: Ø N/A Max. Distance: 169mm (chuck to table)
250mm (chuck to base)Net Weight: 14.00kg Gross Weight: 15.00kg Product Dimensions: Packaged Dimensions: 245(H) x 450(W) x 345mm(D)
