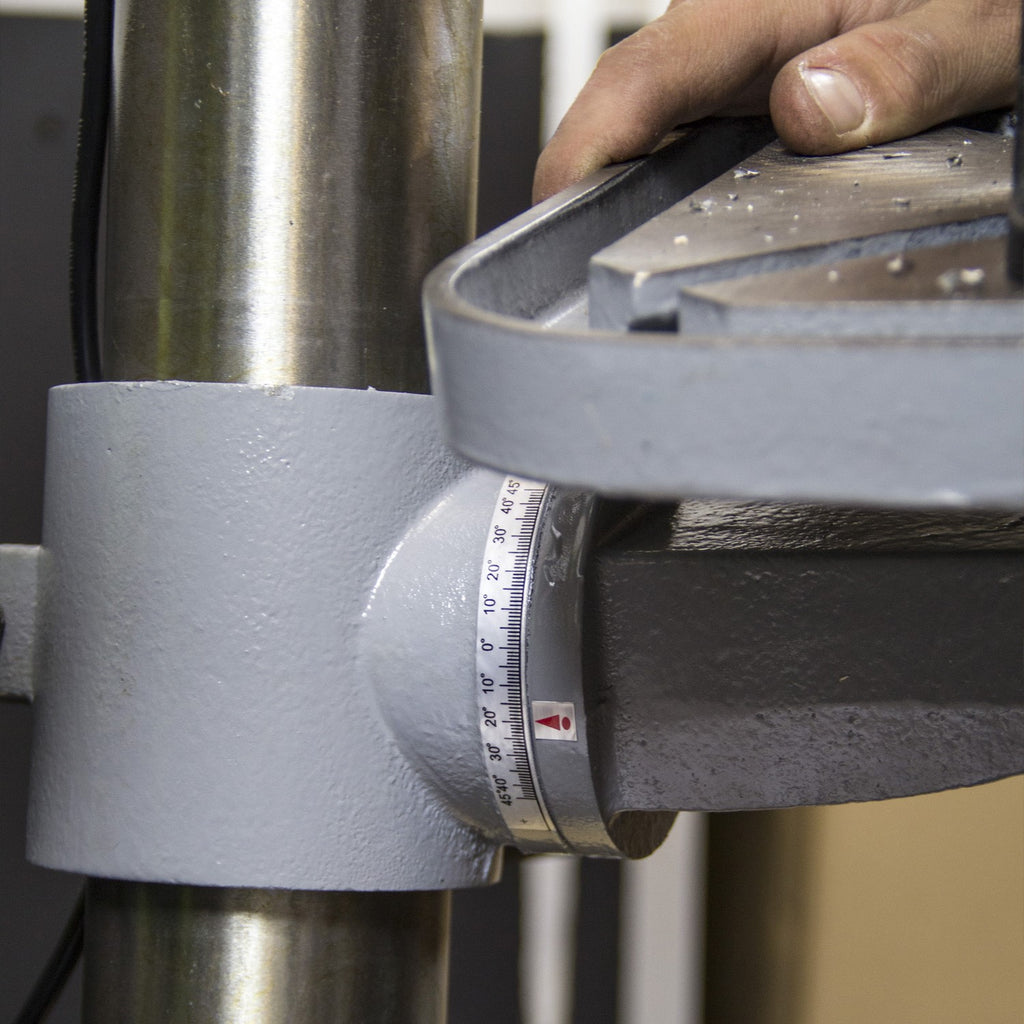

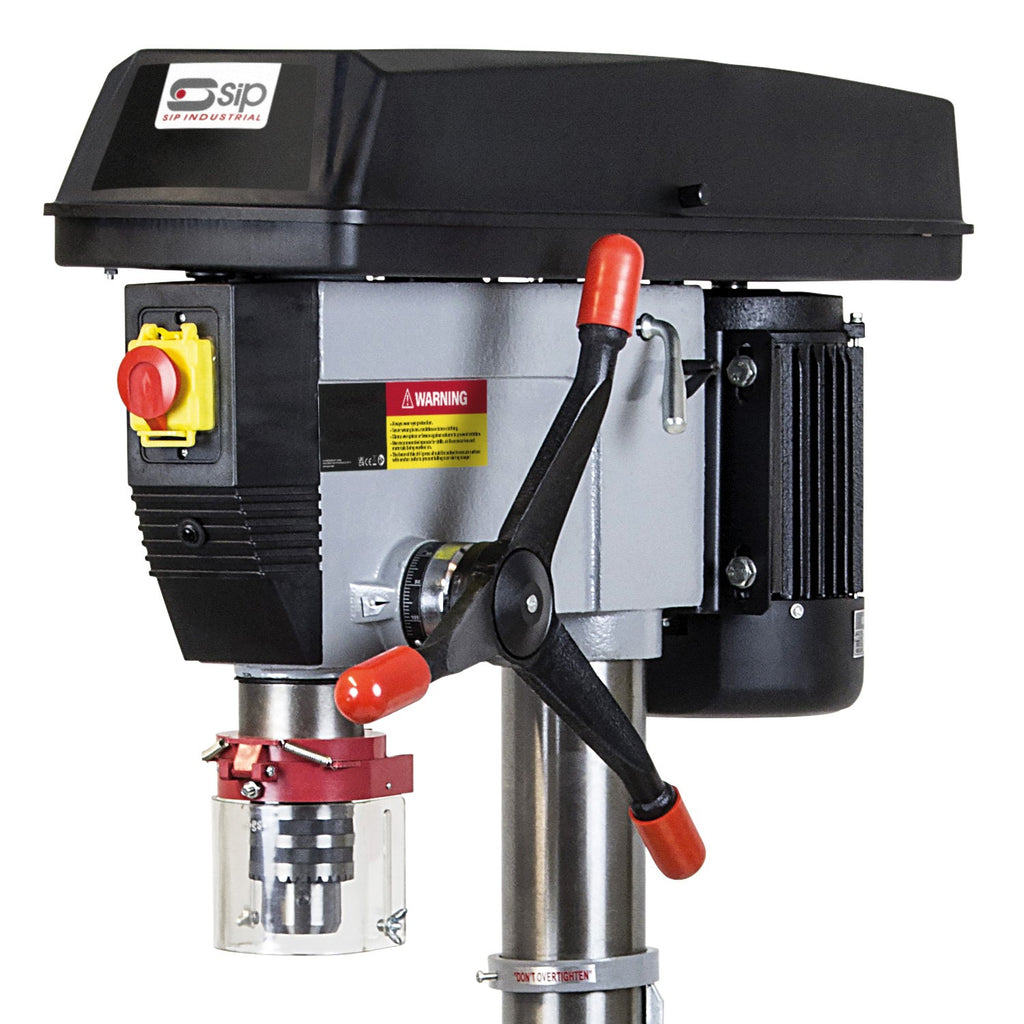

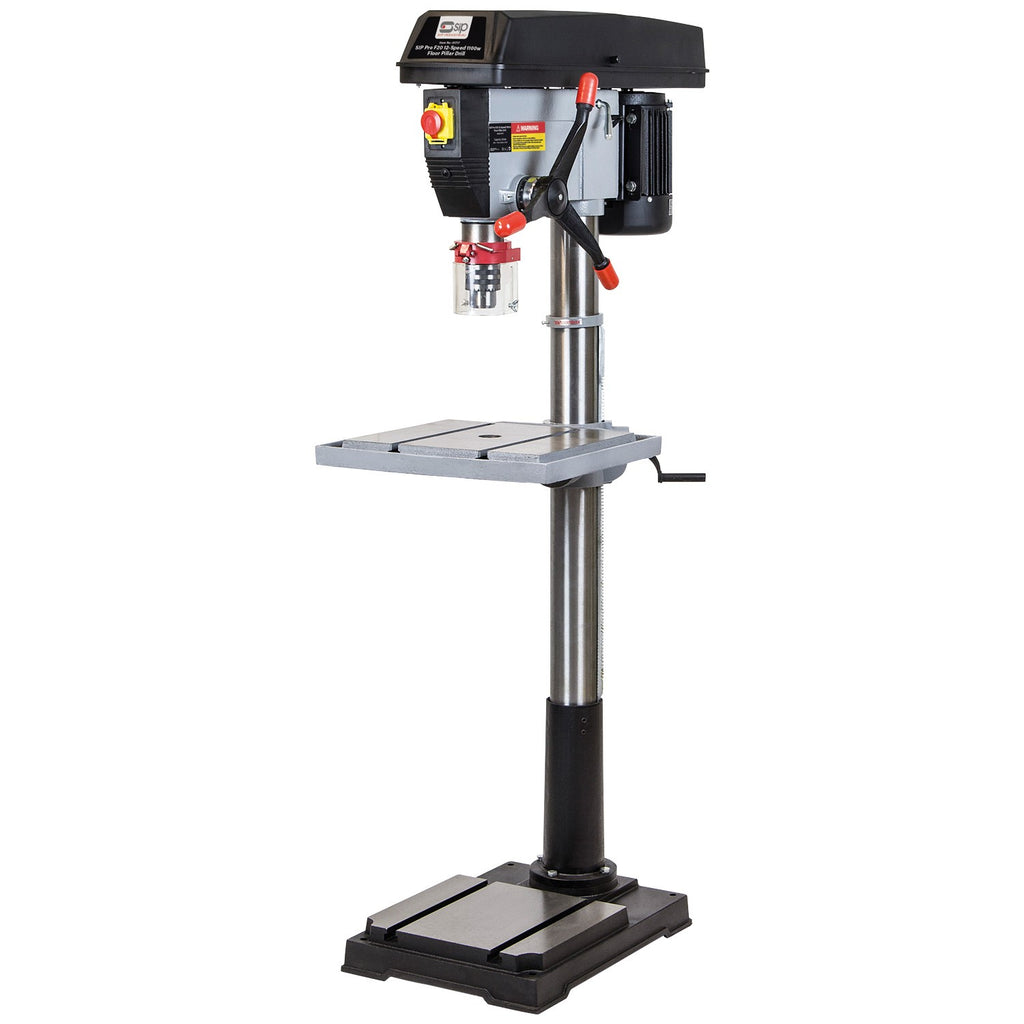

The SIP Pro F20 12-Speed 1100w 230v Floor Pillar Drill makes light work of preparing and finishing a variety of workpiece materials including ferrous and non-ferrous metals, woods and plastics. Using an adjustable tilting table and tilt scale, it can be easily positioned to enable accurate drilling.
Plus, it's MT4 fitting allows for a larger drilling capacity.
KEY FEATURES
- 12 spindle speeds powered by a 1100w motor from a 230v (13A) supply
- Supports a variety of drilling applications
- High-power brushless induction motor
- Fitted with drilling depth stop
- Adjustable drill table for greater accuracy
- Safety interlock switch for safe motor belt adjustment
SIP 2-Year Standard Silver Warranty*
Full Specification
The SIP Pro F20 12-Speed 1100w 230v Floor Pillar Drill makes light work of preparing and finishing a variety of workpiece materials including ferrous and non-ferrous metals, woods and plastics. Using an adjustable tilting table and tilt scale, it can be easily positioned for accurate drilling. Plus, it's MT4 fitting allows for a larger drilling capacity.

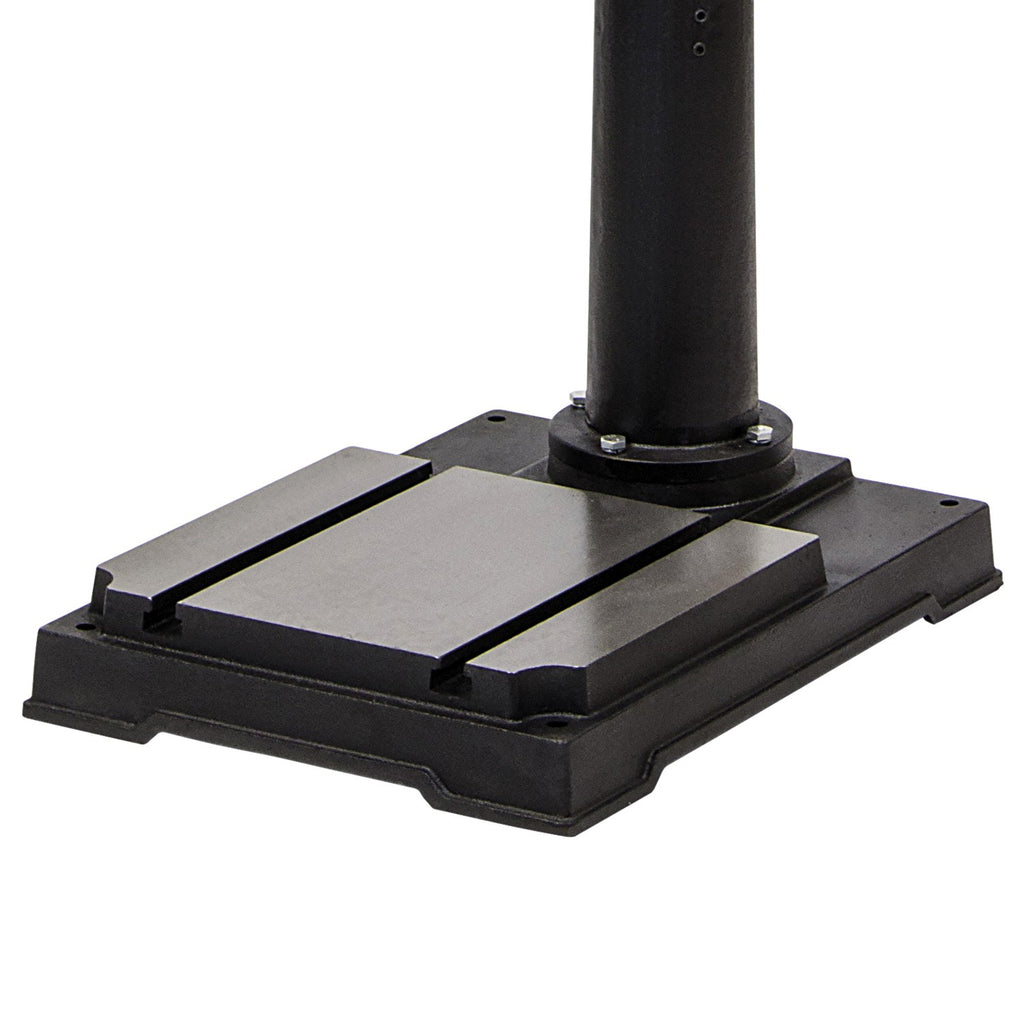

Longevity and safety are paramount to this pillar drill, using integrated chuck guards to reduce user risk and a sturdy cast iron base for added stability. With a floor-mounted design, it is perfect for a range of professional applications in workshop settings.
Applications & uses: Suitable for ferrous and non-ferrous metals, woods, and plastics. The MT4 fitting offers a larger drilling capacity making it perfect for pilot, blind, batch and general drilling use, heavy-duty use for larger hole drilling with engineering workshop components, plus metalwork and woodwork environments
SUPPORTS A VARIETY OF DRILLING APPLICATIONS
- A larger drilling capacity via an MT4 fitting is ideal for materials including ferrous and non-ferrous metals, hard and soft woods, and high-density plastics.
MULTI-SPEED FUNCTIONALITY
- Allows precise control of hole sizes across the drilling spectrum.
HIGH-POWER BRUSHLESS INDUCTION MOTOR
- Delivers powerful performance for consistent high-quality drilling.
INTUITIVE FEATURES FOR EASE-OF-USE
- Adjustable drilling table and 3-lever handle ensures smooth drilling force.
FITTED WITH DRILLING DEPTH STOP
- Accurately maintains a quality of repetitive or blind hole drilling, helping to minimise material wastage.

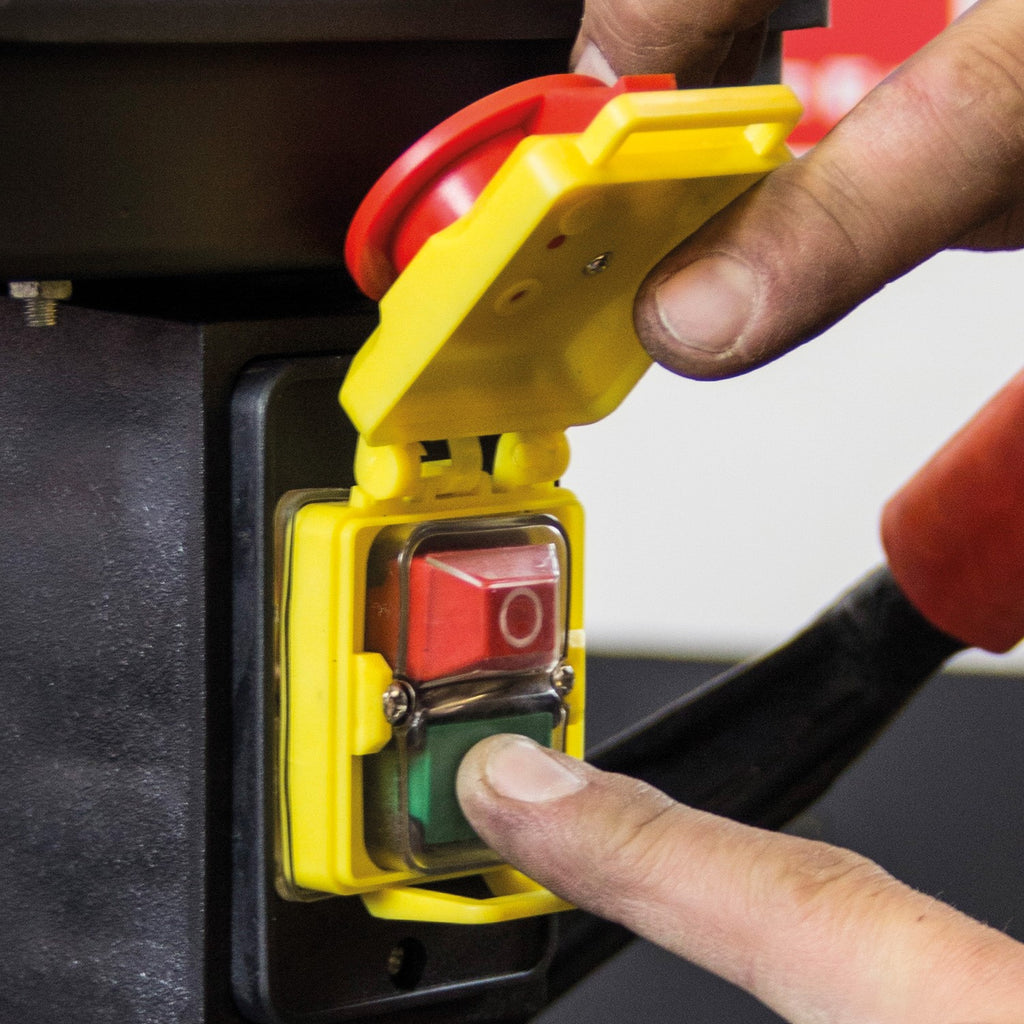

SAFETY INTERLOCK SWITCH
- Allows the user to adjust the motor belt with confidence knowing the drill cannot start-up accidentally.
Technical Information
ITEM NO. 01717 Input Voltage: 230v (13A) Motor Power: 1100w No. of Speeds: 12 speeds Speed Range: 150rpm - 2500rpm Drill Bit Size: 5mm - 20mm Max. Drilling Capacity: 32mm Spindle Taper: MT4 Table Size: 420mm x 470mm Base Size: 570mm x 425mm Column Diameter: Ø 92mm Swing: 506mm Height: 1720mm Spindle Travel: 120mm Collar Diameter: Ø 92mm Max. Distance: 620mm (chuck to table)
1095mm (chuck to base)Net Weight: 109.60kg Gross Weight: 117.00kg Product Dimensions: 1720(H) x 470(W) x 570mm(D) Packaged Dimensions: 305(H) x 1415(W) x 650mm(D)
