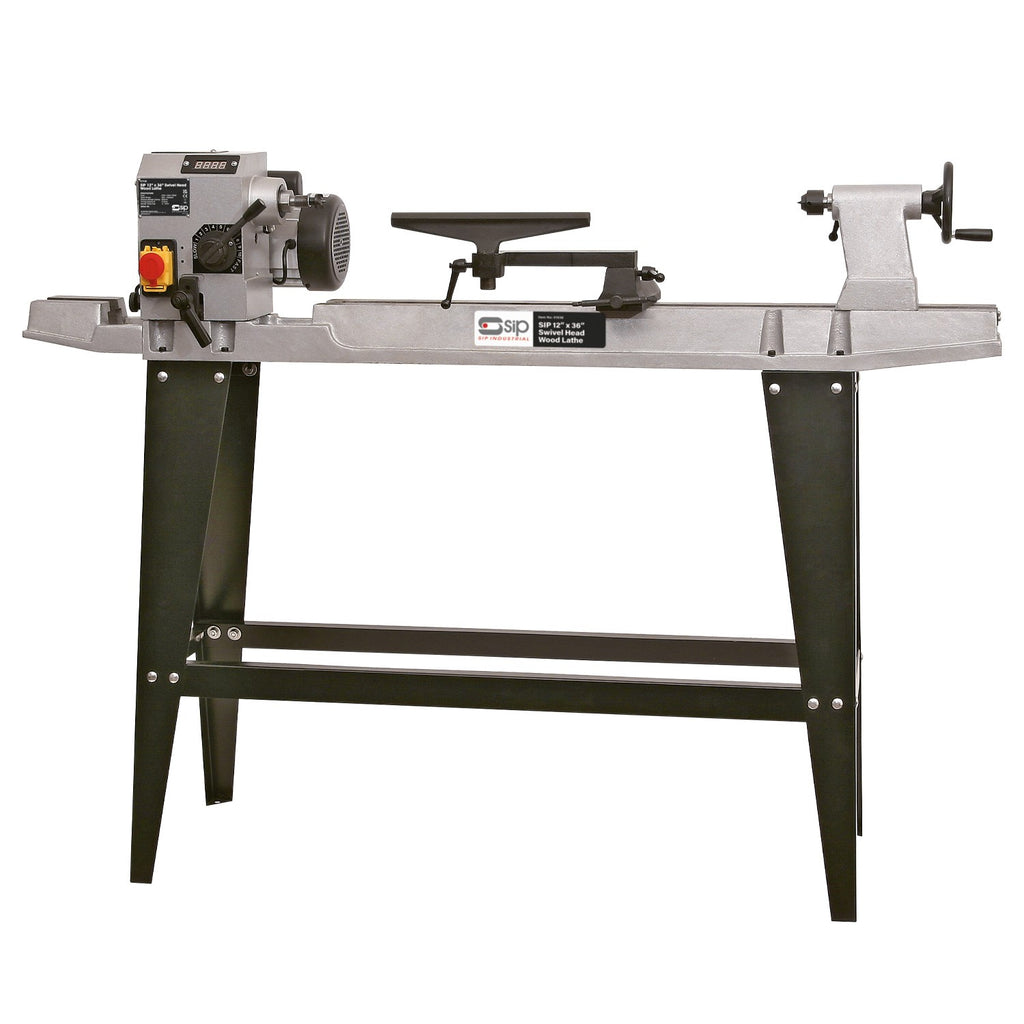

The SIP 12" x 36" Swivel Head Wood Lathe is an ideal solution for those seeking a robust, adaptable lathe to accurately shape, turn, drill and sand pieces to the desired specification.
For added functionality, the headstock swivel 360° with four locking positions to allow outboard turning of larger wood materials. The lathe bed, headstock (MT1) and tailstock (MT2) are manufactured from heavy-duty cast iron and mounted on pressed steel legs with cross braces. A hollow tailstock is also fitted for long hole boring.

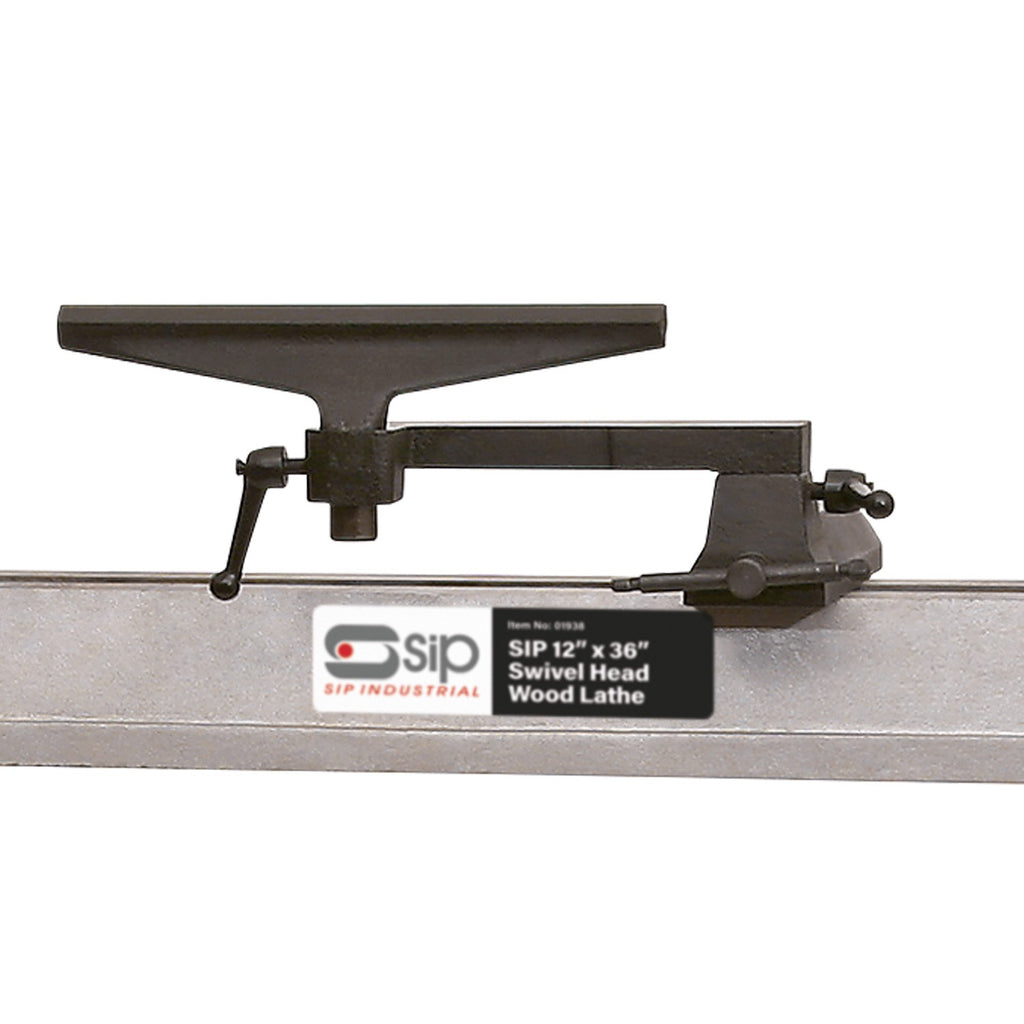

Supplied with tool rest, 6" faceplate, drive and tailstock centres.
KEY FEATURES
- 3/4" x 16TPI spindle thread size for various attachments
- 300mm max. turning diameter (900mm between centres)
- Pressed steel legs with cross braces and cast iron lathe bed
- Fitted with hollow tailstock suitable for long-hole boring
- Digital speedometer display up to 2000rpm
- 10 setting easy-change speed handle
SIP 2-Year Standard Silver Warranty
Full Specification
The SIP 12" x 36" Swivel Head Wood Lathe is an ideal solution for those seeking a robust and adaptable lathe for woodturning. Crucial to a functioning workshop, this machine tool allows a woodturner to accurately shape, turn, drill and sand workpieces to the desired specification.
For added functionality, a 360° swivel headstock with four locking positions is fitted to allow outboard turning of larger wood materials. The lathe bed, headstock and tailstock are manufactured to a professional finish from heavy-duty cast iron. Pressed steel legs with cross braces also help to maintain stability.
The headstock has an MT1 taper and tailstock an MT2 taper alongside a variable speed motor which runs between 500rpm and 2000rpm. The easy-change speed handle has 10 settings and a digital readout speed display for greater turning control.
Supplied with tool rest, 6" faceplate, drive and tailstock centres.
Applications & uses: Perfect for turning furniture legs, staircase spindles and bespoke woodwork items. Accurately turns, shapes, drills and sands workpieces to the desired specification. Suitable for soft and hard woods.
SIP 2-Year Standard Silver Warranty
3/4" x 16TPI SPINDLE THREAD SIZE
- Allows the use of various turning attachments.
300MM MAX. TURNING DIAMETER (900MM BETWEEN CENTRES)
- Enables a variety of woodwork projects and jobs.

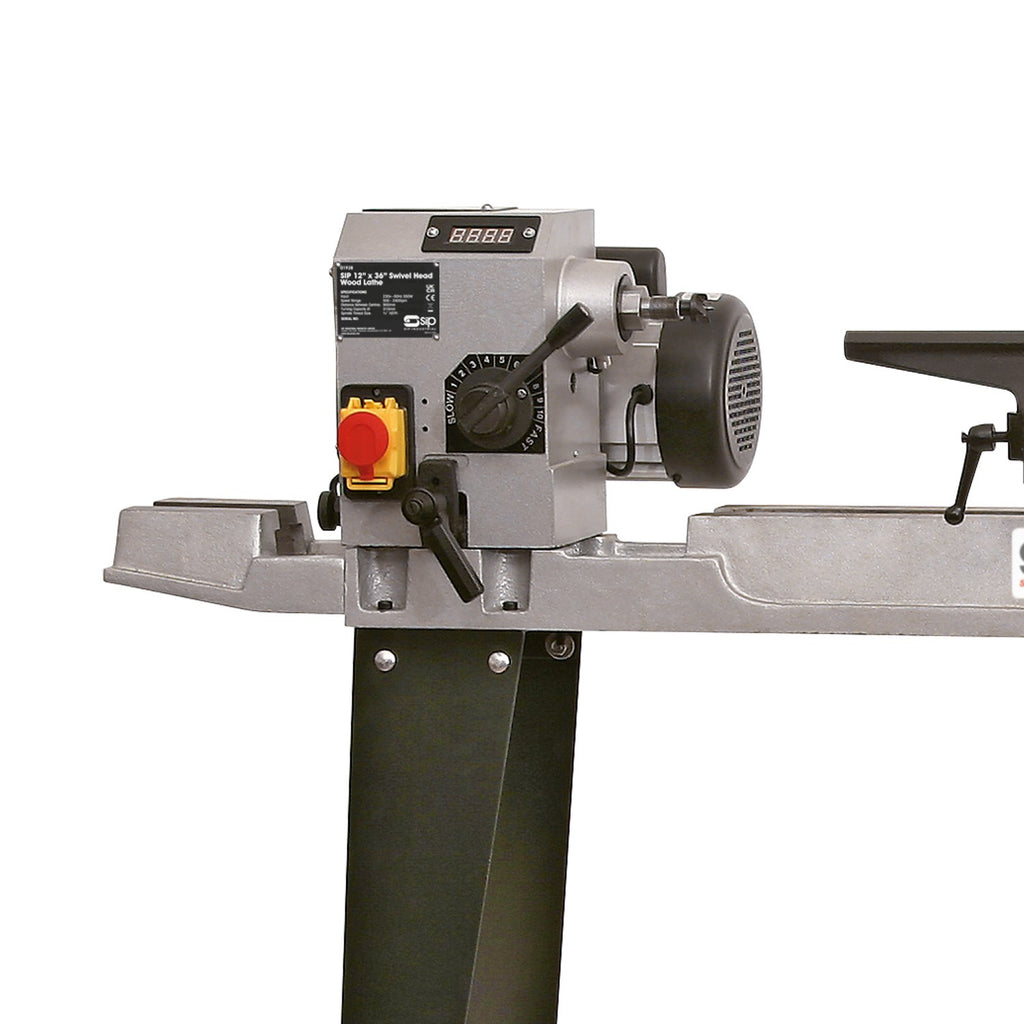

360° SWIVEL HEADSTOCK WITH 4 LOCK POSITIONS
- Allows for outboard turning of larger wood materials.

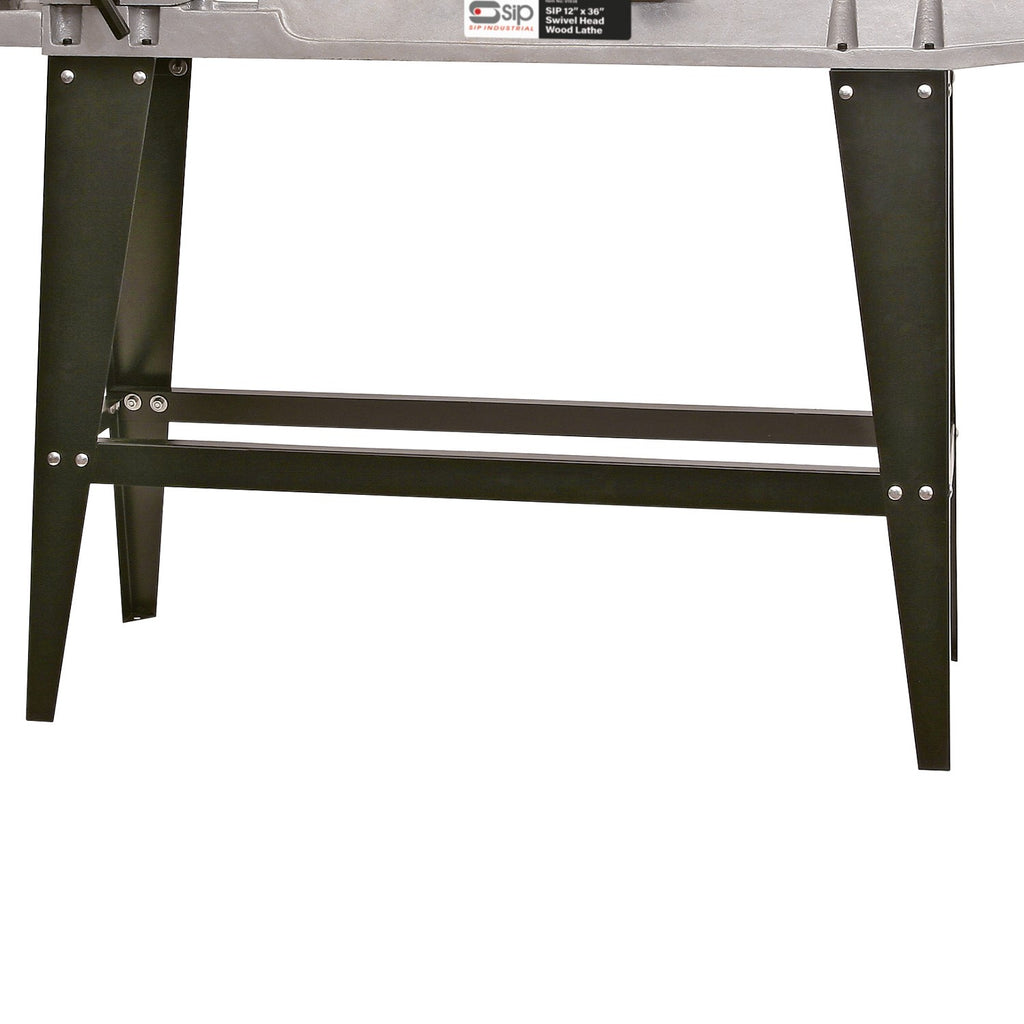

HEAVY-DUTY CAST IRON LATHE BED & PRESSED STEEL LEGS
- Ensures greater turning stability and accuracy.
CAST IRON MT1 HEADSTOCK & MT2 TAILSTOCK
- For an assured hold to the workpiece when turning.

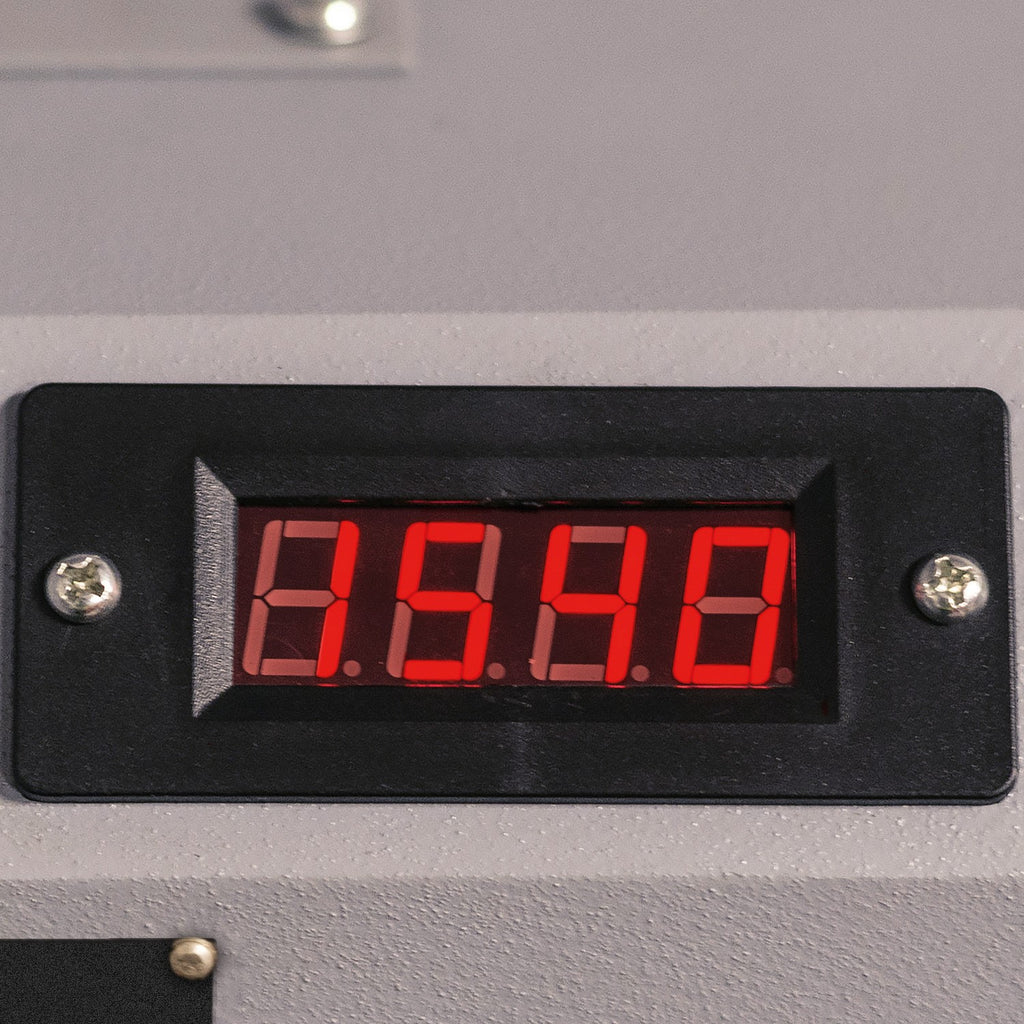

DIGITAL SPEEDOMETER DISPLAY
- Provides accurate readout of headstock spindle speed.
FITTED WITH HOLLOW TAILSTOCK FOR LONG HOLE BORING
- Offers added versatility for professional applications.
Technical Information
| ITEM NO. | 01938 |
| Input Supply: | 230v (13A) |
| Motor Power: | 550w (0.75hp) |
| Speed Range: | 500rpm - 2000rpm |
| Distance Between Centres: | 900mm (36") |
| Turning Capacity: | 310mm (12") |
| Spindle Through Hole: | 10mm (Drive) / 10mm (Tailstock) |
| Drive Spur Size: | 1 Morse Taper |
| Tailstock Rotating Centre Size: | 2 Morse Taper |
| Noise Level: | 68dB(A) |
| Net Weight: | 77.00kg |
| Gross Weight: | 85.00kg |
| Product Dimensions: | 1120(H) x 1510(W) x 475mm(D) |
| Packaged Dimensions: | 1510(H) x 1120(W) x 370mm(D) |
