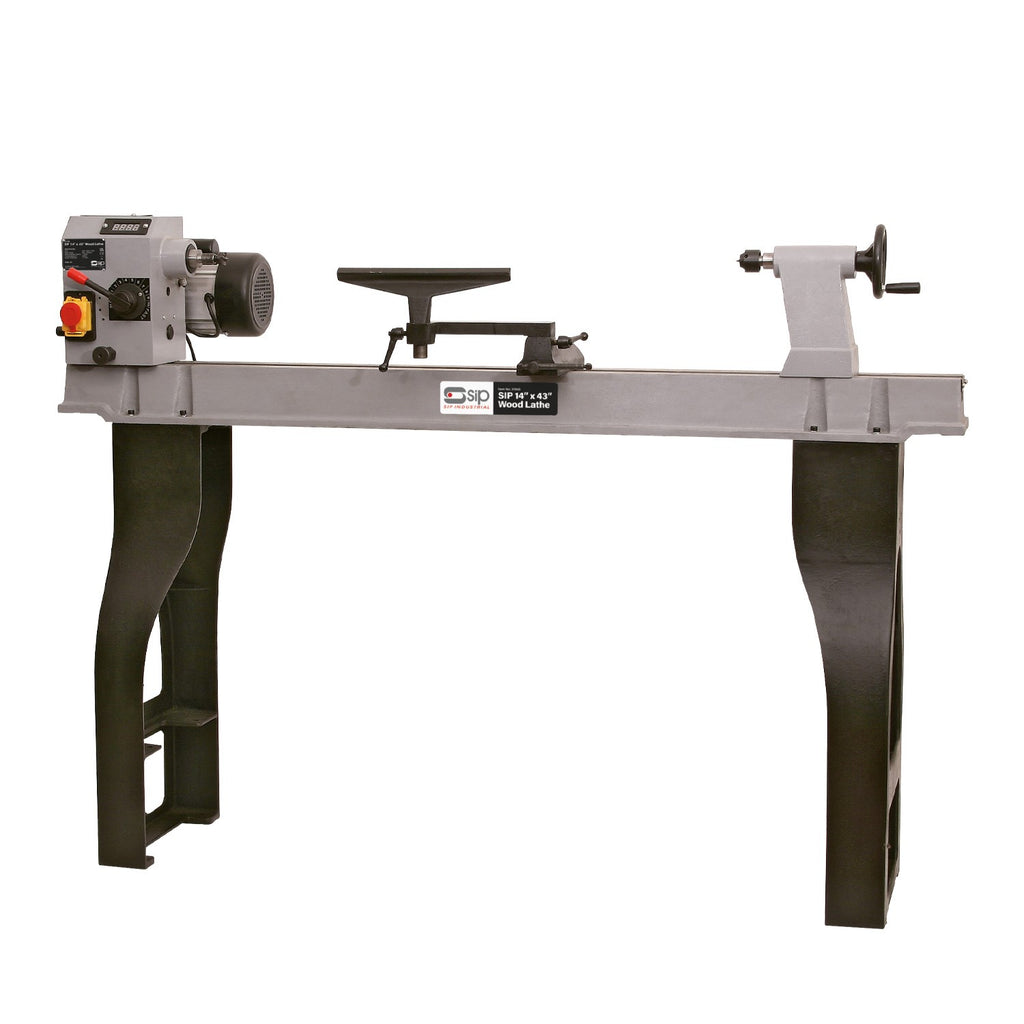

The SIP 14" x 43" Swivel Head Wood Lathe is ideal for those seeking a robust, adaptable lathe with heavy-duty stability. This crucial woodworking machine tool accurately shapes, turns, drills and sand workpieces to the desired specification.
For added functionality, the headstock swivels 360° with four locking positions to allow outboard turning of larger wood materials, whilst heavy-duty cast iron legs maximise stability. The lathe bed, headstock (MT1) and tailstock (MT2) are also manufactured from heavy-duty cast iron. A hollow tailstock is fitted to allow long hole boring.

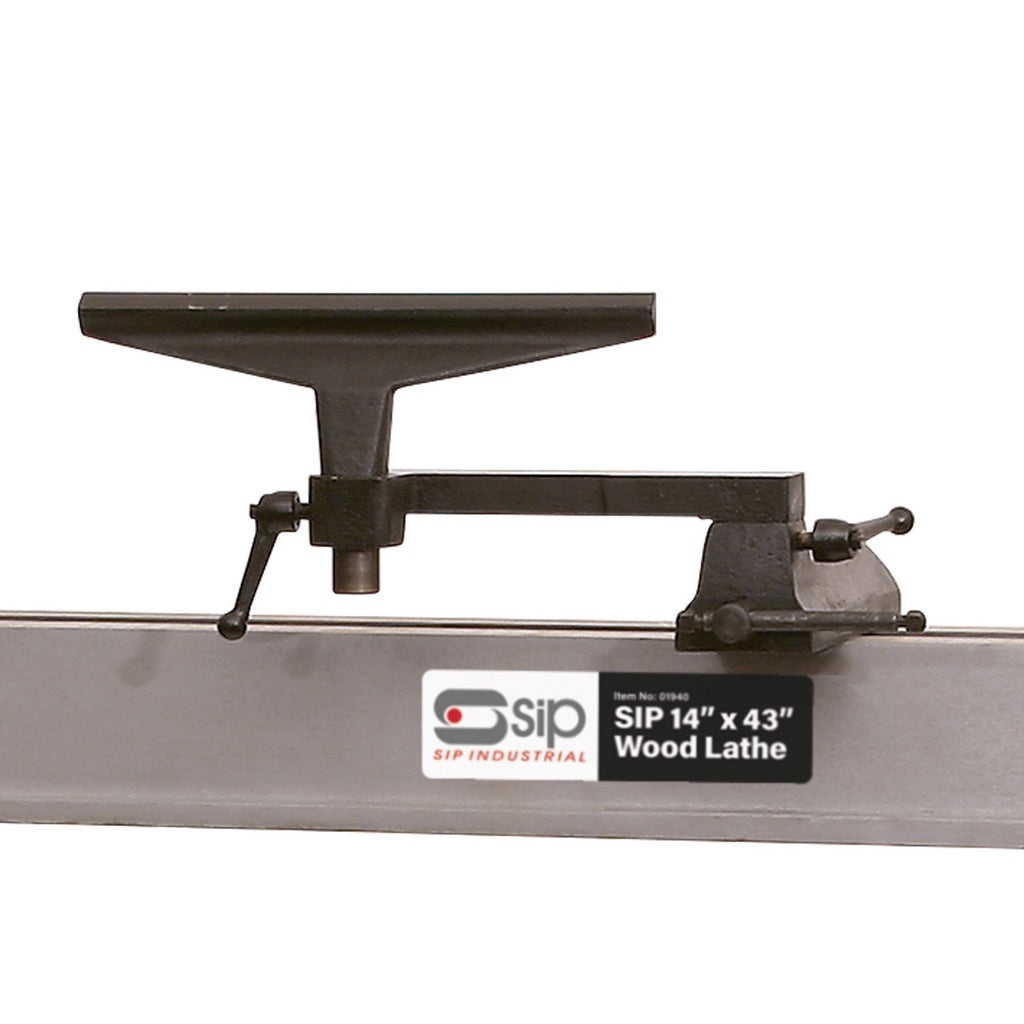

Supplied with tool rest, 6" faceplate, drive and tailstock centres.
KEY FEATURES
- 3/4" x 16TPI spindle thread size for various attachments
- 350mm max. turning diameter (1100mm between centres)
- Heavy-duty cast iron legs and lathe bed for enhanced stability
- Fitted with hollow tailstock suitable for long-hole boring
- Digital speedometer display up to 2000rpm
- 10 setting easy-change speed handle
SIP 2-Year Standard Silver Warranty
Full Specification
The SIP 14" x 43" Swivel Head Wood Lathe is an ideal solution for those seeking a robust and adaptable lathe for woodturning. Crucial to a functioning workshop, this machine tool allows a woodturner to accurately shape, turn, drill and sand workpieces to the desired specification.
For added functionality, a 360° swivel headstock with four locking positions is fitted to allow outboard turning of larger wood materials. Heavy-duty cast iron legs are fitted to the lathe to maximise stability during this process. The lathe bed, headstock and tailstock are also manufactured to a professional finish from heavy-duty cast iron.
The headstock has an MT1 taper and tailstock an MT2 taper alongside a variable speed motor which runs between 500rpm and 2000rpm. The easy-change speed handle has 10 settings and a digital readout speed display for greater turning control.
Supplied with tool rest, 6" faceplate, drive and tailstock centres.
Applications & uses: Perfect for turning furniture legs, staircase spindles and bespoke woodwork items. Accurately turns, shapes, drills and sands workpieces to the desired specification. Suitable for soft and hard woods.
SIP 2-Year Standard Silver Warranty
3/4" x 16TPI SPINDLE THREAD SIZE
- Allows the use of various turning attachments.
350MM MAX. TURNING DIAMETER (1100MM BETWEEN CENTRES)
- Enables a variety of woodwork projects and jobs.
360° SWIVEL HEADSTOCK WITH 4 LOCK POSITIONS
- Allows for outboard turning of larger wood materials.
HEAVY-DUTY CAST IRON LEGS
- Prevents flex and movement of the bed and enhances stability when outboard turning.
HEAVY-DUTY CAST IRON LATHE BED
- Ensures greater turning stability and accuracy.
CAST IRON MT1 HEADSTOCK AND MT2 TAILSTOCK
- For an assured hold to the workpiece when turning.

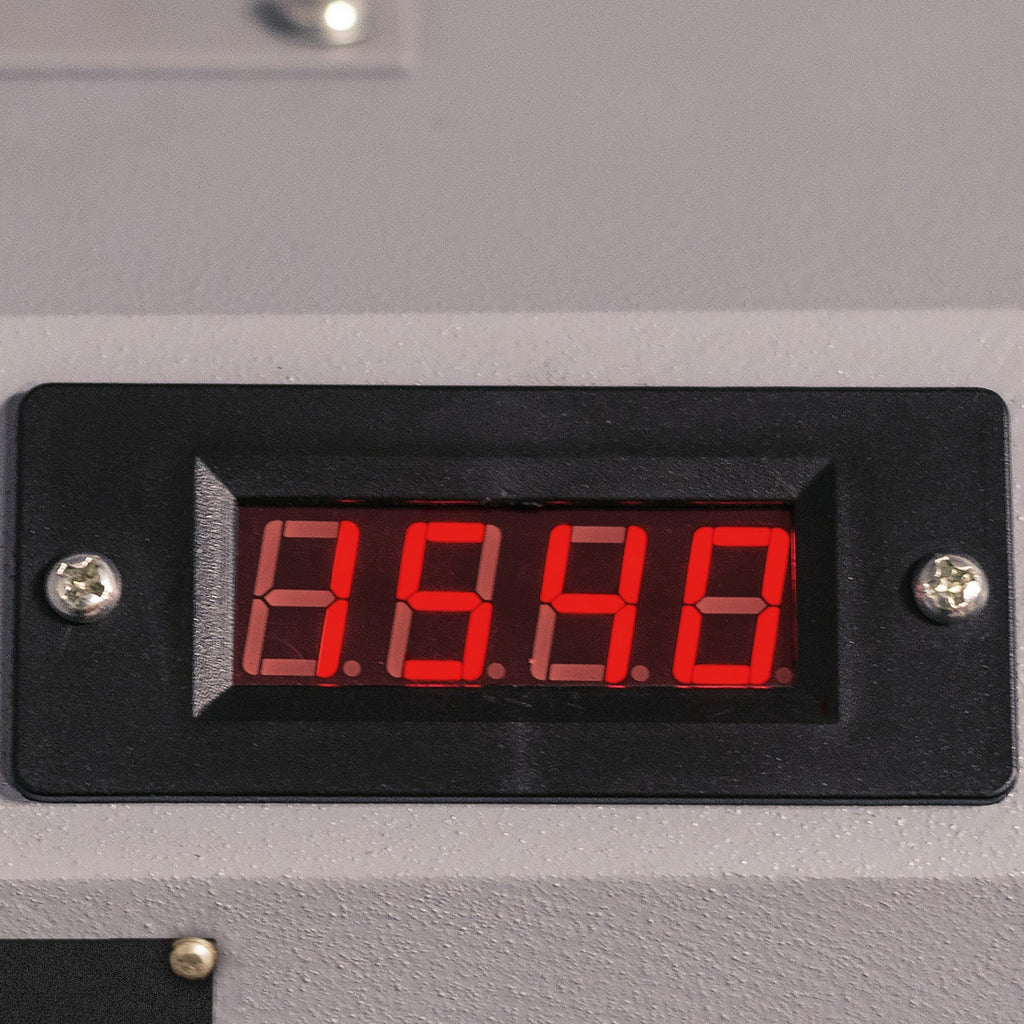

DIGITAL SPEEDOMETER DISPLAY
- Provides accurate readout of headstock spindle speed.
FITTED WITH HOLLOW TAILSTOCK FOR LONG HOLE BORING
- Offers added versatility for professional applications.
Technical Information
| ITEM NO. | 01940 |
| Input Supply: | 230v (13A) |
| Motor Power: | 750w (1hp) |
| Speed Range: | 500rpm - 2000rpm |
| Distance Between Centres: | 1100mm (43") |
| Turning Capacity: | 350mm (14") |
| Spindle Through Hole: | 10mm (Drive) / 10mm (Tailstock) |
| Drive Spur Size: | 1 Morse Taper |
| Tailstock Rotating Centre Size: | 2 Morse Taper |
| Noise Level: | 68dB(A) |
| Net Weight: | 130.00kg |
| Gross Weight: | 154.00kg |
| Product Dimensions: | 1600(H) x 1160(W) x 450mm(D) |
| Packaged Dimensions: | 1625(H) x 520(W) x 405mm(D) |
