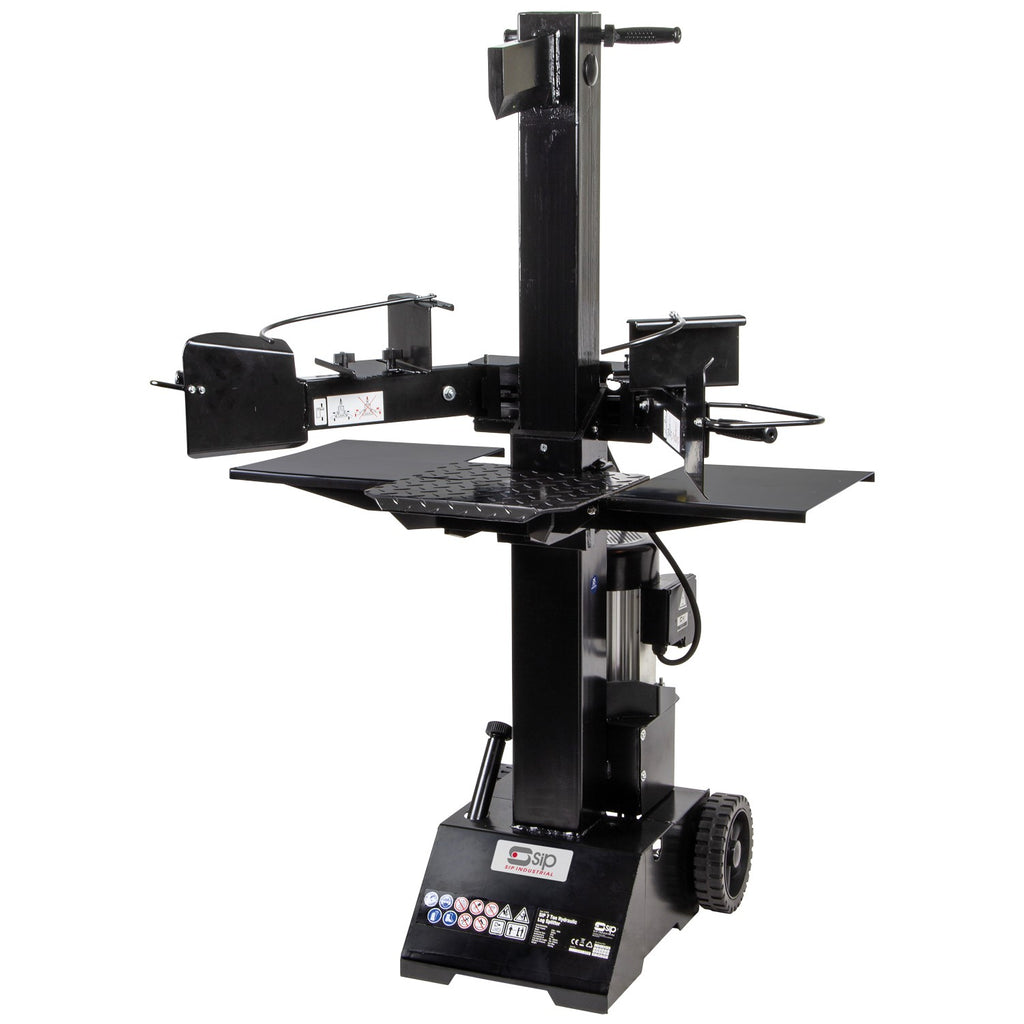

The SIP 7 TON Electric Log Splitter is a heavy-duty log splitter which features a hydraulic piston ram with 7 TON of continuous force to split logs safely and efficiently. Designed for agricultural and landscaping applications, this large capacity splitter is ideal for dried softwoods and hardwoods.
This log splitter has a vertical configuration for a smaller footprint which is mounted on solid wheels for easy mobility, plus operator handle guards for added user safety. A 230v (13A) input supply ensures this splitter can be used in a variety of environments.
KEY FEATURES
- Hydraulic piston ram delivers 7 TON of continuous splitting force
- Vertical splitter configuration ensures a smaller working footprint
- Large log capacity of ⌀ 80mm - 300mm x 100mm - 550mm log length
- Operator handle guards help to protect hands from the splitting area
- Fitted ram lock and NVR switch provide increased user safety
- Integrated handle and wheel-mounted design for added mobility
SIP 2-Year Standard Silver Warranty
Full Specification
The SIP 7 TON Electric Log Splitter is a heavy-duty log splitter which features a hydraulic piston ram with 7 TON of continuous force to split logs safely and efficiently. Designed for agricultural and landscaping applications, this large capacity splitter is ideal for dried softwoods and hardwoods.
This log splitter has a vertical configuration for a smaller footprint which is mounted on solid wheels for easy mobility, plus operator handle guards for added user safety. A 230v (13A) input supply ensures this splitter can be used in a variety of environments.
Applications & uses: Ideal for splitting softwood and hardwoods. Suitable for agricultural and landscaping applications.
SIP 2-Year Standard Silver Warranty
ELECTRIC SPLITTER WITH HYDRAULIC PISTON RAM WITH 7 TON OF CONTINUOUS FORCE FOR RELIABLE & EFFICIENT LOG SPLITTING
- Delivers continuous splitting force of 7 TON under a hydraulic pressure of 23.5MPa.
- Large log capacity of ⌀ 80mm - 300mm x 100mm - 550mm log length.
HEAVY-DUTY FRAME WITH OPERATOR HANDLE GUARDS HELPS TO MAXIMISE USER SAFETY
- Operator handle guards help to protect hands from the splitting area.
- Further enhanced safety via an integrated ram lock and NVR switch.
VERTICAL CONFIGURATION OFFERS FLEXIBILITY IN A VARIETY OF SPACES
- Upright vertical design ensures a smaller footprint is required to operate the machine.
- The vertical configuration is mounted on 2 solid wheels for added mobility and versatility.
- An integrated handle near the splitting wedge makes the splitter easier to position.
Technical Information
| ITEM NO. | 01978 |
| Input Supply: | 230v (13A) |
| Motor Power: | 3kW (4hp) |
| Splitting Force: | 7 TON |
| Hydraulic Pressure: | 23.5MPa |
| Hydraulic Oil Capacity: | 4ltr HV22 hydraulic oil |
| Log Capacity: | ⌀ 80mm - 300mm x 100mm - 550mm |
| Noise Level (LpA): | 89.7dB(A) full load / 83.6dB(A) no-load |
| Net Weight: | 109.2kg |
| Gross Weight: | 119kg |
| Product Dimensions: | |
| Packaged Dimensions: | 1150(H) x 560(W) x 400mm(D) |
