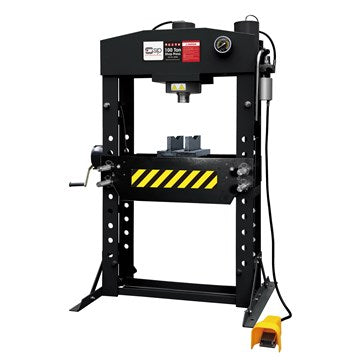

The SIP 100 Ton Shop Press is a pneumatic press perfect for the removal and installation of bearings, wrist pins, universal joints, and pulleys, plus bending, bonding, and straightening.
- 100 Ton floor-standing pneumatic/hydraulic press
- 93mm to 993mm work range; 300mm ram stroke
- Suitable for professional workshops and garages
- Heavy-duty steel frame for added durability and life
- For the removal or installation of universal joints,
bearings, pulleys, wrist pins, and various other jobs - Ideal for bending, bonding and straightening tasks
- Fully adjustable workbed for added versatility
- Built-in Glycerine-filled manometer
Technical Description:
| ITEM NO. | 03686 |
| Weight Capacity: | 100 Ton |
| Ram Stroke: | 300mm |
| Side Stroke: | 250mm |
| Working Range: | 93 - 993mm |
| Bed Width: | 787mm |
| Air Pressure: | 108 - 123psi (7.5 - 8.5bar) |
| Air Inlet: | 1/4" NPT |
| Net Weight: | 662.00kg |
| Gross Weight: | 766.00kg |
| Product Dimensions: | TBC |
| Packaged Dimensions: | TBC |
