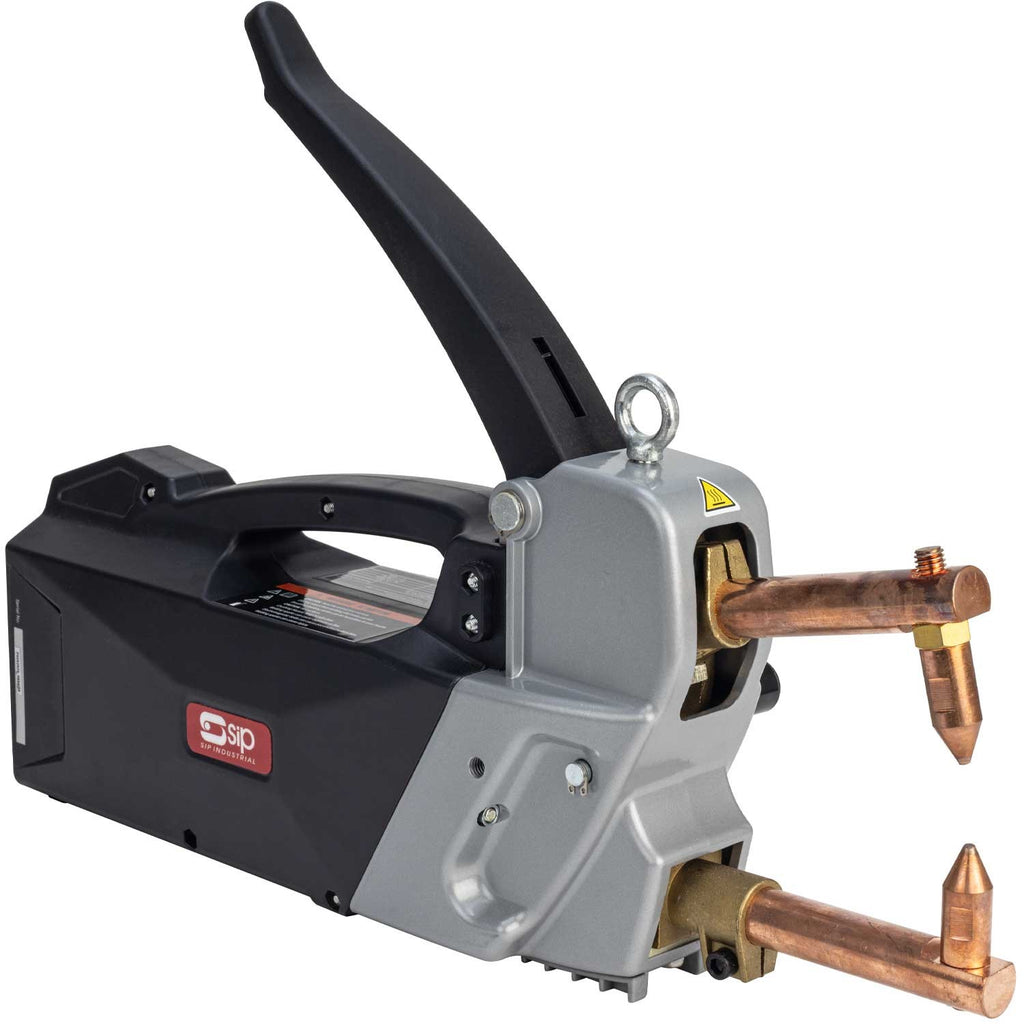

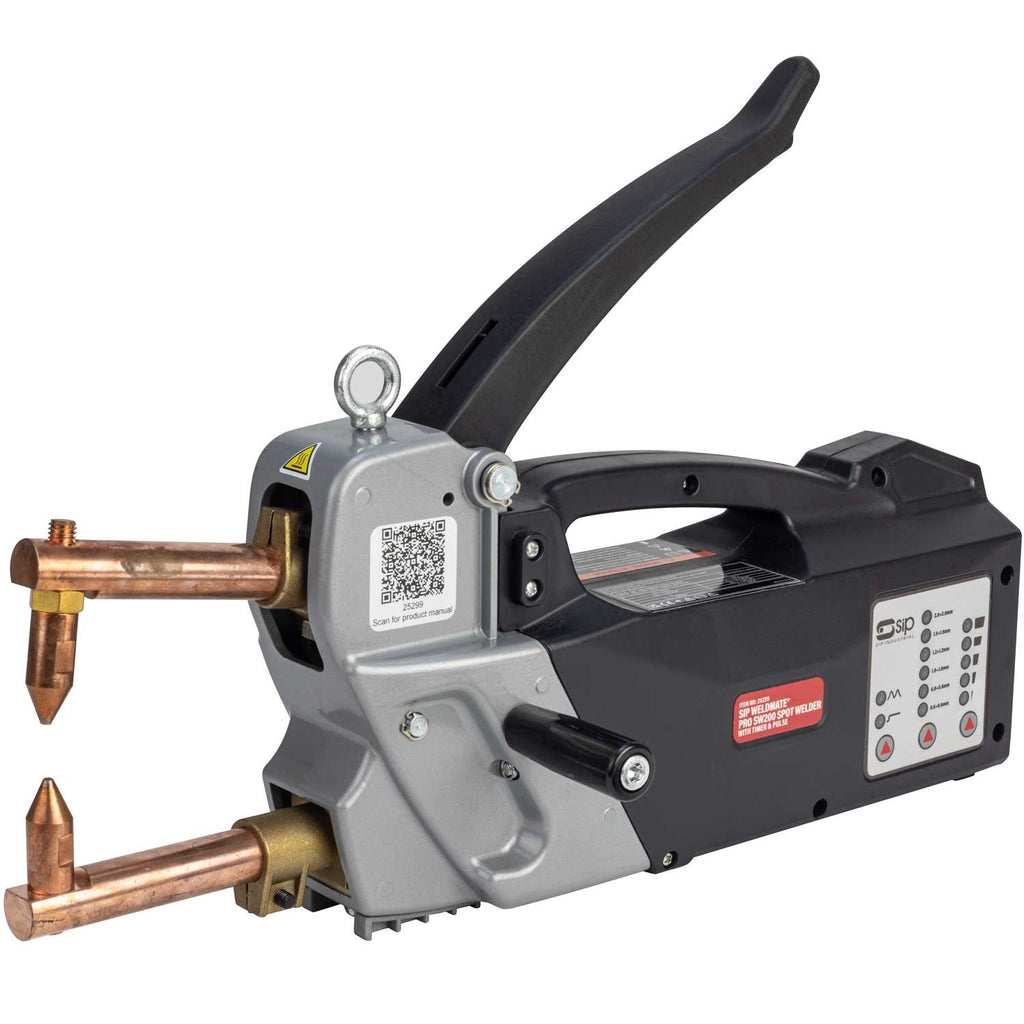

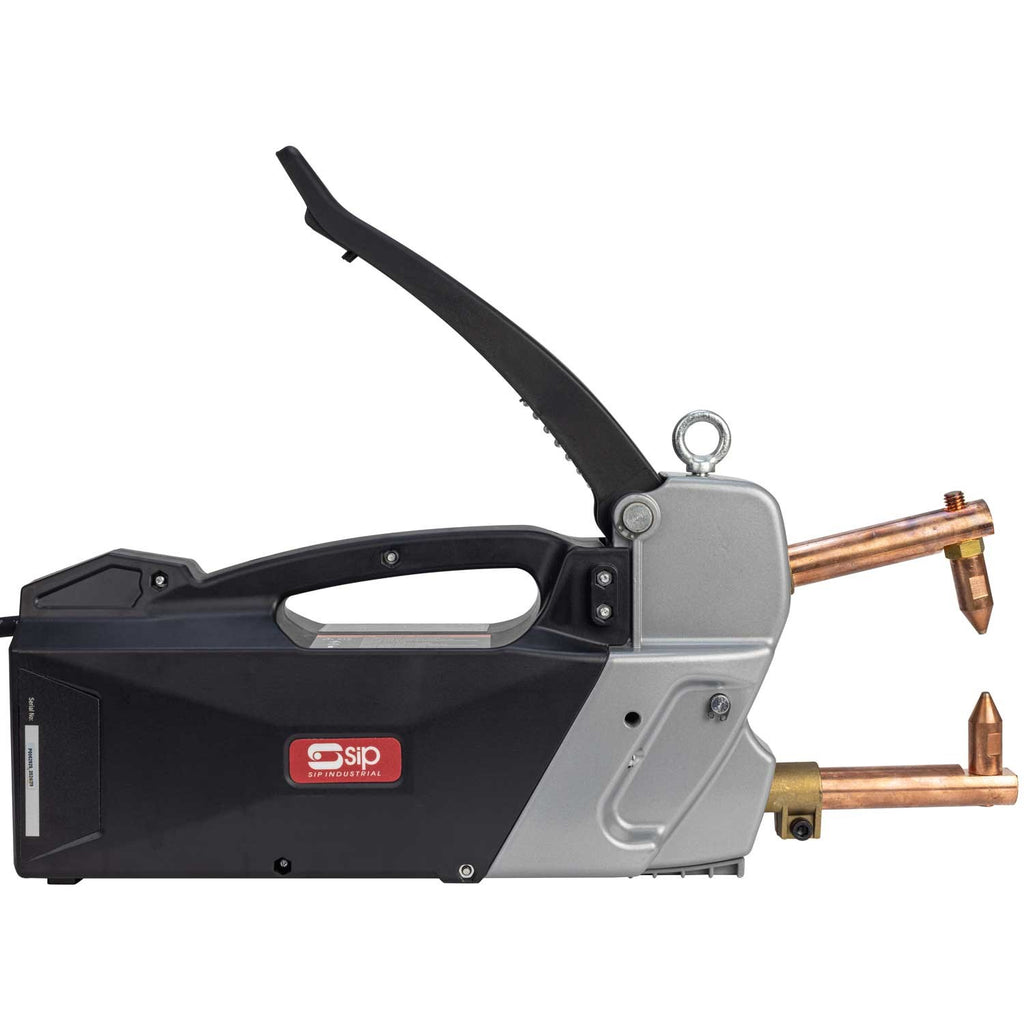

The SIP WELDMATE® PRO SW200 Spot Welder with Timer & Pulse is a portable resistance welder designed for sheet metal applications in automotive environments and light fabrication workshops.
Ideal for vehicle body panel repairs and light sheet metal tasks, this easy-to-use welder uses copper/chrome alloy electrodes to achieve a maximum welding thickness of 2mm + 2mm and features a microprocessor-controlled timer and pulse functions for consistent welds and enhanced penetration using a variety of material types.
For added flexibility the welder operates from a 13A supply. It is also available with a range of additional electrode arms sold individually or as a bodywork kit for greater application versatility.
KEY FEATURES
- Maximum welding thickness of 2mm + 2mm
- Timer function 80~1800ms for consistent welds
- Pulse function for enhanced spot welding of coated materials
- Operates from a 13A supply for added ease-of-use
- Supplied with replacement 20mm straight electrodes
- Available with additional electrodes and bodywork kit
SIP 2-Year Standard Silver Warranty
Full Specification
The SIP WELDMATE® PRO SW200 Spot Welder with Timer & Pulse is a portable resistance welder designed for sheet metal applications in automotive environments and light fabrication workshops.
Ideal for vehicle body panel repairs and light sheet metal tasks, this easy-to-use welder uses copper/chrome alloy electrodes to achieve a maximum welding thickness of 2mm + 2mm and features a microprocessor-controlled timer and pulse functions for consistent welds and enhanced penetration using a variety of material types.
For added flexibility the welder operates from a 13A supply. It is also available with a range of additional electrode arms sold individually or as a bodywork kit for greater application versatility.
Applications & uses: Perfect for automotive and garage environments. Ideal for sheet metal welding applications. Suitable for fabrication workshops. Suitable for mild steel, stainless steel and galvanised steel.

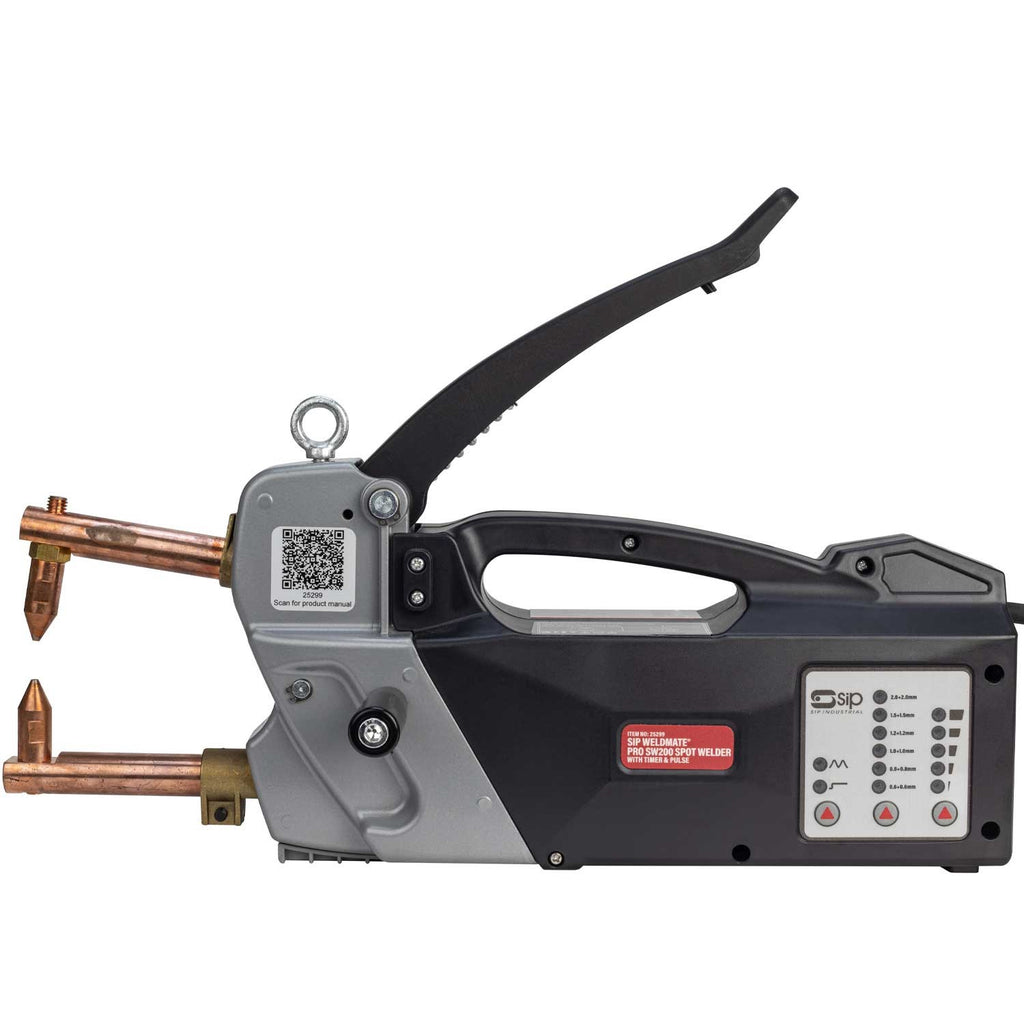

What's in the box?: 1x SIP WELDMATE® PRO SW200 Spot Welder with Timer & Pulse, 2x 20mm straight electrodes, 1x side handle with fixing bolt and hex key. User manual available via QR code sticker applied to product.
SIP 2-Year Standard Silver Warranty

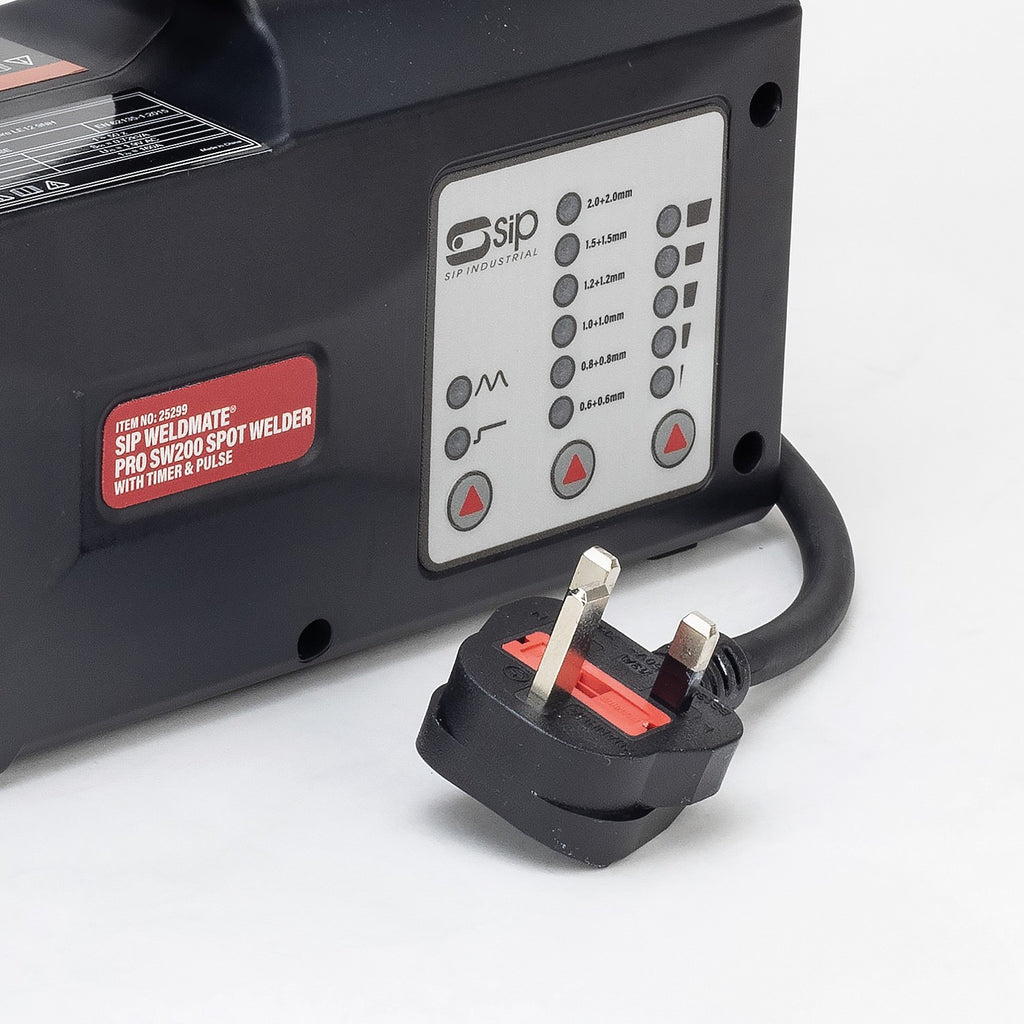

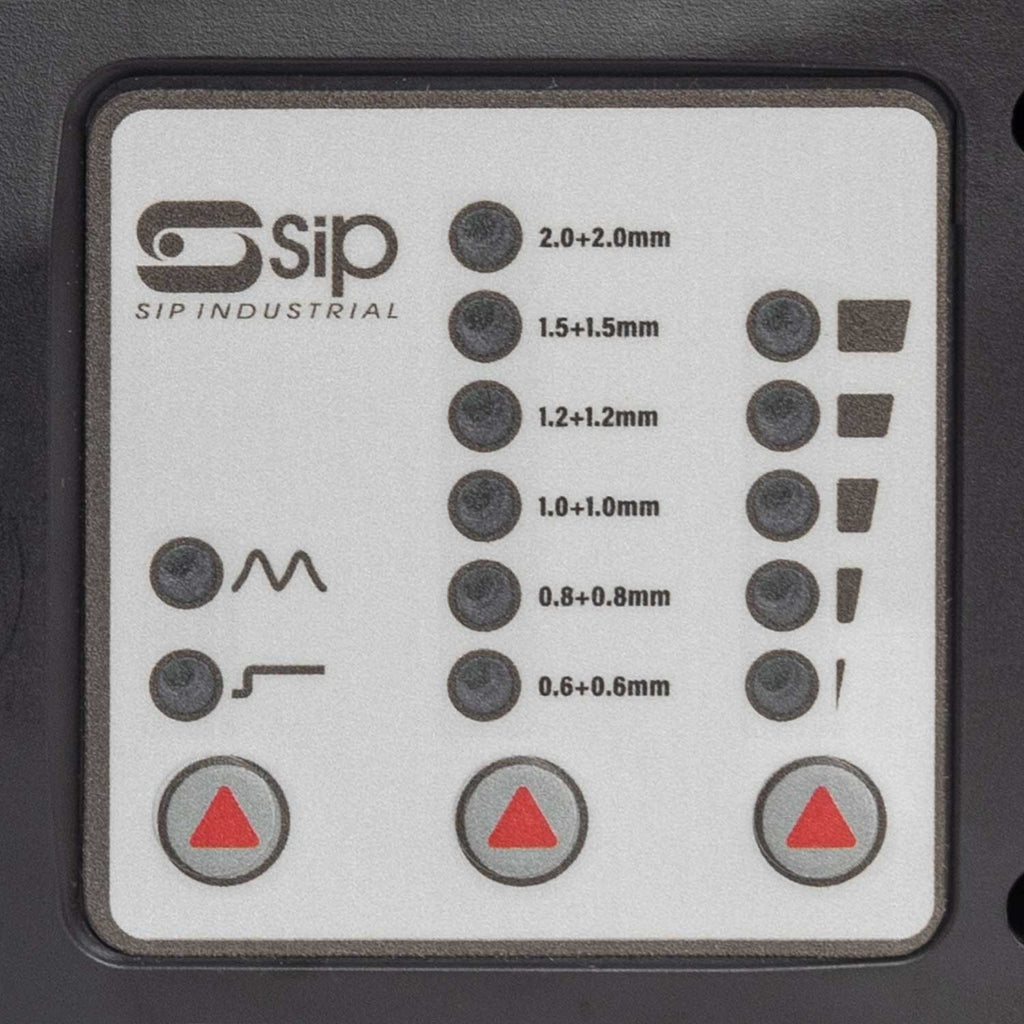

INTUITIVE SOFT TOUCH CONTROL PANEL FEATURES ADJUSTABLE WELDING THICKNESS, TIMER & PULSE FUNCTIONS FOR ROBUST & REPEATABLE WELDING CAPABILITY IN A VARIETY OF APPLICATIONS
- Maximum welding thickness of 2mm + 2mm with sufficient welding current output to achieve 4 welds per minute.
- A microprocessor-controlled timer function allows settings of 80-1800ms for precise and consistent welds.
- Pulse function allows spot welding of coated materials including Zintec, galvanised and nickel-plated. By applying a short burst of additional heat into the material, the welder can penetrate the coating before completing the weld.
- Suitable for mild steel, stainless steel and galvanised steel.
- Offers strong localised welds with minimal heat distortion to the surrounding sheet metal.

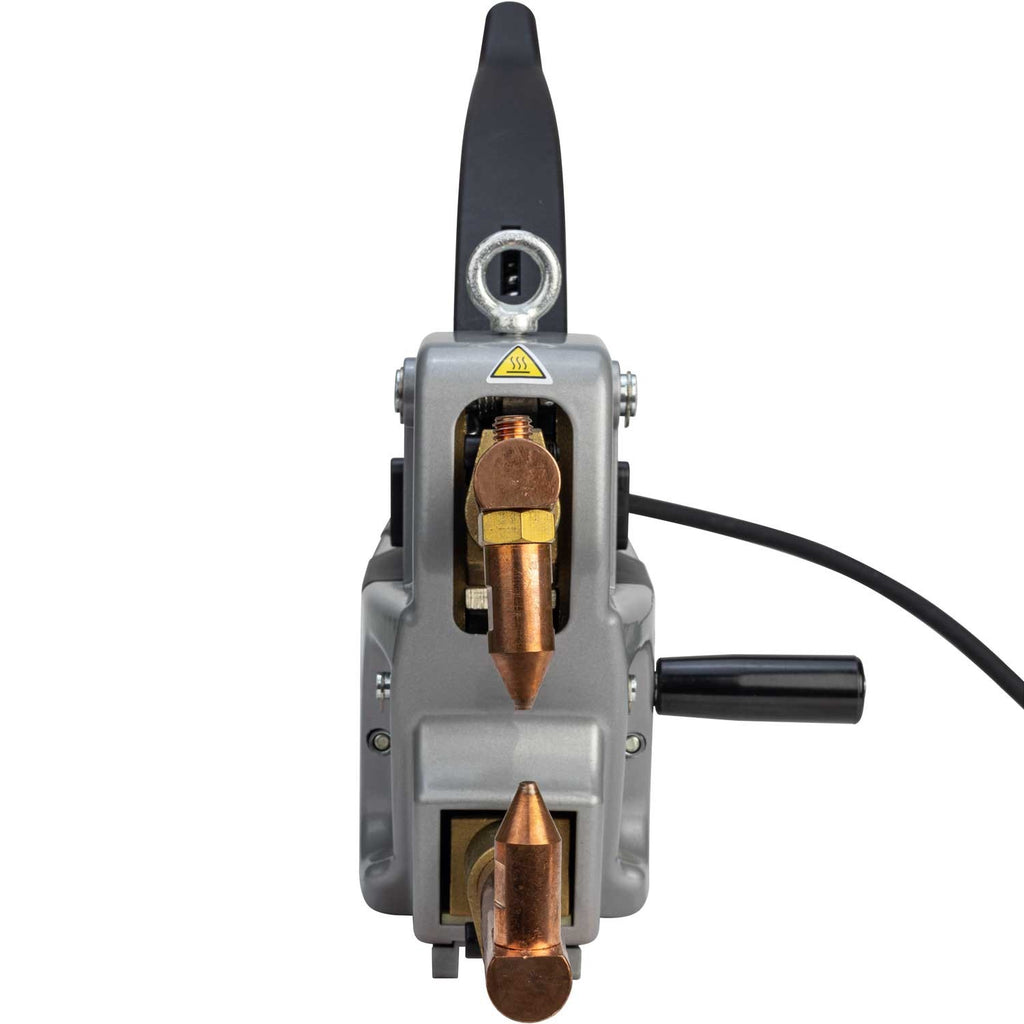

- Easy-to-use lever smoothly engages welding electrode tips for accurate welding performance.

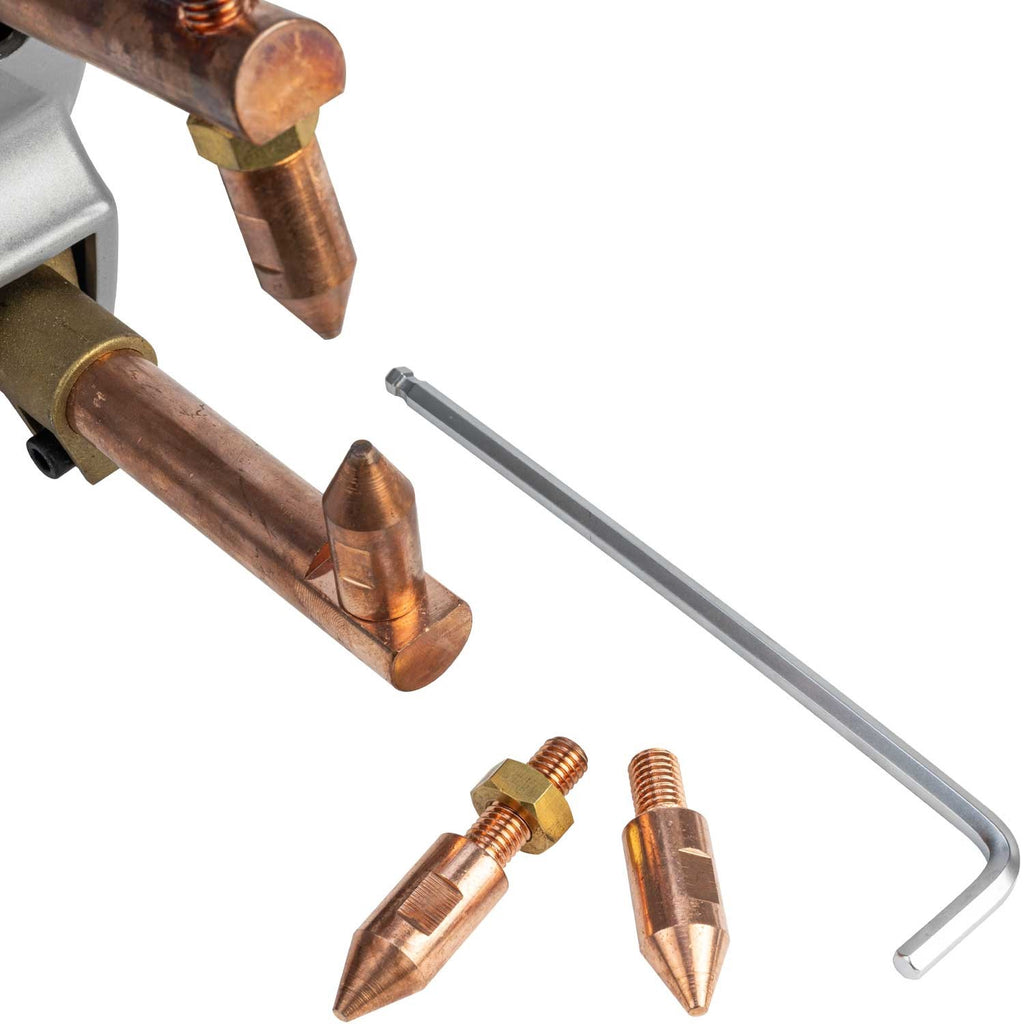

- Supplied with a set of replacement 20mm copper/chrome electrodes.
ADDITIONAL ELECTRODES & BODYWORK KITS AVAILABLE FOR GREATER APPLICATION VERSATILITY
- These easy-to-fit accessories are sold separately as individual parts or available as a bodywork kit.
- The 20mm electrode arms offer added dexterity for a variety of welding applications
- 25413 SIP Spot Welder 120mm Arms with Straight Electrodes (⌀ 20mm)
- 25412 SIP Spot Welder 120mm Arms with Offset Electrodes (⌀ 20mm)
- 25414 SIP Spot Welder 350mm Arms with Offset Electrodes (⌀ 20mm)
- 25410 SIP Spot Welder 350mm Restricted Access Arms with Offset Electrodes (⌀ 20mm)
- 25411 SIP Spot Welder 120mm Arms with Swan Neck Electrodes (⌀ 20mm)

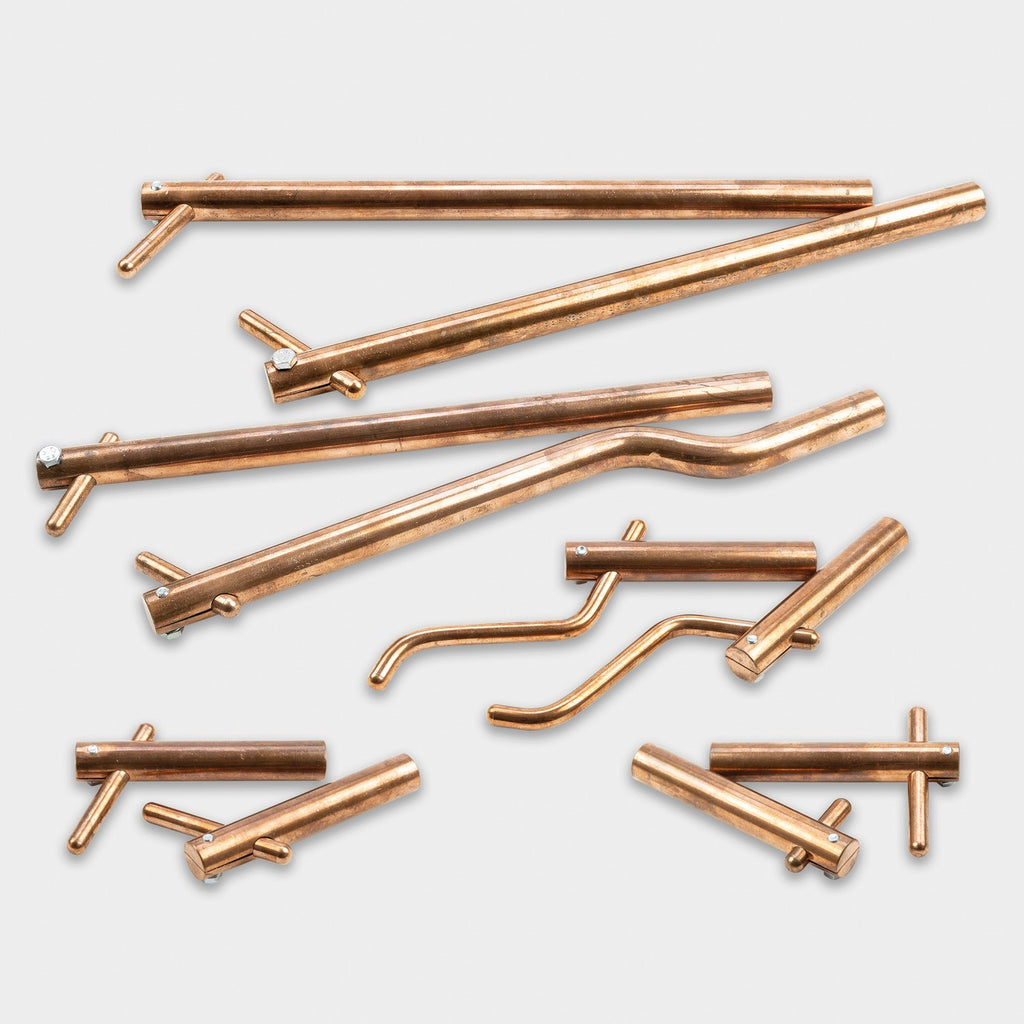

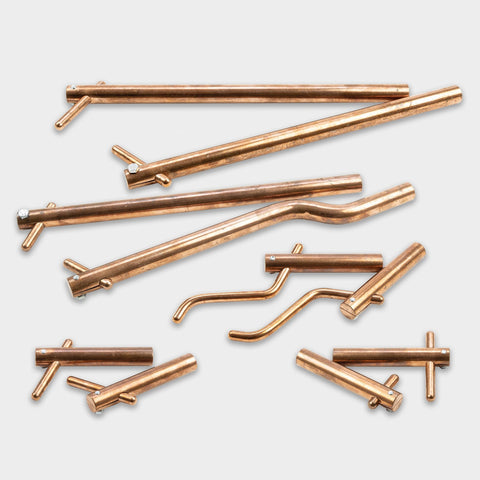

- 25425 SIP Spot Welder 5pc Bodywork Kit (⌀ 20mm) (for 25299)
Technical Information
| ITEM NO. | 25299 |
| Input Supply: | 230v (13A) |
| Max. Welding Thickness: | 2mm + 2mm |
| Spot Duration: | 80-180ms |
| Welds Per Minute: | 4 welds per minute |
| Max. Electrode Force: | 460N |
| Net Weight: | 9.7kg |
| Gross Weight: | 10.6kg |
| Product Dimensions: | 330(H) x 152(W) x 460mm(D) |
| Packaged Dimensions: | 265(H) x 140(W) x 515mm(D) |
