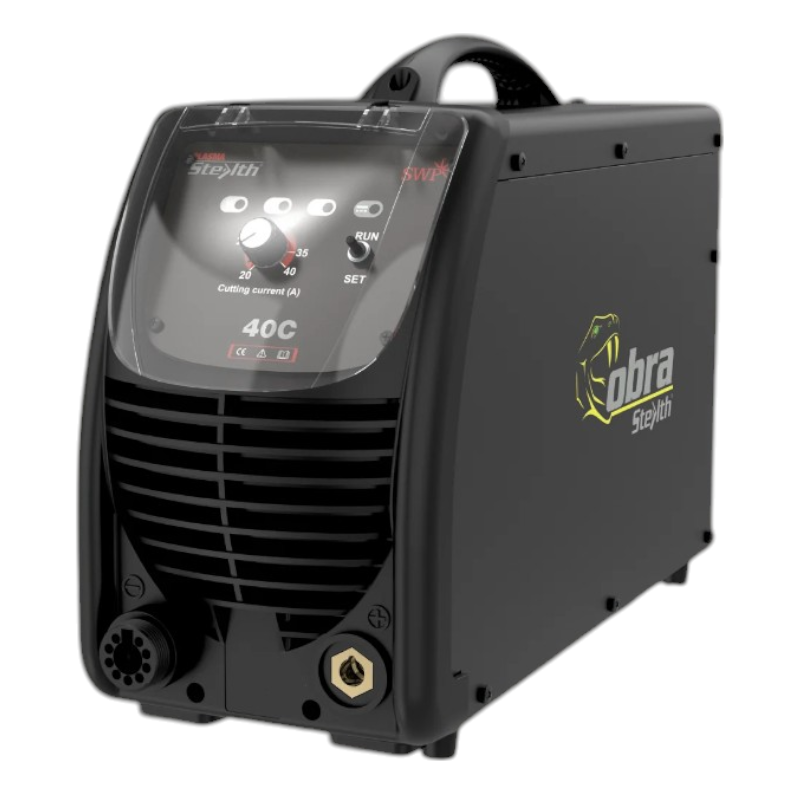

STEALTH Cobra Cut 40 Hand Plasma Cutting Machine With Built In Compressor– (14mm Clean Cut). Expertly cut through metal with precision and ease using the Cobra by Stealth Cut 40 Plasma Cutting Machine with Compressor. Equipped with an EMI filter, pilot arc controller, and various protective and alarm functions, this machine ensures safe and efficient operation. With a back striking tip and built-in compressor, it's all you need for professional cutting.
Product Description
The Stealth Cobra Cut 40 Plasma Cutter comes equipped with a built-in compressor, eliminating the need for an external air supply. This integrated feature enhances portability, simplifies set up and ensures seamless cutting performance, making it an ideal solution for both workshop and on-site applications.
The Cobra by Stealth Cut 40 Plasma Cutting Machine delivers exceptional performance with a production cutting capacity of up to ≤14mm for carbon steel, stainless steel, and aluminium, and up to ≤5mm for copper, making it a versatile tool for various materials.
The Cobra by Stealth Cut 40 Plasma Cutting Machine operates with a single-phase 230V ±10% input power, ensuring consistent and reliable performance for all your cutting needs.
The Cobra by Stealth Cut 40 Plasma Cutting Machine features a compact design with dimensions of 480 x 210 x 360 mm, making it easy to transport and store without sacrificing performance.
5 YEAR WARRANTY
Features
- Built in compressor
- 5 year warranty
- Quick connect torch
- Pilot arc

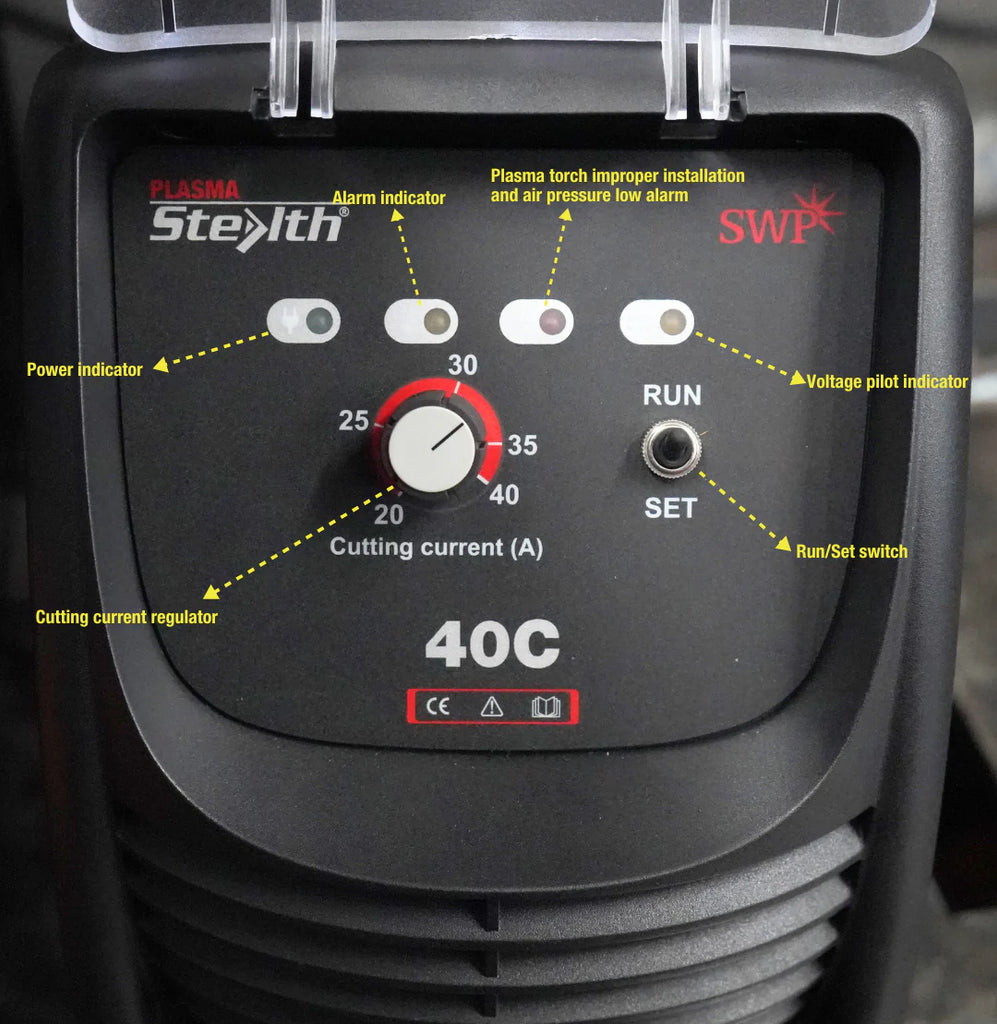

- Protective alarm functions
- EMI filter
- Supplied with the PC7100H torch
Specifications
| Input power (V) | 1-230+-10% | Power frequency (Hz) | 50/60 |
| Rated input current (A) | 31.5 | Rated input power(KW) | 4.7 |
| Adjustment range of current (A) | 20-40 | Max no load voltage (V) | 375 |
| Duty cycle (40°C to 10min) | 40% @40A
60% @35A 100% @ 25A |
Severance cut for carbon steel
@18mm |
|
| Production cut (mm) | Carbon steel @14
Stainless steel @ 14 Aluminium @ 7 Copper @ 5 |
Cooling | Fan assisted |
| Protection class | IP21S | Net weight (kg) | 17.9 |
| Dimensions (mm) | 480 x 210 x 360 | Standards | EN60974-1:2021(LVD)
EN60974-10:2021(EMC) 2019/125/EEC(EER) |
