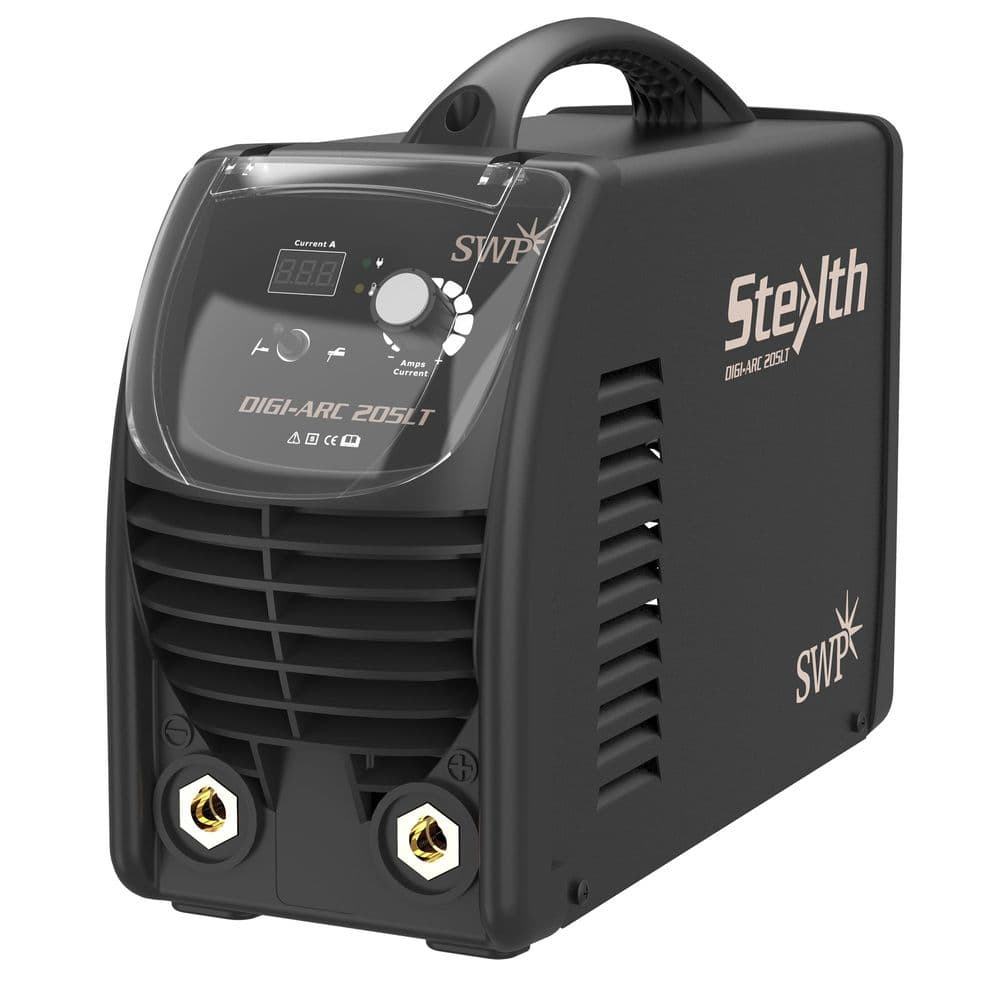

Stealth 9023H Digi-Arc 205 LT 230V, 200Amps

  • Sale
  • Regular price £335.00

Excludes VAT

Stealth Digi-Arc 205LT 230V, 200Amps

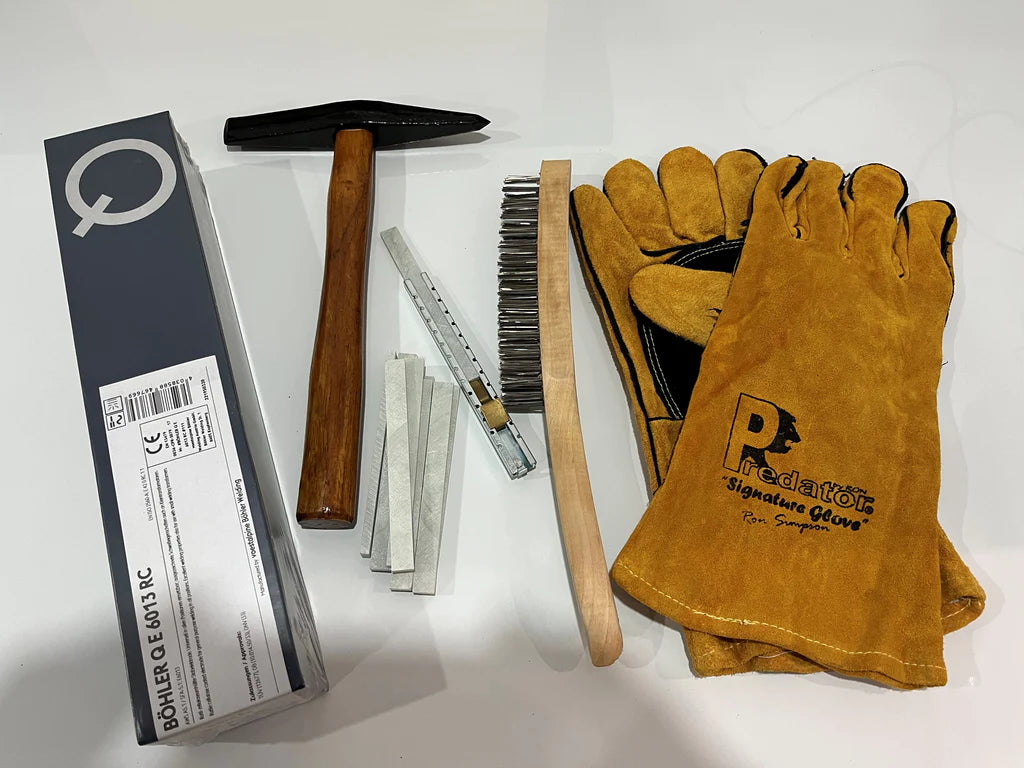

All MMA Packages include MMA Lead, Earth Lead, 5.0Kg Pkt 6013 Electrodes, Wire Brush, Chipping Hammer, Welders H/Duty Gauntlets, French Chalk & Holder.230V 16Amp Plug with 13Amp Adaptor Lead, (415V 16/32Amp, 4/5Pin)

Excellent duty cycle, Digital display, Built-in hot start, anti sticking and arc force, Lift/Tig facility

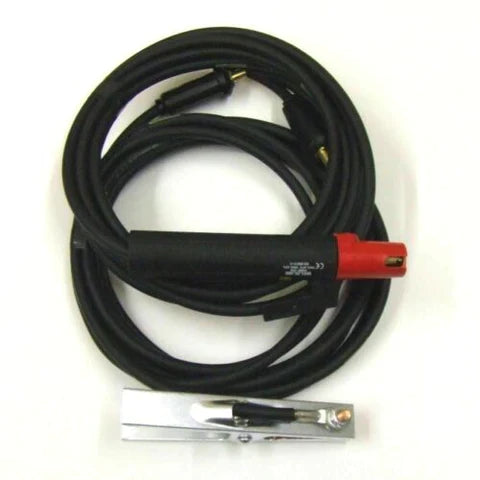

Input power voltage (V) 230±10% Frequency (Hz) 50/60 TIG MMA Effective input current (A) 25 37 Maximum (KVA) 10.8 Current adjustment range (A) 10-200 Maximum no-load voltage (V) 61 Duty cycle (A) (40°C 10 min) 60% @ 200 100% @ 155 Efficiency (%) ≤85 Protection class Ip23 Insulation class H Cooling Air Electrode diameter (mm) 1.6-5.0 Electrode type 6013, 7018, etc Overall dimensions (mm) 392 x 148 x 280 Weight (kg) 6.2 Accessories included 3m earth return lead, 3m electrode lead

Sales Leaflet
