Tecna Universal Spot Welder 230V or 400V
The Tecna Universal Spot Welder is a three phase universal welding station suitable for car bodyshop repairs. Resistance spot welding of sheets, sheet straightening with spotter (nails or washers), localised sheet heating (carbon electrode), screws and riveting and inox sheet-metal spotting are also possible.

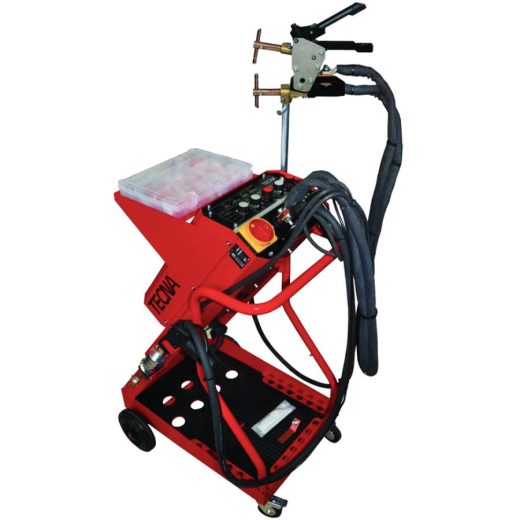

A very popular machine in car body shops, the Tecna Universal spot welder ART 3484 has both a double sided gun and a single sided gun. A wide variety of arms are available for use with the double sided gun. The single sided gun is perfect for dent pulling when used with washers and the slide hammer accessories.
- Three Phase
- 2 Programs
- Double sided & single sided
Features
Universal welding station 8 kVA, hand-operated gun, double program. Simultaneous connection of two tools with automatic recall of the relevant welding program, enabling to save time, avoid errors so to have a simple and safe working process.
Car body shop repair works: resistance spot welding of sheets, sheet straightening with spotter(nails and washers), localised sheets heating (carbon electrode), screws and rivets welding, inox sheet-metals spotting.
Synchronous SCR welding control unit, welding time adjustment in cycles and pulses, welding current adjustment and compensation function.
The welding stations with epoxy-coated transformers, are supplied equipped with:
- Item 3489 – Adjustable height trolley with tray and arms holder.
- Item 3473 – extra-flexible cables L= 1800 mm, 150 mm2.
- Item 5001 – pair of straight arms, L=107 mm.
Number of programs 2
Mains voltage/frequency* 230V / 400V 50Hz
Nominal power at 50% 8 kVA
Maximum welding power 35 kVA
Short circuit secondary current 6.4 kA
Secondary current at 100% 0.8 kA
Delayed fuses 25A
Net weight 70KG
