T-Spot 120 5kVA Digital Multi Function Spotter 400V

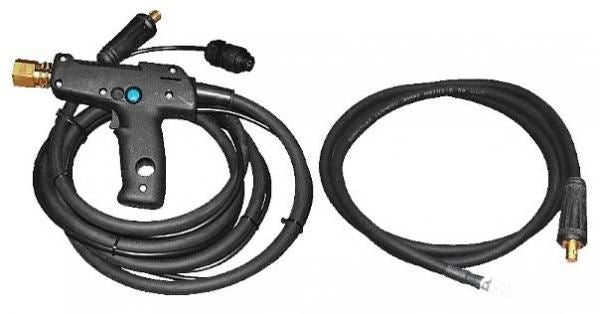

The 240volt T-Spot is designed to repair steel car bodies, with special regards to sheet metal straightening, rivets welding and localized heating with carbon electrode. The selection button on the Multi-function gun remotely allows the programs’ quick selection of pre-set parameters and fine adjustment. The auto-start function allows the welding process to start automatically when the electrode contacts the work sheet or can be controlled via gun trigger if selected.
Technical Data
| Supply Voltage | 230V |
| Mains Frequency | 50 Hz |
| Mains Protection Delayed | 16A |
| Nominal Power 50% | 2.5 kVA |
| Maximum Short Circuit Current | 2.25 kA |
| Secondary No Load Voltage | 8.8V |
