Tecna Series Spot & Projection Welder c/w TE550 (80kVA)

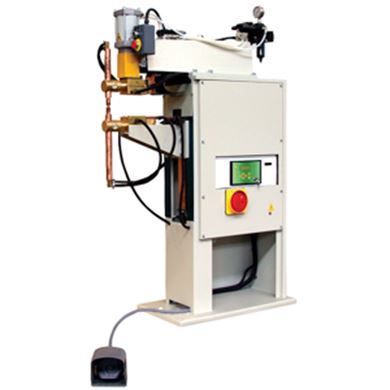

TECNA 8007D Series Spot & Projection Welder c/w TE550 (80kVA)
The TECNA 8007D single-phase AC press / projection-type welder is an excellent choice for stand-alone resistance welding tasks. Coupled with value-added feeding systems, tooling, or part of an integrated robot cell, TECNA press / projection-type welders can provides years of years of consistent, reliable service.
Furthermore, the TECNA 8007D high-performance 80 kVA welder is the perfect pedestal welder for a variety applications, including:
- Nut Welding
- Stud Welding
- Multi-Gun Welding
- Spot Welding
- Projection Welding
- Mid-Frequency Welding
Features
- Air-operated, lube-free cylinder eliminates oil mist in the shop environment.
- Cylinder with chrome plated stem for heavy duty works and long life; adjustable anti-rotation device.
- Lubrication free pneumatic components to eliminates oil mist and to protect the environment.
- Double-stroke cylinder with key control.
- Built-in compressed air filter unit.
- Compressed air disconnecting device.
- Water-cooled transformer, plates, electrode-holders and electrodes.
- Transformer with epoxy resin coated windings.
- Electrodes speed control valves, shock absorber for end of stroke and air discharge silencers assuring the minimum noise.
- Two stage electric foot control for clamping and welding pieces only if correctly positioned.
- Pre-setting for additional double stage electric foot connection for the direct recalling of welding program no.2.
- TE550 constant current control unit.
- Synchronous SCR contractor insulated from cooling water circuit with protection thermostat.
- Standard on all models: two-hand safety control with timer assuring the best safety, and removable key selector. The two-hand control push-buttons are standard on projection models only (they are available on request on spot welder models).
- Emergency push-button to stop the machine immediately.
TECNA 8007D – 80 kVA press / projection-type welder for a variety of applications!
