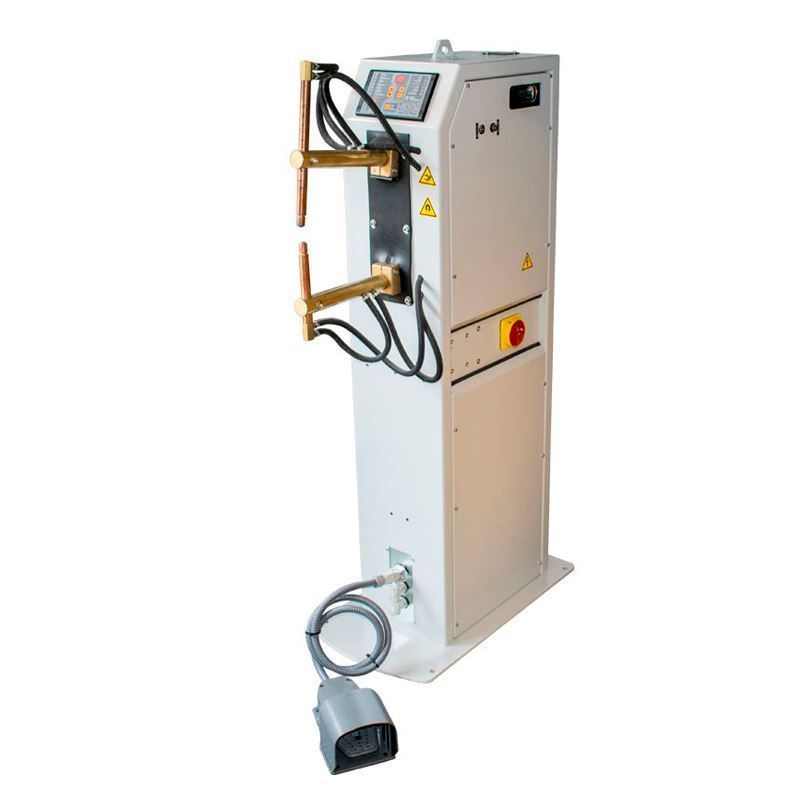

Column Spot Welder 16kVA Pneumatic C/W TE101 Microprocessor Control
Package includes; Column Spot Welder, Reduced Diameter Brass Arm & Stub Electrode, TRFRC-1000 Fluid Re-circulator, Hoses, 5Ltr Recirculating Fluid, & Conducting Grease
The stationary ergonomic frame designed by TECNA helps to facilitate the operator's work. The pneumatic commands and the compressed air pressure gauge have been placed at the top for easier reading and adjustment.
Key Features
- Arms adjustable in length, allowing better working flexibility
- Chrome-copper electrode holders for long life and heavy-duty service, designed for straight and angled fitting
- Adjustable electrode stroke
- Epoxy resin coated transformer
- Water-cooled transformer, arms, and electrodes
- Microprocessor control unit TECNA TE101
- The air operated lubrication free cylinder eliminates oil mist
- Electrode force adjustment with air filter reducer with gauge
- Semi-automatic drainage system
- Electrode speed control valves, shock absorber for cylinder's end of stroke and air discharge silencers
- Two-stage electric foot pedal, that besides its normal use in automatic and single spot mode, allows the operator to bring the pieces together and to weld them only when correctly positioned
- Pre-arrangement for the connection of a second electric two-stage foot pedal
- The addition of the second foot pedal allows the operator to recall two different adjustments of time current. This function is helpful when different kinds of welding are to be performed in the same place
Technical Data
Nominal power @ 50%: 16 kVA
Maximum welding power: 35 kVA
No load secondary voltage: 3.4 V
Maximum short circuit current: 12.5 kVA
Maximum welding current on steel: 10 kA
Thermal current 100%: 3300 A
Supply voltage 50Hz: 400 V
Cables section L=10m: 6mm²
Cables section L=30m: 10mm²
Delayed fuses: 32 A
Net weight (approximately): 133Kg
