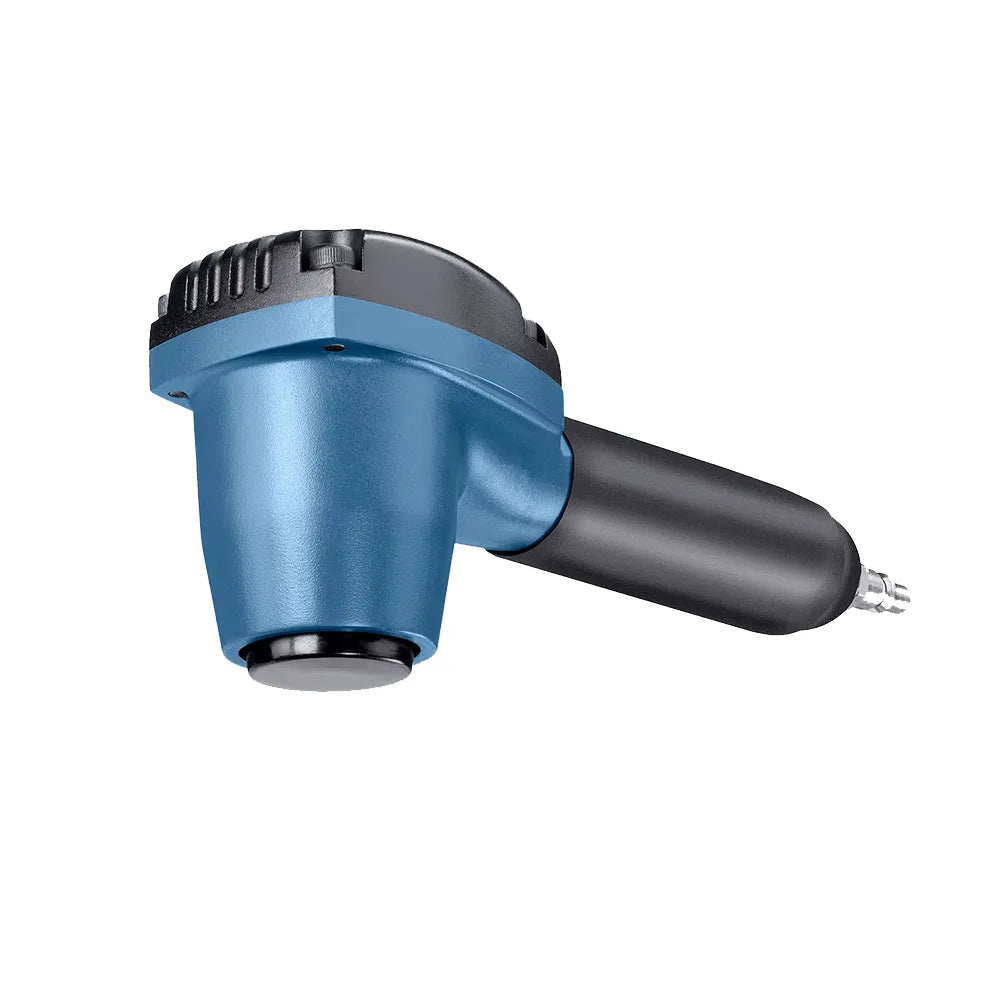

Trumpf 2782209 PS100 TruTool PS Parts Separator

When you cut small parts on 2D laser cutting machines, they are connected to the scrap skeleton with micro- or nano-joints. We offer our pneumatic part separator as an efficient solution to subsequently easily remove the parts from the sheet. Compared to manual sorting, you will be up to 10x faster with this part separator. Stay ahead of the competition: become part of the next generation by removing your valuable parts from scrap skeletons quickly and easily by machine, while others are still hammering.

TruTool PS 100 -The pneumatic part separator separates nano and micro-joint connections in material thicknesses of up to 12 mm, no matter whether steel, chromium steel, aluminum or special steel is being processed, removes parts easily.

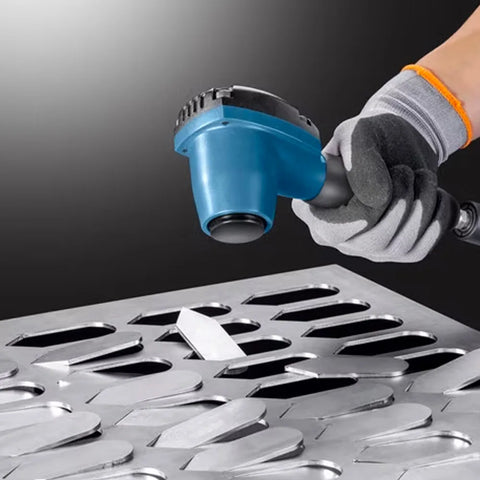

With the pneumatic part separator, the sheet metal composite is vibrated by impact pulses and the parts simply detach from the scrap skeleton. TruTool PS 100 is the perfect solution for separating nanojoint connections – machining is quick and easy. The part separator is also great for microjoint connections.With its compact design, the machine sits comfortably in the hand. The variety of holding positions on the machine head as well as on the handle means you can vary the holding position while you work. The result: an ergonomic and user-friendly mode of operation for efficient and fatigue-free work.

The optimum operating air pressure is 4 bar. The maximum is 6 bar.
An oil feeler should be used in the airline to prolong tool life

It comes with two compressed air connectors, the ISO6150B type is attached to the machine in the box – the 2nd is ARO210
The air hose should be adequate e.g. 10mm diameter

Technical Specification
