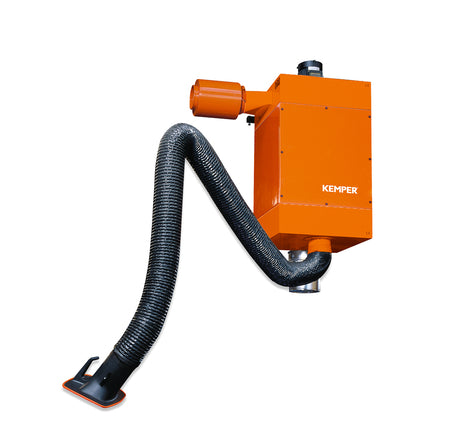

Extraction unit with one exhaust arm for continuous use and cleanable filter for welding smoke
Due to its differential pressure-controlled, automatic filter cleaning system, the stationary cartridge filter for welding fume extraction is suitable for high levels of smoke and dust and non-stop operation with low operating costs. The KemTex® ePTFE membrane filter cartridges for ultra-fine dust particles separate particles even below 0.1 µm. The two-exhaust arm version with integral dampers allows simultaneous or alternating work in two places with adjustable extraction performance.
Applications
- High levels of smoke and particles
- Non-stop operation
Benefits
- High efficiency due to automatic filter cleaning
- Less need to adjust the exhaust arm due to flow-optimised exhaust hood design
- Best health protection for employees by use of KemTex® ePTFE filter cartridges with surface filtration
- Low air consumption due to differential pressure-controlled cleaning
Properties
- 360 degrees rotating exhaust hood with damper
- Automatic filter cleaning, pressure-controlled
- KemTex® ePTFE filter cartridges
- Automatic Start-Stop (optional)
- Lighting in the hood (optional)
- Arm from 5 m with boom
- Available with two arms
- Silencer
- Control box
Accessories
- Automatic start-stop
- Workplace lighting incl. on/off switch at the hood
Variants
- Various arm lengths and versions
- Other voltages
Scope of Supply
- Unit
- Silencer
- Control box
- Exhaust arm with hood
Technical Data
Filter stages-1
Filter method-Cleanable filter
Filter cleaning method-Rotating nozzle
Filter surface-8 m²
Type of filter-Filter cartridge
Filter material-KemTex® ePTFE membrane
Filter efficiency-> 99.9 %
Dust classification-M
Basic data
Extraction capacity-1200 m³/h
Max. fan performance-3000 m³/h
Maximum vacuum-3000 Pa
Dimensions (w x t x h)-655 x 655 x 1355 mm
Weight-146 kg
Motor power-1,5 kW
Power supply-110V,230V,400V
Rated current-3.5 A
Noise level-71 dB(A)
Additional information
Fan type-Radial fan
Compressed air supply-5 - 6 bar
Quantity of extraction arms-1
Exhaust arm type-flexible exhaust arm
Diameter extraction arm-150 mm
Length of exhaust arm-2 m
Compressed air reservoir-25 l
Capacity Dust collection container-11 l
Dimensions
I-400 mm
J-218 mm
K-151 mm
L-158 mm
M-271 mm
