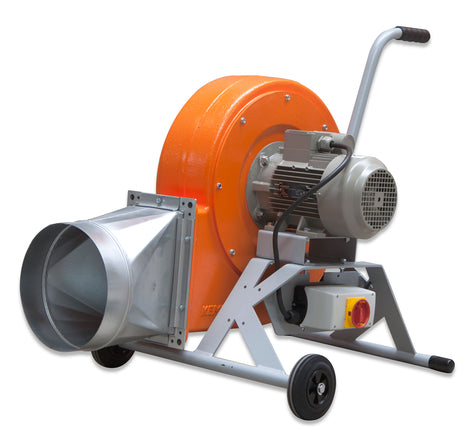

A universal, mobile solution for a variety of ventilation applications where filtering the air is not important. It is extremely quiet and is suitable for the extraction of e.g. welding fumes or car exhaust gases as well as for the fresh air ventilation of containers, pipes or manholes.
Benefits
- High flexibility since blower can be used both for ventilation and extraction
- Very quiet and spark-proof due to cast silumin housing
- Suitable for use on construction sites due to robust manufacture
Properties
- Housing and fan of cast silumin
- Portable and mobile
Applications
- High levels of smoke and particles
- Non-stop operation
- For ventilation and extraction
Basic data
| Extraction capacity | 3000 m³/h |
| Max. fan performance | 3000 m³/h |
| Dimensions (w x t x h) | 600 x 790 x 750 mm |
| Weight | 55 kg |
| Motor power | 1,5 kW |
| Power supply | 3 x 400 V / 50 Hz - 1 x 230 V / 50Hz |
| Rated current | 3 A |
| Noise level | 69 dB(A) |
Additional information
| Fan type | Radial fan |
